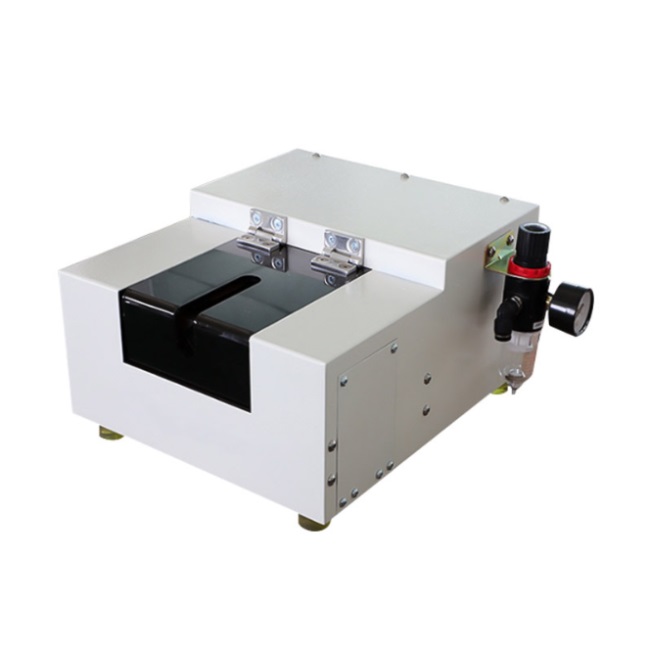

Automatic induction wire stripping machine is multi wire automatic induction wire stripping machine , which is equipped with inductive start so no foot switch is required . different wire diameters can automatically adapt to the blade value and can process different wire diameter without any adjustment . for example , if the diameter of the five core wire of a sheathed wire are different , but the stripping length is the same , then there is no need to make any adjustments , just put the five different core wire diameter into the machine and strip the wire in order . the machine can automatically adapt to the diameter of the wire and the cutting depth , which greatly saves working efficiency .
1.Mainly used to strip different sized cables, can strip inner core wires conveniently and rapidly.
2.Driven by cylinder, smart and portable.
3.Adopts imported pneumatic components, high precision, long life.
4.No need to change blades for stripping wires of different diameters.
|
Model |
SA-3500H |
|
Wire range |
AWG#(2-14)(2.5-35mm²) |
|
Applicable wires |
inner core wires of sheathed cable, inner core wires of power cable, single wire |
|
Stripping length |
2-30mm |
|
Stroke |
30mm |
|
Air supply |
0.5Mpa-0.8Mpa |
|
Weight |
15kg |
|
Dimension |
360*290*180mm |
Our Company
SUZHOU SANAO ELECTRONICS CO., LTD is a professional wire processing machine manufacturer, based on sales innovation and service. As a professional company, we have a large number of professional and technical personnel, strong after-sales services and first-class precision machining technology. Our products are widely used in electronic industry, auto industry, cabinet industry, power industry and aerospace industry.Our company provides you with products and services of good quality, high efficiency and integrity.Our commitment: with the best price and the most dedicated service and tireless efforts to make customers improve productivity and meet customers' needs.
Our mission: for the interests of customers, we strive to innovate and create the world's most innovative products.Our philosophy: honest, customers-centric, market-oriented, technology-based, quality assurance.Our service: 24-hour hotline services.You are welcome to call us. The company has passed ISO9001 quality management system certification , and has been recognized as municipal enterprise engineering technology center , municipal science and technology enterprise , and national high-tech enterprise .
FAQQ1: Are you a trading company or a manufactory?
A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !
Q2: What’s your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: The delivet time is based on the exact machine you confirmed.
Q4: How can I install my machine when it arrives?
A4: All machine will be install and debug well before delivery . English Manual and operate video will be together send with machine . you can directly use when you got our machine . 24 hours online if you have any questions
Q5: How about the spare parts?
A5: After we deal down all the things , we will offer you a spare parts list for your reference.
