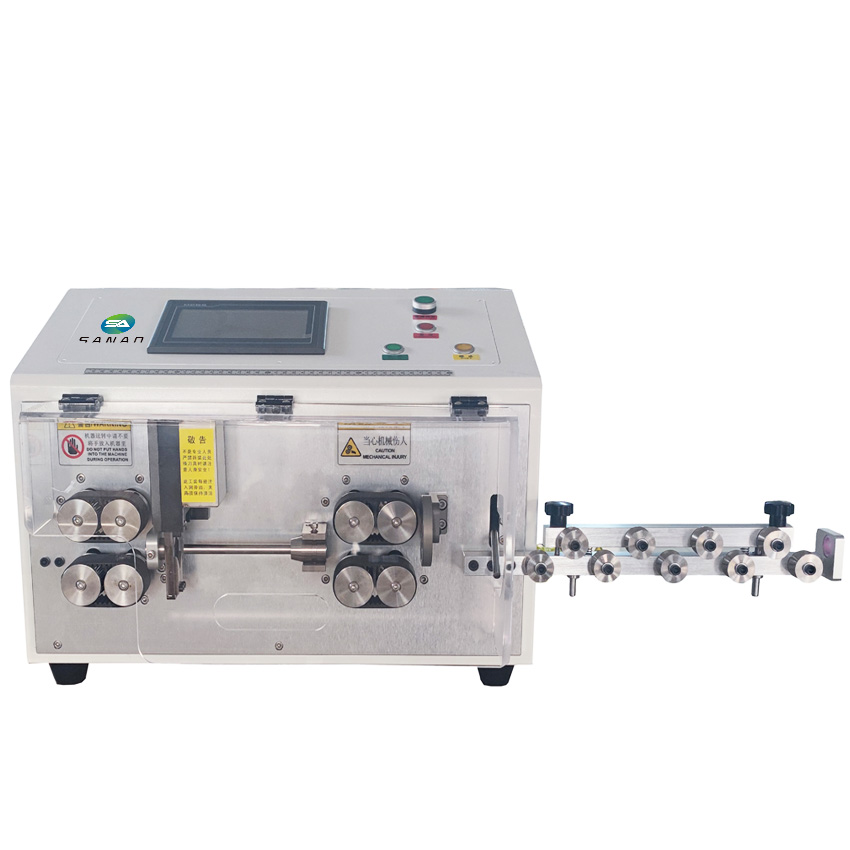

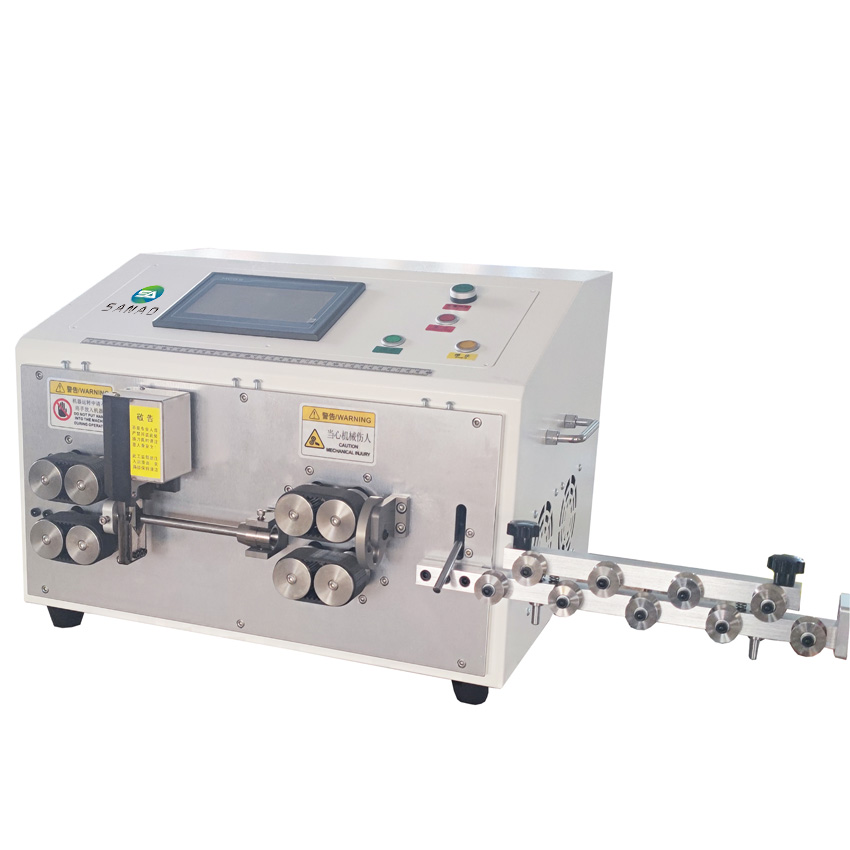

SA-CW3500 Processing wire range: Max.35mm2, BVR/BV Hard wire automatic cutting and stripping machine,The belt feeding system can ensure that the surface of the wire is undamaged,Color touch screen operation interface , parameter setting is intuitive and easy to understand,Total have 100 different program.
Advantage
1. 8-roller driving with belts feeding. Strong feeding force, highly precise feed length as per program set with 0.1 mm increment and no scratch mark on wire insulation/jacket guarantee, which is widely applied in defense industry, information and communication technology (ICT) industry etc.
2. Programmable and intuitive roller gap and roller pressure setup on PLC touch screen, no need manual adjustment.
3. Longer left side stripping length (max.250 mm), thanks to the auto-open function of left roller set.
4. Memory capacity of 100 programs with specific 3-layer stripping program for shield cable.
5. Optional middle strip module, slit module.
6. Optional pre-feeder, stacker and coiler.
|
Model |
SA-CW3500 |
|
Wire material |
Wide range of industrial wires |
|
Conductor cross-section |
1.5 - 35 mm² |
|
Cutting length |
1 - 100,000 mm |
|
Cutting length tolerance |
< 0.002 * L |
|
Stripping length (side I) |
0 - 250 mm |
|
Stripping length (side II) |
0 - 120 mm |
|
Slitting function |
Optional |
|
Maximum guide tube diameter |
16 mm |
|
Driving mode |
8-roller with belts driving |
|
Display mode |
7-inch touch screen |
|
Memory capacity |
100 materials |
|
Blade material |
High speed steel |
|
Productivity |
1500 - 2000 pcs./h |
|
Power supply |
110, 220 V (50 - 60 Hz) |
|
Power |
650 W |
|
Weight |
70 kg |
|
Dimension |
560 * 520 * 450 mm |
