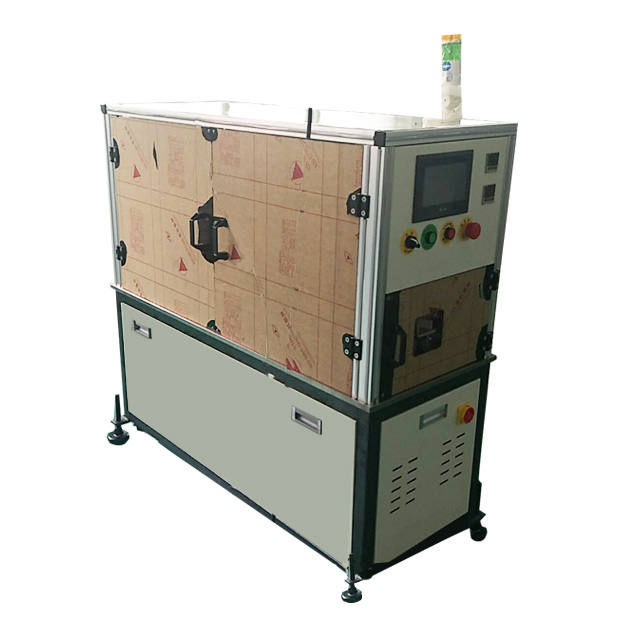

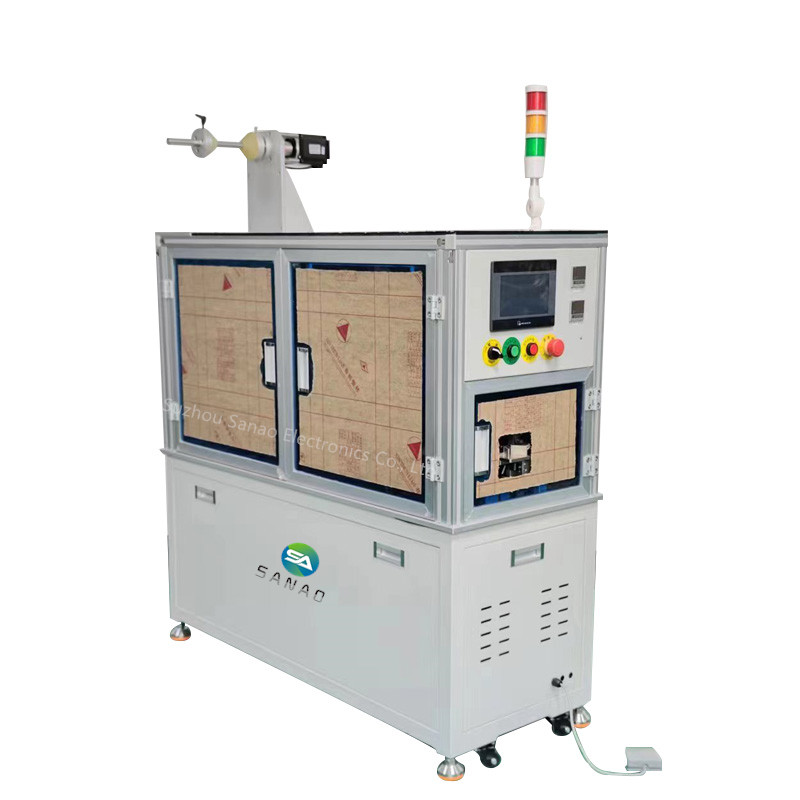

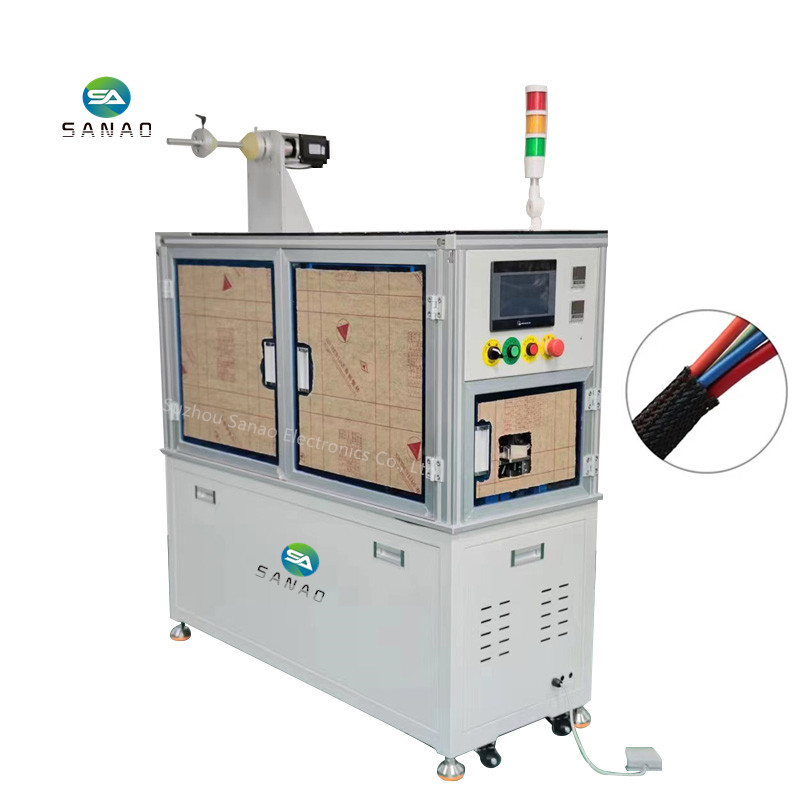

SA-SZ1500 This is an automatic braided cable sleeve cutting and inserting machine, it adopts hot blade to cut the PET braided sleeve, so the cutting edge can be heat sealed while cutting. The finished sleeve can be automatically put on the wire, it greatly simplifies the wire harness threading process and saves a lot of labor.
This machine is driven by servo motors, PLC control system with color touch screen operation interface makes the operation very easy, the sleeve cutting length can be freely set on the display.
Different diameters of braided sleeves need to be replaced with Conduit, we can customize conduit according to your samples.Standard conduit diameters range from 6 to 25mm. Advantages:
1. The use of hot cutting, woven mesh pipe sealing good.
2. Fast speed, good threading effect, simple operation, accurate cutting

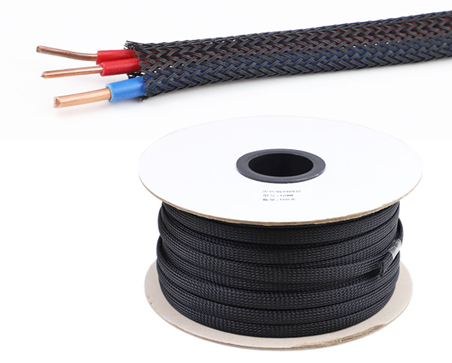

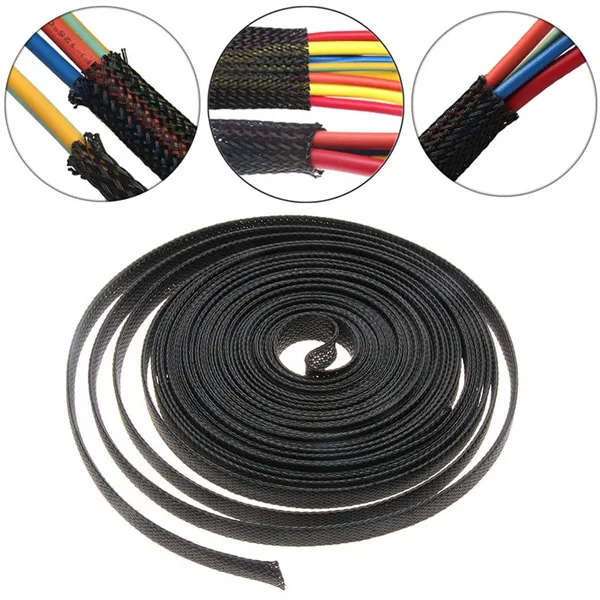

3. Suitable for winding different types of braided sleeving onto wire harnesses and cables
4. Composed of micro-adjustable photoelectric control system and PLC control system. Cutting length can be set and cutting performance is stable.
5. Applicable products: automotive wire harness, electronic wire, medical wire, metal, wire and cable, etc.
6.Applicable industries: wire harness processing factory, electronic factory, electrical appliances, hardware, etc
Model
SA-SZ1500
SA-SZ2200
SA-SZ4000
Name
braided cable sleeve cutting and inserting machine
braided cable sleeve cutting and inserting machine
braided cable sleeve cutting and inserting machine
Applicable conduit range
Different diameters of braided sleeves need to be replaced with Conduit applicable Conduit range: diameter 6-25mm
Different diameters of braided sleeves need to be replaced with Conduit applicable Conduit range: diameter 6-25mm
Different diameters of braided sleeves need to be replaced with Conduit applicable Conduit range: diameter 6-25mm
Braided Sleeve cutting precision
±3MM
±3MM
±3MM
Insert sleeve length
100-1400MM ( Depend on sleeve material )
100-2200MM (( Depend on sleeve material )
100-4000MM ( Depend on sleeve material )
Machine size
500WX1350LX1400H (mm)
500WX1800LX1400H (mm)
500WX2400LX1400H (mm)
Speed of penetrating network management
600PCS/ hours (depending on size and manual speed)
600PCS/ hours (depending on size and manual speed)
600PCS/ hours (depending on size and manual speed)
source
Single phase AC 220V/50HZ
Single phase AC 220V/50HZ
Single phase AC 220V/50HZ
energy consumption
400W/Hr
400W/Hr
400W/Hr
Operating ambient temperature
-5 ℃ ~ 40 ℃ phase
-5 ℃ ~ 40 ℃ phase
-5 ℃ ~ 40 ℃ phase
relative humidity
(40~90)%RH
(40~90)%RH
(40~90)%RH
