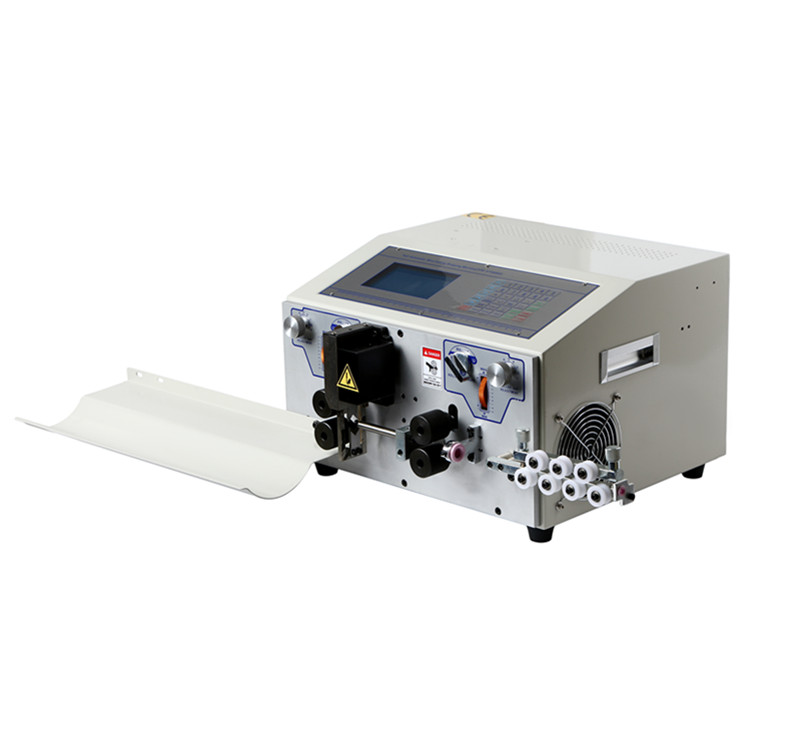

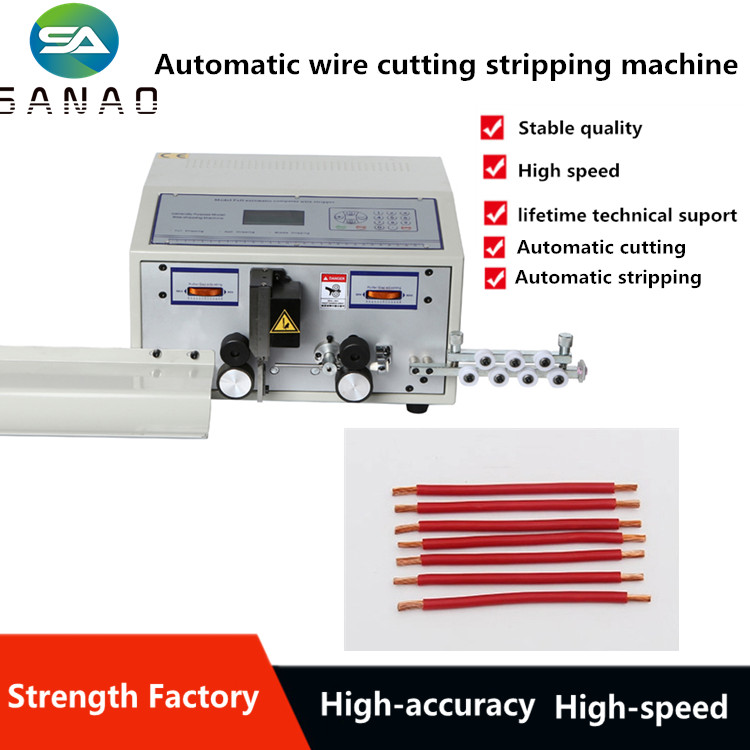

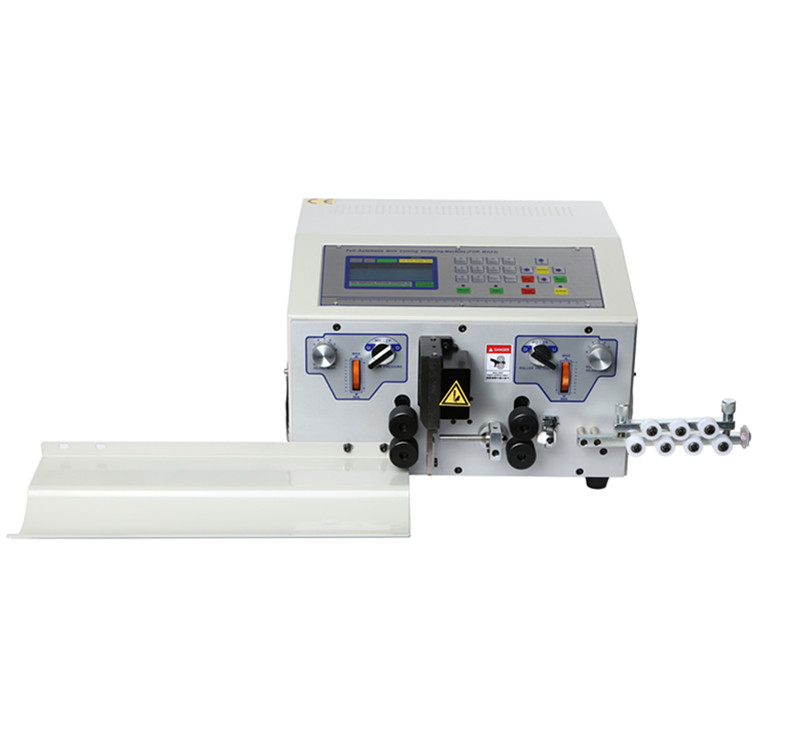

BV single wire cutting and stripping equipment
Processing wire range: 0.2-10mm²,Full automatic stripping and cutting single wire at the same time ,Widely used in wire harness processing industry for automotive electrical appliances, instrumentation,lamps, household appliances, It’s Greatly Improved stripping speed and save labour cost.
Introduction:
1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.
2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc
3.Easy to operate program with English display , stable quality with 1 year warranty and low maintenance,
4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.
5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.
|
Model |
SA-208E |
SA-208JE |
SA--208JE2 |
|
Available Wire Size |
AWG8 - AWG32 |
AWG8 - AWG32 |
AWG8 - AWG32 |
|
Conductor Cross-Section |
0.1-8mm² |
0.1-8mm² |
0.2-10mm² |
|
Cutting Length |
1-9999mm |
1-9999mm |
1-9999mm |
|
Stripping Length |
Head length : 0-35mm Tail length : 0-15mm |
Head length : 0-50mm Tail length : 0-50mm
|
Head length : 0-50mm Tail length : 0-50mm |
|
Intermediate Stripping |
Max 11 sections |
Max 11 sections |
Max 16 sections |
|
Conduit Diameter |
Φ10mm |
Φ10mm |
Φ13mm |
|
Cutting Length Tolerances |
≤ (0.002*L)mm |
±(0.002*L)mm |
±(0.0001*L)mm |
|
Production Rate |
L=100mm, |
L=100mm, |
L=100mm, |
|
Display Screen |
Chinese / English LCD Screen |
||
|
Drive Method |
4 wheels drive |
||
|
Power Supply |
110/220VAC, 50/60Hz |
||
|
Power |
300W |
300W |
500W |
|
Dimensions |
53*51*37cm |
53*51*37cm |
54*53*41cm |
