Automatic tube cut machine

55MM Automatic PA PP PE Flexible Corrugated Pipe cutting equipment

55MM Automatic PA PP PE Flexible Corrugated Pipe cutting equipment

SA-BW32

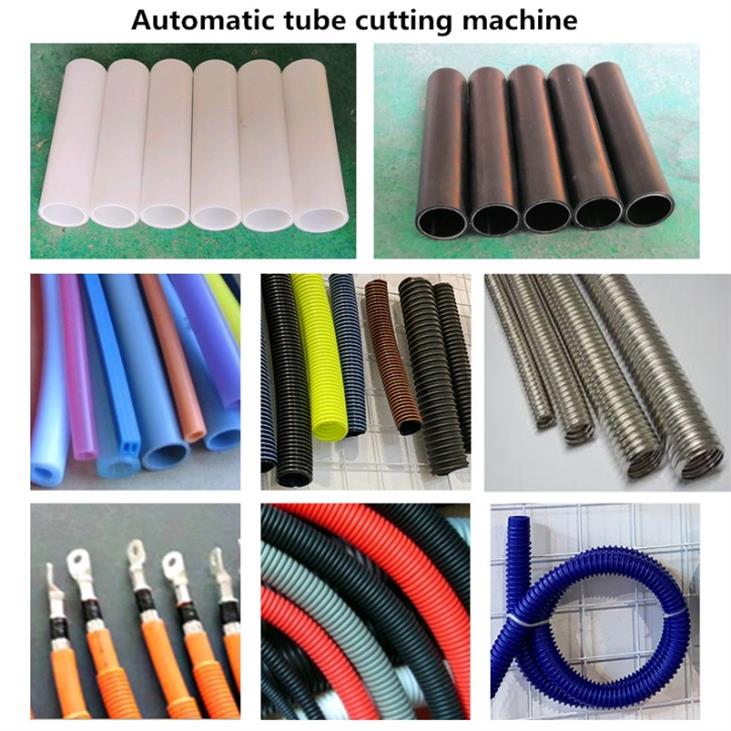

Description: High precision corrugated tube cutting machine, It’s popular with customer because of perfect cutting effect and stable quality,It is widely used for cutting shield hose, steel hose, metal hose, corrugated hose , plastic hose，PA PP PE Flexible Corrugated Pipe.
INQUIRY EMAIL

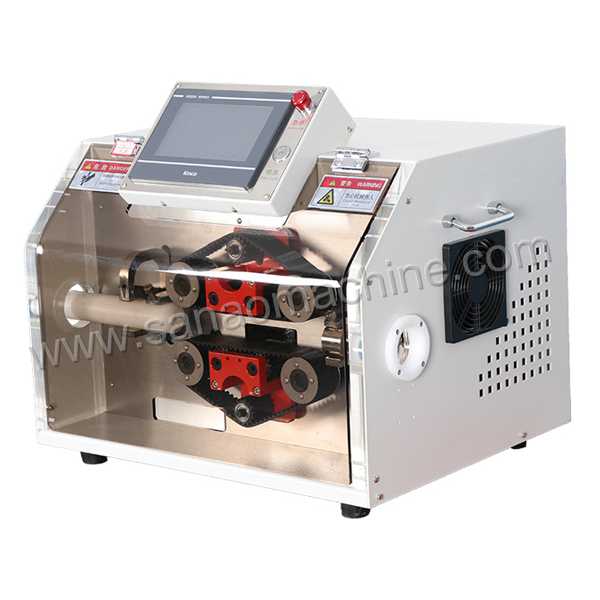

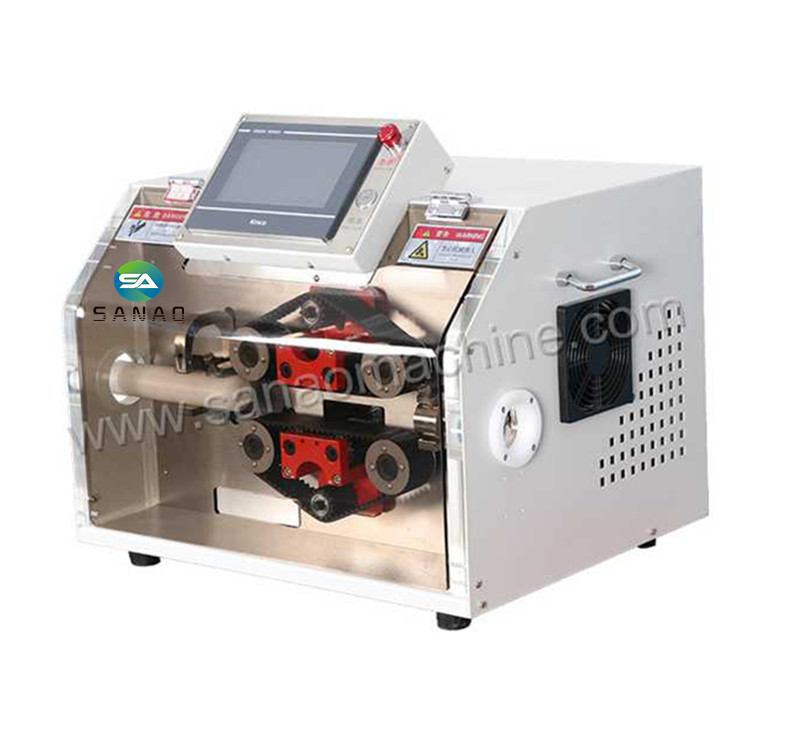

Automatic Corrugated Tube Cutting Machine

High precision corrugated tube cutting machine, It’s popular with customer because of perfect cutting effect and stable quality,It is widely used for cutting shield hose, steel hose, metal hose, corrugated hose , plastic hose，PA PP PE Flexible Corrugated Pipe.

Features:

1.Specially designed for the corrugated pipe processing of the automotive wire harness industry, high-precision PLC control, easy to understand.

2.Can be used for round plastic round tube, bellows cutting, high processing efficiency, stable and reliable.

3.Feeding with stepper motor, it has the characteristics of stable feeding and accurate length. The circuit uses integrated circuits for stable control and simple maintenance.

4.It's widely used in Highways,Bridges,Railways, Lightrail,Car, Transportation,Electrical,Monitoring equipment,Underground cable protection,Connect machine controls,All area of protection for insulated electrical cables and wires,ect.

Model	SA-BW60	SA-BW32
Power	220V 50-60HZ	220V 50-60HZ
Rated Power	500W	500W
Cutting diameter	ø5-55mm	ø5-32mm
Cutting tolerance	±0.5% cutting off length	±0.5% cutting off length
Cutting speed	10-60 pcs/min (depending on the length)	10-60 pcs/min (depending on the length)
Dimension	85 x 70 x 68cm (L x W x H)	85 x 70 x 68cm (L x W x H)
Weight	96KG	96KG
