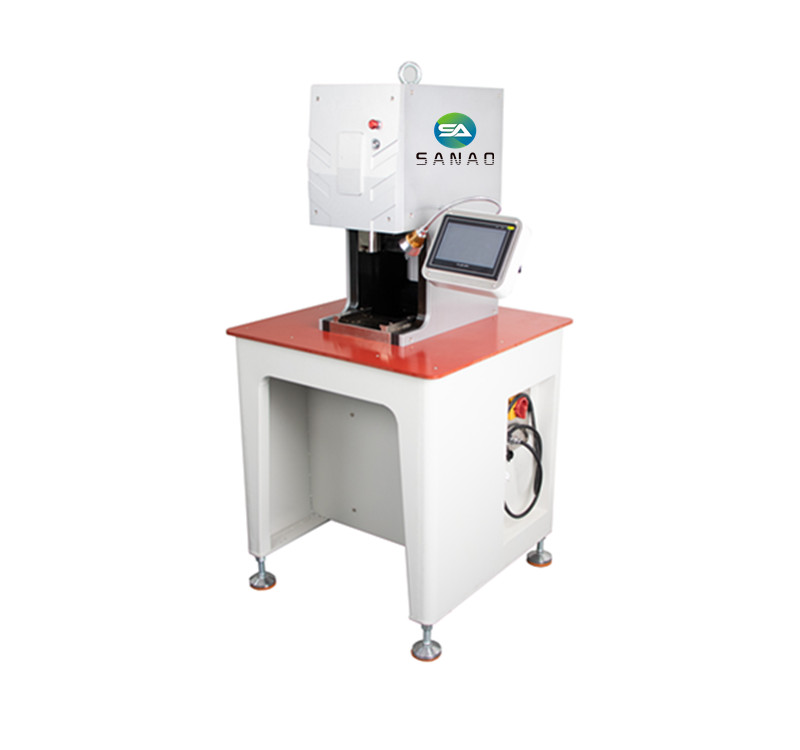

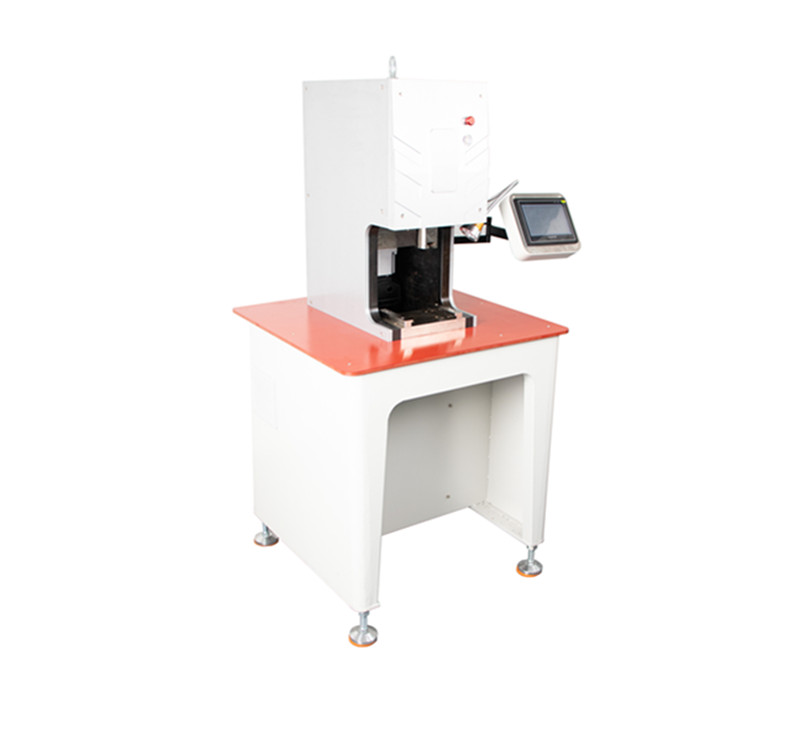

This series of machines are mainly used for crimping of large square wire terminals. The working principle of the servo crimping machine is driven by ac servo motor and output force through high precision ball screw, which implements pressure assembly and pressure displacement detection functions.
Good for large square tubular terminal crimping and non-standard ones
1. Industrial grade control chip cooperates with the high precision servo drive to make the machine run stable
2. PLC control system can instantaneously change the crimping range for different terminals
3. No need to change the crimping applicator for different sizes terminals

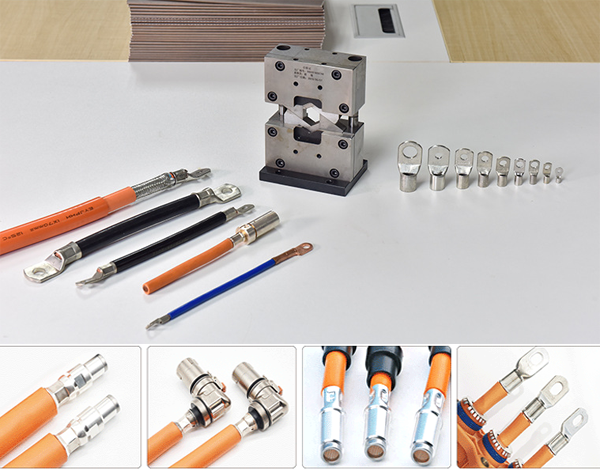

4. Support hexagonal, quadrilateral and M-shape crimping
5. The position can be adjusted for different square wire
6. Have desk type and floor standing type for your choice
Model
SA-H15T
SA-H20T
SA-H30T
Cable range
Min about 2.5mm²， Max 75mm²
Min about 2.5mm²，Max 120mm²
Min about 2.5mm²，Max 240mm²
Crimping Force
15T
20T
30T
Stroke
60mm
Crimping Tolerance
±0.03mm
Speed
10-30 pcs/min
Driving Mode
Ball Screw
Control System
Motion Control Board + Touch Screen Control
Reducer
Planet Reducer
Adaptive Mold
Hexagon Mold(Mold Exchange-Free), M-type,OPT, Quadrangle Mold
Power Source
220V 50-60Hz
Motor Power
2KW Servo Motor
2KW Servo Motor
4.5KW Servo Motor
Machine Size
74*74*150cm
74*74*150cm
74*74*150cm
Machine Weight
430kgs
450kgs
500kgs
