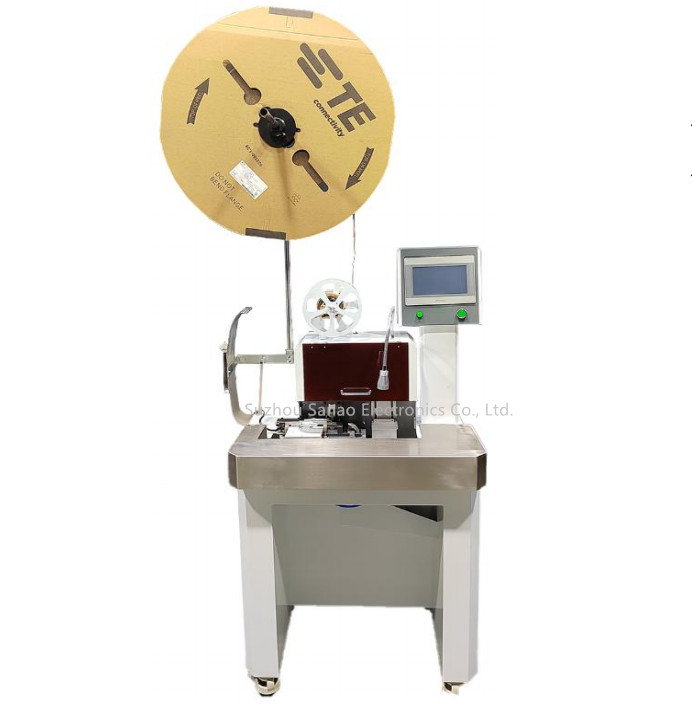

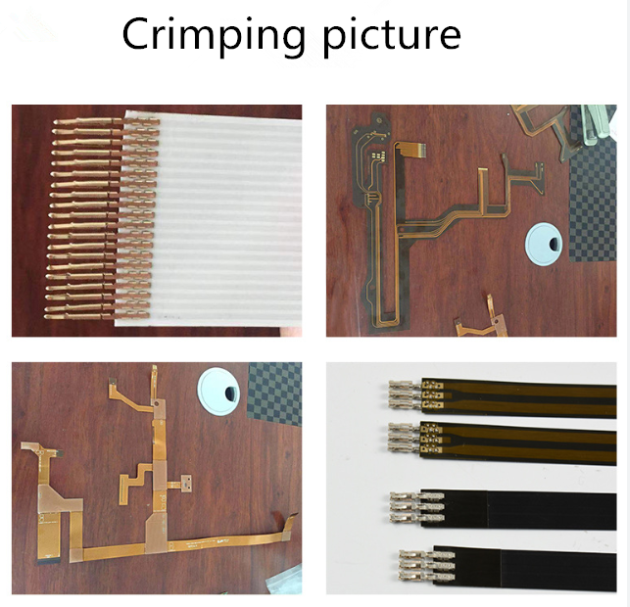

This is a membrane switch panel ffc flat cable crimping machine,Color touch screen operation interface, the program is powerful, the crimping position of each point can be independently set in the program XY coordinates. Even if the crimping points of the ffc wire are not in a straight line, the crimping can be completed at one time, and the skip crimping function is also supported, such as skipping certain positions and not crimping terminals. One machine can process a variety of different products. When replacing the terminal, you only need to replace the corresponding crimping applicator, The applicator adopts a bayonet design to support quick replacement.
|
Model |
SA-FFC15T |
|
Crimping force |
1.5T ( 2.0T ) |
|
Applicable wire |
FFC flat cable, membrane switch flat cable |
|
Crimp stroke |
10mm |
|
Flat cable maximum width |
80mm |
|
Max.crimping pin |
50PIN ( Can be customised ) |
|
Air pressure |
0.4~0.6Mpa |
|
Operation interface |
7-inch color touch screen |
|
Net weight |
115kg |
|
Dimensions |
660*490*1340mm |
|
Optional configuration |
crimping force monitor, visual inspection system |
