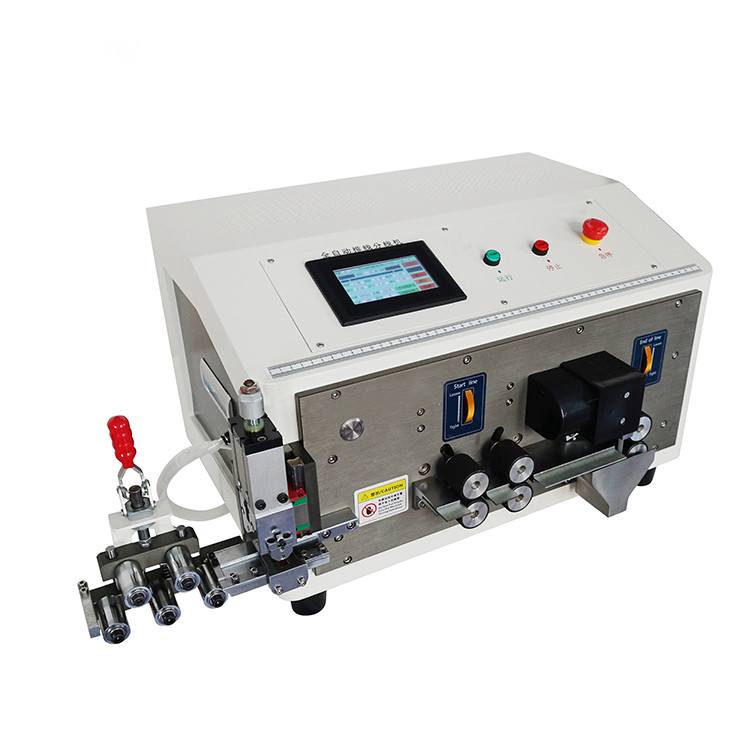

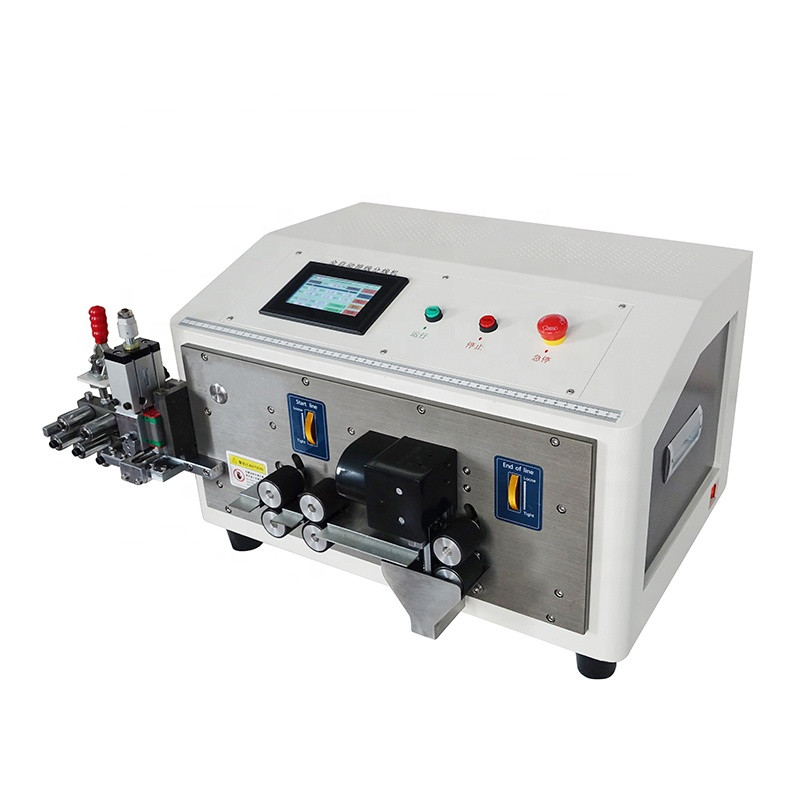

wire range: 2-12 PIN ,Full automatic stripping and cutting single wire at the same time ,Widely used in wire harness processing industry, It’s Greatly Improved stripping speed and save labour cost.
Introduction:
1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.
2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc
3.Easy to operate program with English display , stable quality with 1 year warranty and low maintenance,
4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.
5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.
|
Model |
SA-9120 |
|
Function |
Wire cutting, double-end stripping,splitting |
|
Wire range |
2p-12p |
|
Stripping length |
Stripping head:0.1-30mm stripping tail: 0.1-30mm |
|
Stripping accuracy |
Silent hybrid stepper motor 0.01mm |
|
Special products |
can be customized |
|
Capacity |
1000-2000/h |
|
Blade material |
Imported tungsten steel |
|
Power |
AC110V/220V 50/60HZ |
|
Body size |
470mm*450mm*350mm |
|
Body weight |
46.7kg |
|
Remark function |
Automatic entry / exit, timing start, jog adjustment |
