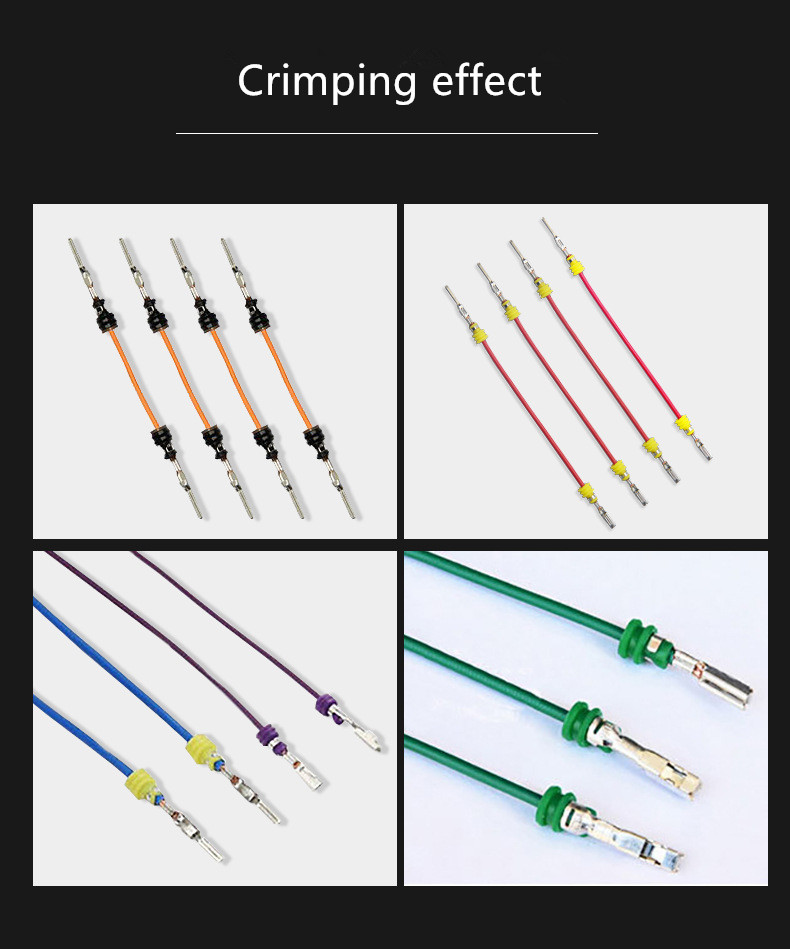

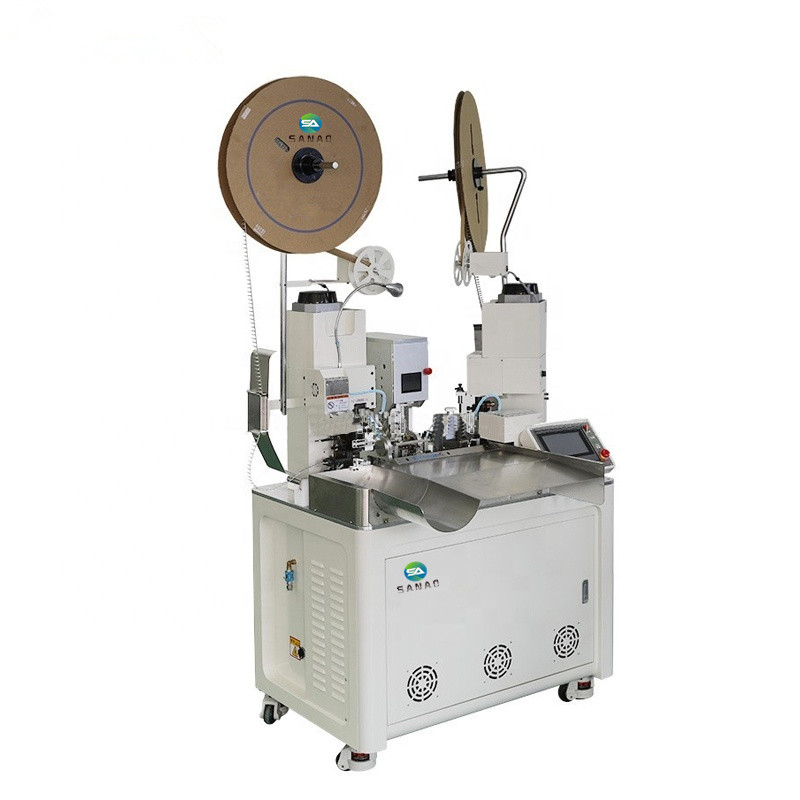

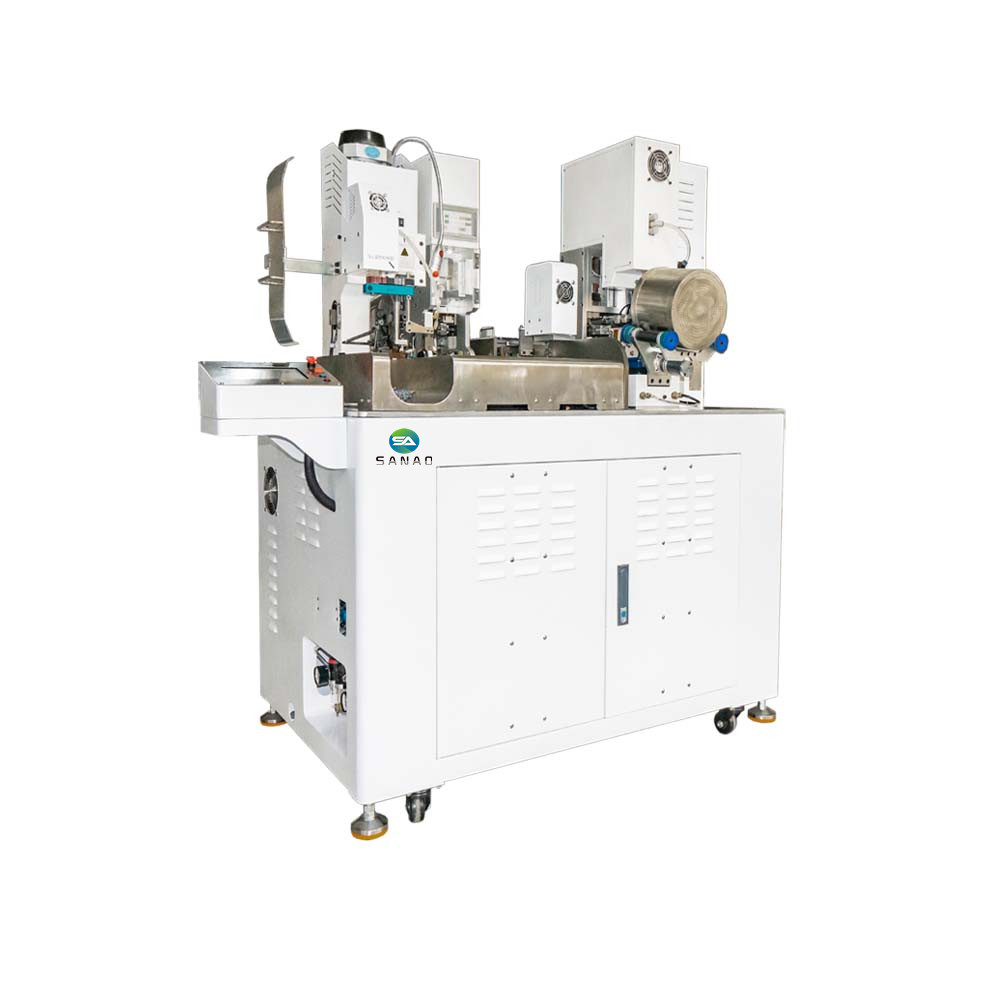

SA-FS2500 is Design for Full Automatic Wire Seal Insertion Machine , One end crimping terminal , the other end seal insert and terminal crimping . The machine adopts "seal insert first and then stripping”, Avoid conductor loose . Let The machine works more stably and efficiently.
Advantage :
1.English touch screen : Easy to operate , Directly setting stripping length and cutting length .
2. If cutting length ≥800mm, Suggest match one conveyor belt to collect wire .
3. It's Suitable for both OTP horizontal mould and OPT and it can change to use quickly
4. The machine adopts "seal insert first and then stripping”, Avoid conductor loose.
|
Model |
SA-FS2500-1 |
SA-FS2500-2 |
|
Power supply |
AC220V/50/60HZ (110V/60Hz optional) |
AC220V/50/60HZ (110V/60Hz optional) |
|
Functions |
2 end crimping + one end seal |
2 end crimping + 2 end seal |
|
Capacity |
3000 pieces/hour（Length within 100mm） |
3000 pieces/hour（Length within 100mm） |
|
Wire size |
AWG#28-AWG#16 |
AWG#28-AWG#16 |
|
Cut length |
50-9999 mm |
50-9999 mm |
|
Cut tolerance |
Range of change: within 1mm + cut lengthx0.2% |
Range of change: within 1mm + cut lengthx0.2% |
|
Strip length |
1.5-10 mm |
1.5-10 mm |
|
Crimp force |
2.0/3.0 Ton |
2.0/3.0 Ton |
|
Air pressure |
4-6kgf (use clean dry air) |
4-6kgf (use clean dry air) |
|
Testing device |
Whether lack of wire,whether lack of terminal crimping, wire plug seal detect,low pressure |
Whether lack of wire,whether lack of terminal crimping, wire plug seal detect,low pressure |
|
Machine dimension |
800Wx1000Lx1500H mm |
800Wx1000Lx1500H mm |
|
Net weight |
About 440 kg |
About 440 kg |
