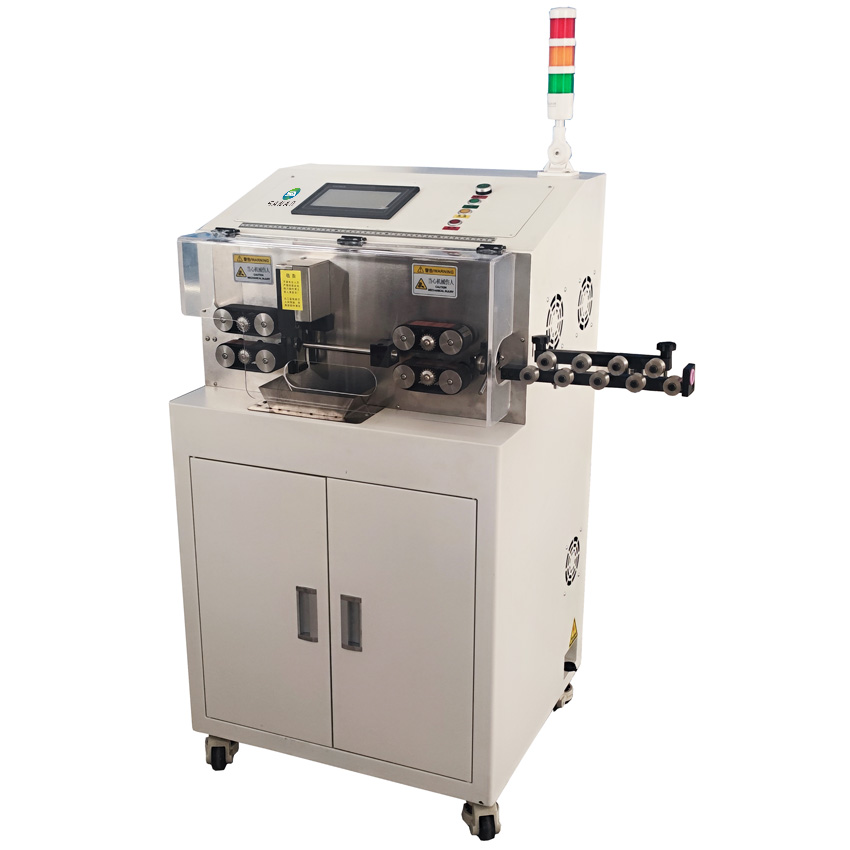

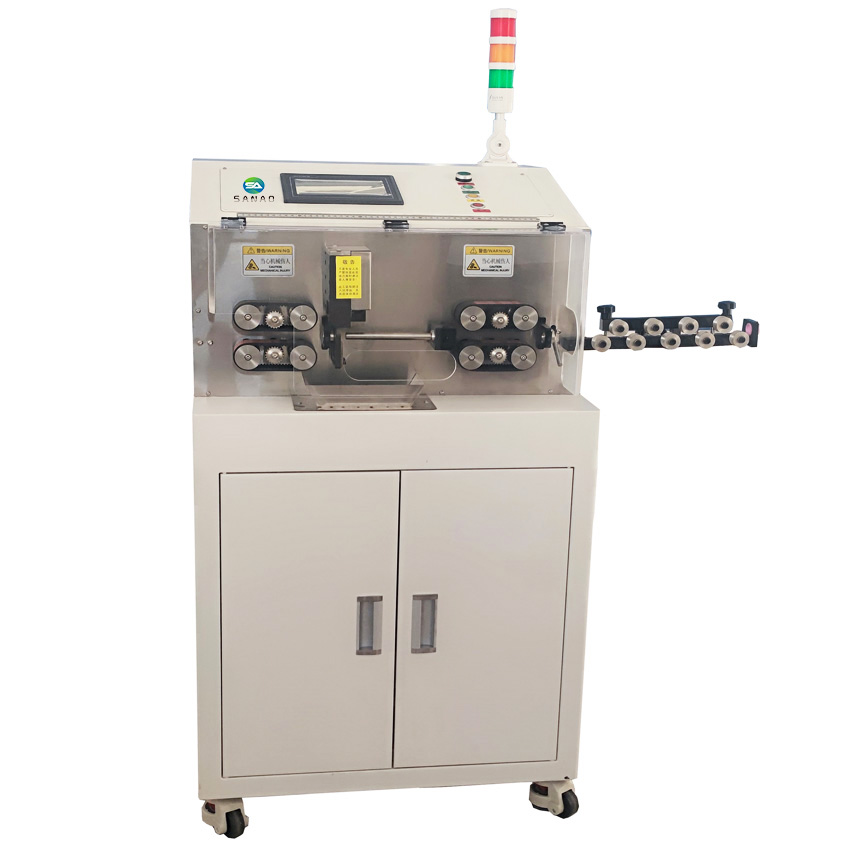

SA-CW500 , Suitable for 1.5mm2-50 mm2 , This is a High speed and high-quality wire stripping machine , Total have 3 servo motors driven , The production capacity is twice of Traditional machine ,which have high power and high precision.It's Suitable for large-scale production in factories, saving production costs and improving production speed , The price is also quite favorable, and the manufacturer sells directly. Free contact me if you have any question.
1. 12-roller servo motor driving with belts feeding. Strong feeding force, highly precise feed length as per program set with 0.1 mm increment and no scratch mark on wire insulation/jacket guarantee.
2. Programmable and intuitive roller gap and roller pressure setup on PLC touch screen, no need manual adjustment.
3. Memory capacity of 200 programs with specific 3-layer stripping program for shield cable.
4. Optional middle strip module, slit module.
5. Optional pre-feeder, stacker and coiler.
|
Model |
SA-CW500 |
|
Stripping Function |
Max.3-layer stripping |
|
Conductor cross-section |
1.5 - 50 mm² |
|
Cutting length |
1 - 100,000 mm |
|
Cutting length tolerance |
< 0.002 * L |
|
Stripping length (side I) |
Full strip: 0 - 250 mm |
|
Half strip: no limit |
|
|
Stripping length (side II) |
Full strip: 0 - 150 mm |
|
Half strip: no limit |
|
|
Slitting function |
Optional |
|
Maximum guide tube diameter |
17 mm |
|
Driving mode |
12-roller servo motor driving with belts feeding |
|
Display mode |
7-inch touch screen |
|
Memory capacity |
200 programs |
|
Blade material |
High speed steel |
|
Productivity |
1500 - 2500 pcs./h |
|
Power supply |
110, 220 V (50 - 60 Hz) |
|
Power |
800 W |
|
Weight |
105 kg |
|
Dimension |
650 * 550 * 1100 mm |
