Multi core wire stripping machine

Automatic Power Cable Cutting Stripping Machine

SA-30HYJ

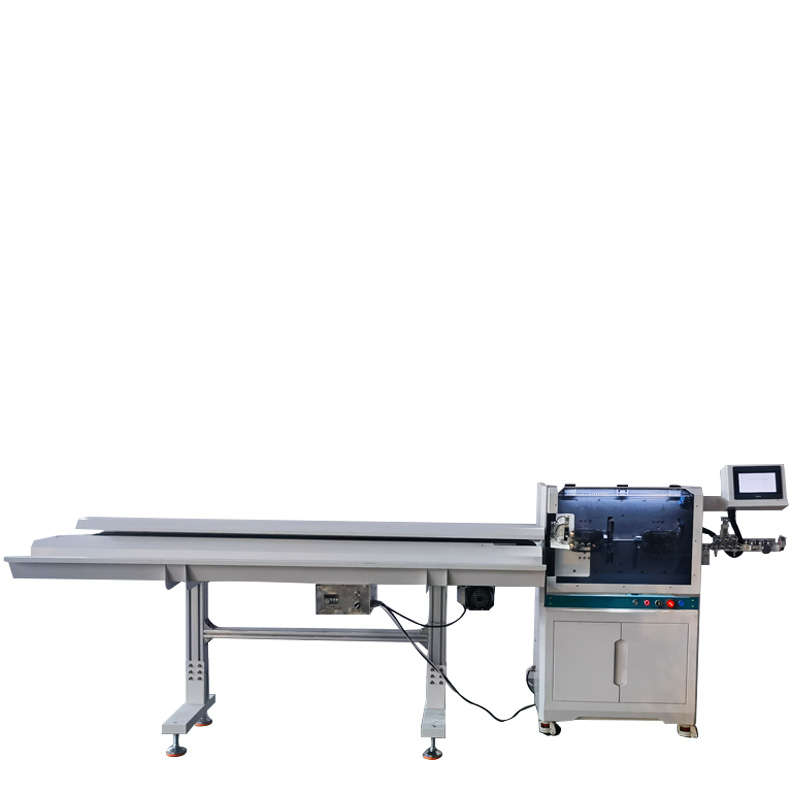

Description: SA-30HYJ is Floor model automatic cutting and stripping machine with manipulator for sheathed cable , Suitable stripping 1-30mm² or outer diameter less 14MM sheathed cable, It's Can strip outer jacket and inner core at the same time, or turn off the inner core stripping function to process the 30mm2 the single wire.
INQUIRY EMAIL

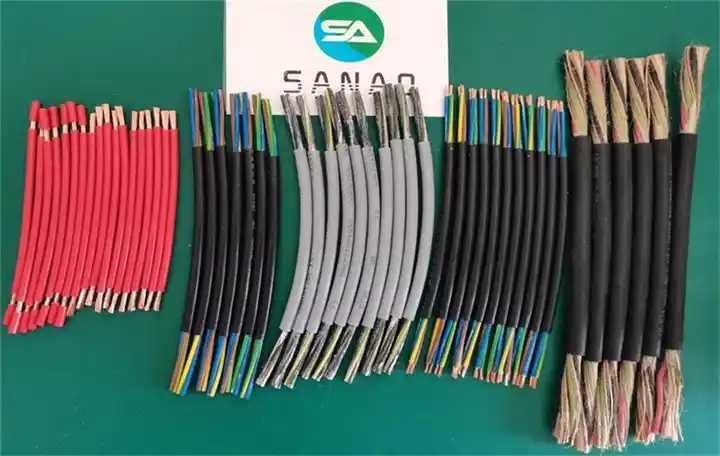

SA-30HYJ is Floor model automatic cutting and stripping machine with manipulator for sheathed cable , Suitable stripping 1-30mm² or outer diameter less 14MM sheathed cable, It's Can strip outer jacket and inner core at the same time, or turn off the inner core stripping function to process the 30mm2 the single wire.

The machine adopts 16 wheels belt feeding, feeding high precision, cutting error is small, the outer skin without embossing marks and scratches, greatly improve product quality, the use of servo knife frame and imported high-speed steel blade, so that the peeling is more accurate, more durable.

7-inch colour English touch screen, easy to understand the operation, 99 kinds of procedures, further simplify the production process, different processing products, only one time to set up, the next time directly click on the corresponding procedures to improve production speed.

The conduit jumps, compared with the traditional machine, the outer skin of the stripping length is longer, the standard stripping length of the tail 240mm, 120mm head stripping length, if there is a special long stripping requirements or in the stripping requirements, we can add additional long stripping function.
Advantage:
1.automatically cable cutting and stripping different wires size,stripping single wire and outer jacket of sheathed cable .
2.Drive mode: 16-wheel drive ,silent hybrid stepper motor, servo tool holder.
5.Belt feeding wires, no embossing and scratches
6.Head stripping: 10-120mm ,Tail stripping: 10-240mm
7.Inner Core Stripping Length：Head 1-50mm; Tail 1-50mm

Model	SA-30HYJ
Conductor Cross-Section	1-30mm² （Or outer diameter less 14MM sheathed cable )
Cutting Length	1-99999mm
Cutting Length Tolerances	≤(0.002*L) mm
Jacket Stripping Length	Head 10-120mm; Tail 10-240mm
Inner Core Stripping Length	Head 1-50mm; Tail 1-50mm
Conduit Diameter	Φ16mm
Production Rate	Single wire :2300pcs/h Sheath wire :800pcs/h(base on wire and cutting length)
Display Screen	7 inch touch screen
Drive Method	16 wheels drive
Wire Feed Method	Belt feeding wire, no indentation on cable
