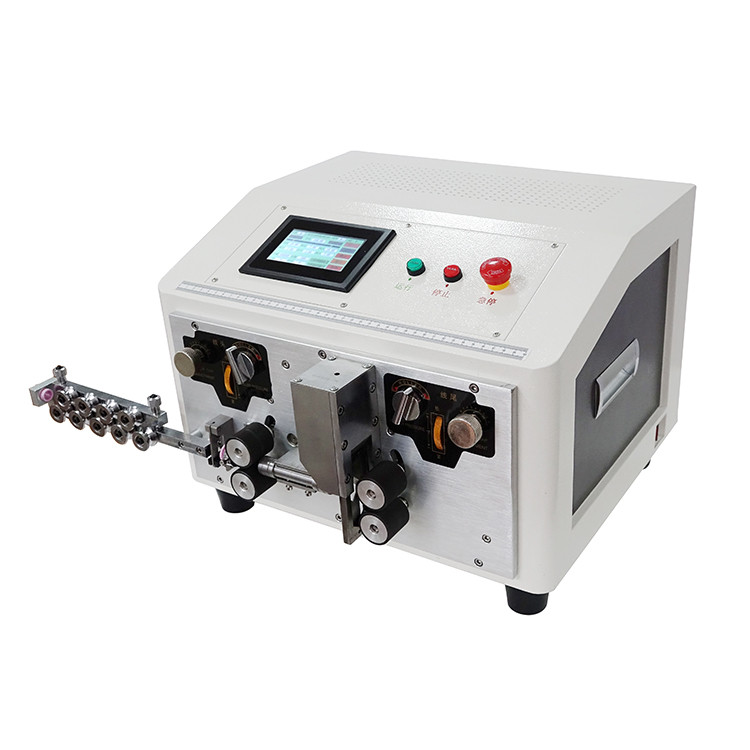

Processing wire range: Max.10mm ,full automatic stripping and cutting outer jacketed of sheathed cable , This model can’t stripping inner core , Flat and round sheathed wire all can process .It’s Greatly Improved stripping speed and save labour cost. Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy.
Introduction:
1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.
2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc
3.Easy to operate program with English display , stable quality with 1 year warranty and low maintenance,

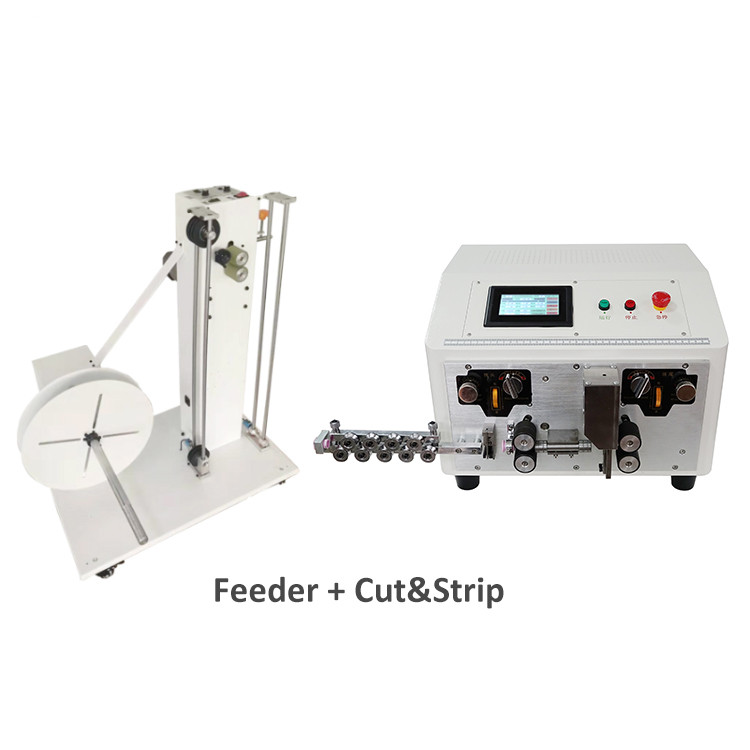

4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.
5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.
|
Model |
SA-9060 |
|
Function |
Wire cutting, double-end stripping |
|
Wire diameter |
1-10mm2 |
|
Cutting length |
0.1mm-99999.9mm |
|
Stripping length |
Stripping head:0.1-250mm Stripping tail: 0.1-70mm |
|
Stripping accuracy |
Silent hybrid stepper motor 0.01mm |
|
Intermediate strip |
Can be customized |
|
Capacity |
1000-2000 / h |
|
Blade material |
Imported tungsten steel / high speed steel |
|
Power |
AC110V/220V 50/60HZ |
|
Body size |
565mm*385mm*370mm |
|
Body weight |
43kg |
|
Remark function |
Automatic entry / exit, timing start, jog adjustment |
