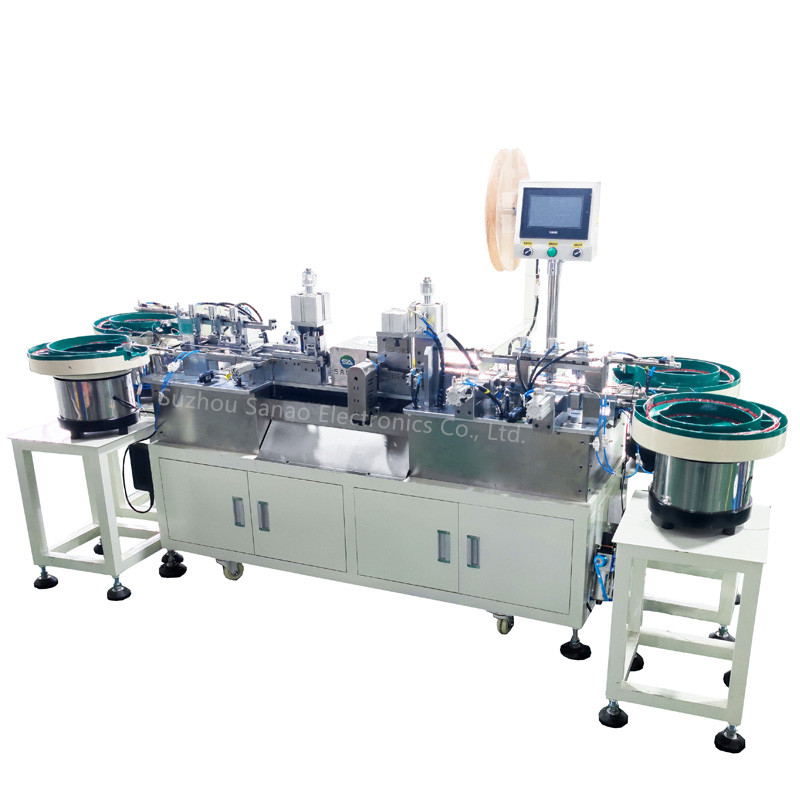

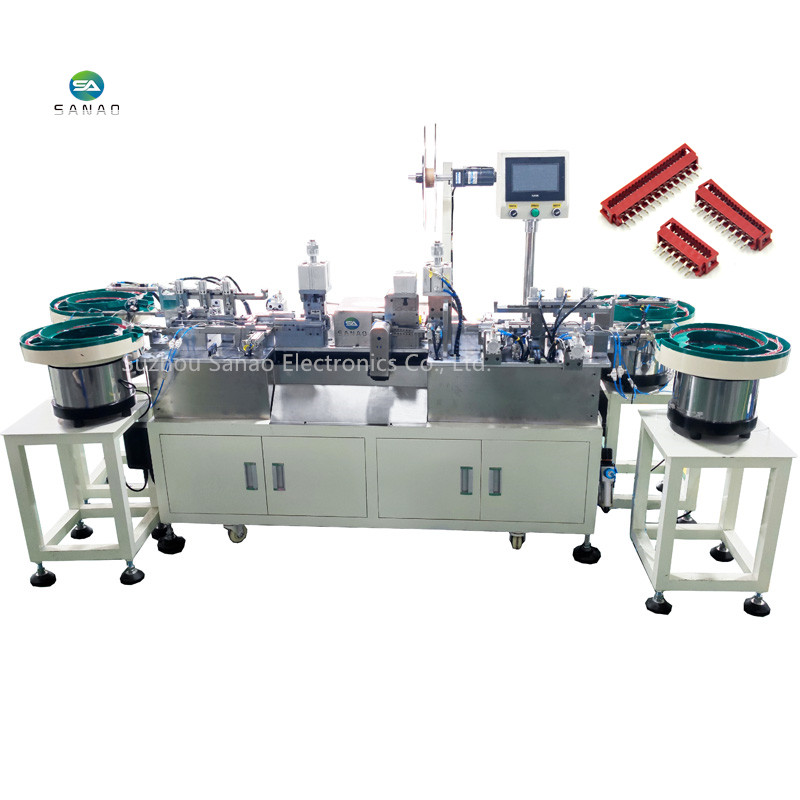

SA-IDC200 Automatic Flat Cable Cutting and IDC Connector Crimping Machine,Machine can automatic cutting Flat cable , Automatic feeding IDC connector via vibrating discs and crimping at the same time,Greatly increase the production speed and reduce the production cost, The machine has an automatic rotating function so that different types of crimping can be realised with one machine. Reduction of input costs , Features:

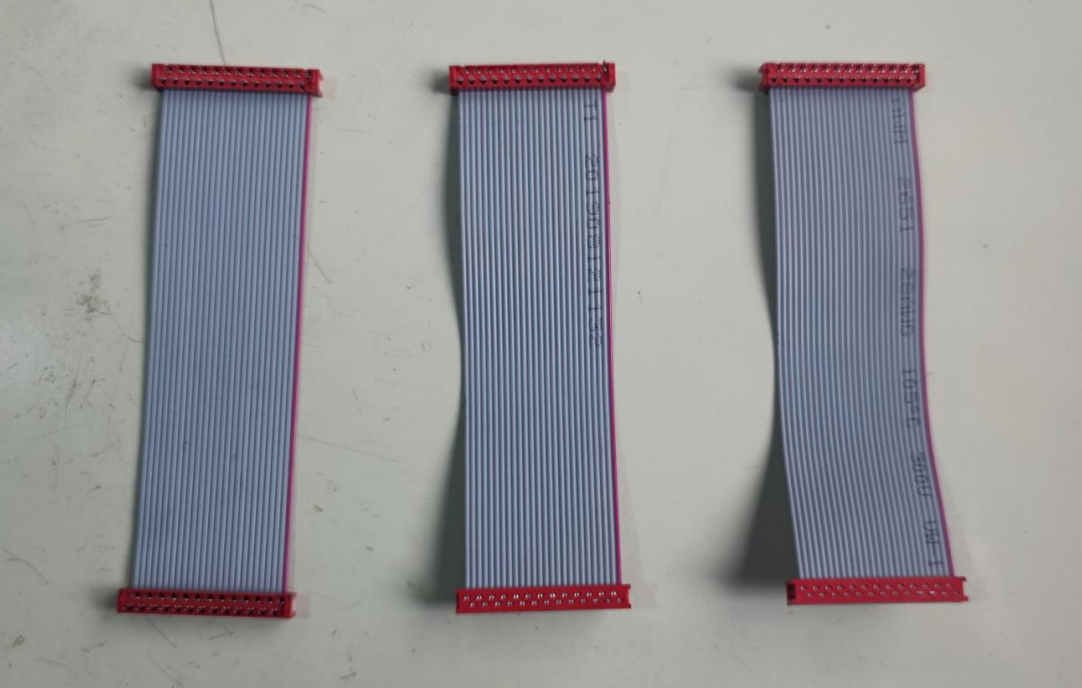

1) For IDC ribbon cable processing: cutting the cable to length needed, auto feeding the IDC, inserting the cable to IDC, and pressing IDC and cable.
2) Can do single end and double ends processing.
3) When processing the second end, the machine can rotate the cable 180°, so the IDC at two ends direction can be different.
4) Only one connector can be pressed at each end of a cable.
5) Touch screen control, can set the cutting length freely
| Model Number | SA-IDC200 |
| Place of Origin | China |
| Voltage | AC220V 50HZ |
| Applicable cable pins number | 4-26pin （ standard machine ) |
| Min length of cable | 40-50mm |
| Max length of cable | 20m |
| Stripping | Without stripping function |
| Air pressure | 0.6-0.8MPa |
| Machine weight | About 220kg |
| Machine size | 3.5*2.3*2m |
