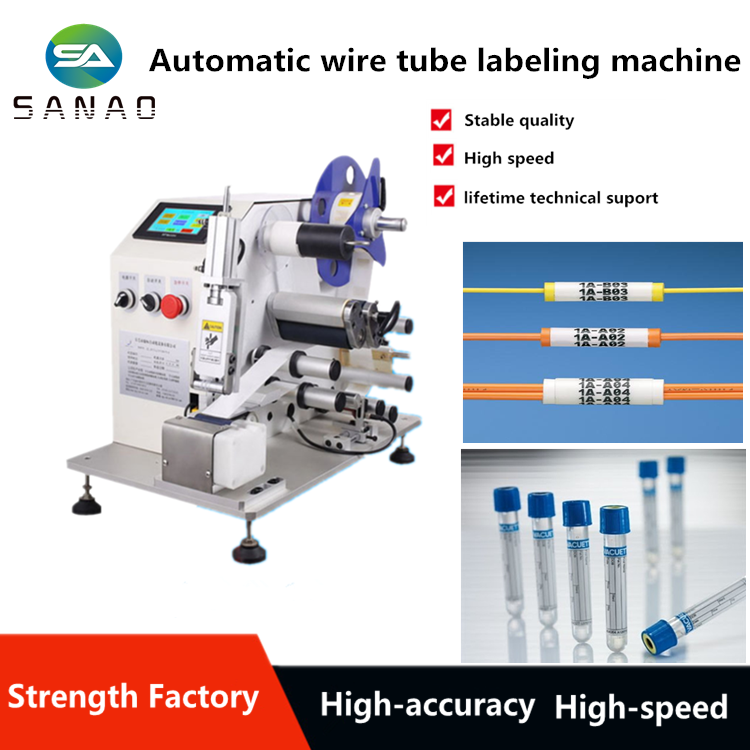

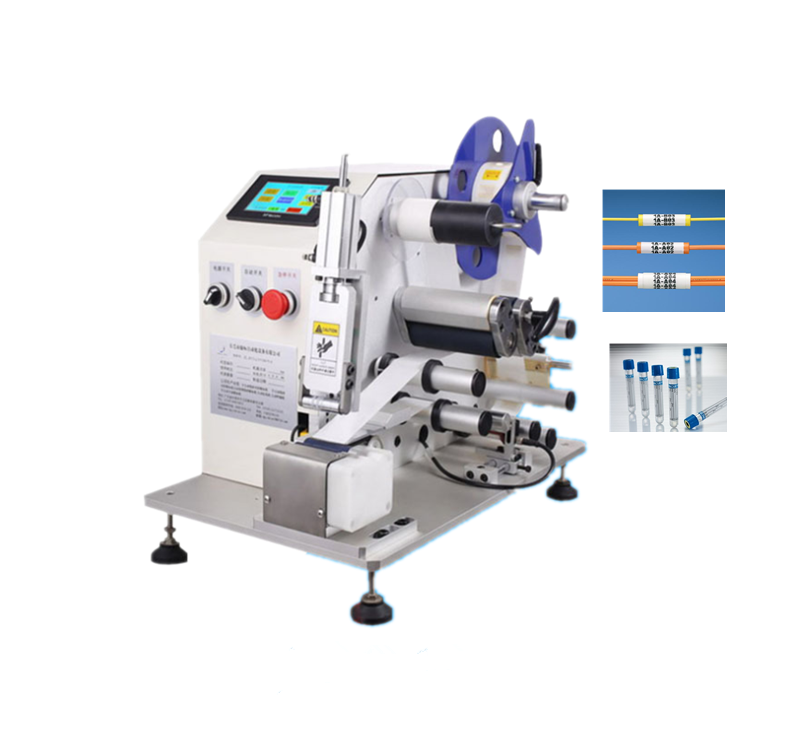

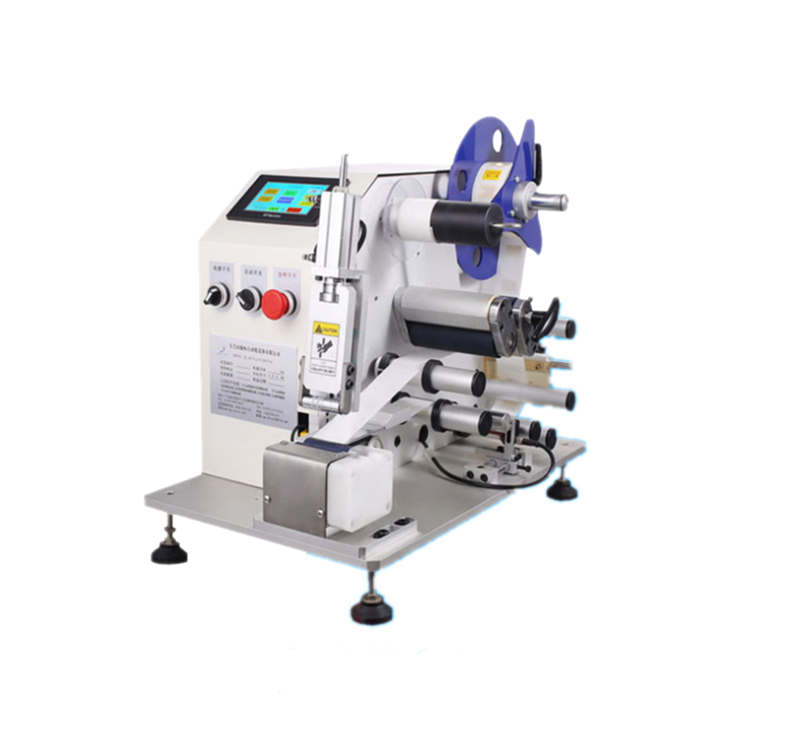

Semi-automatic desktop adhesive label labeling machine for wire cable
Automatic wire labeling machine ,desig for adhesive label or adhesive film labeling on the water pipe, screwdriverand wire cable harness etc.
1.Widely used in wire harness,tube ,mechanical and electrical industries
2.Wide range of applications, suitable for labeling products of different specifications
3.Easy to use, wide adjustment range, can label products of different specification
4.High stability, advanced electronic control system consisting of Panasonic PLC + Germany label electric eye, support 7×24-hour operation
|
Model |
SA-L10 |
|
Labeling precision |
± 0.2mm |
|
Labeling out speed |
1200pieces/hour (related to the product size, operators speed) |
|
Applicable label size |
Length:20-100mm, Width: 5-50mm |
|
Applicable label roll diameter |
75mm inner, 300mm outer |
|
Applicable wire product size |
4-12mm (Normal min.4mm,1-3mm can be customized) |
|
Power supply/Voltage |
110V/220V;60Hz/50Hz 200W |
|
Size&weight |
760*440*270, 40kg |
|
Pressure |
0.4 ~ 0.6Mpap |
