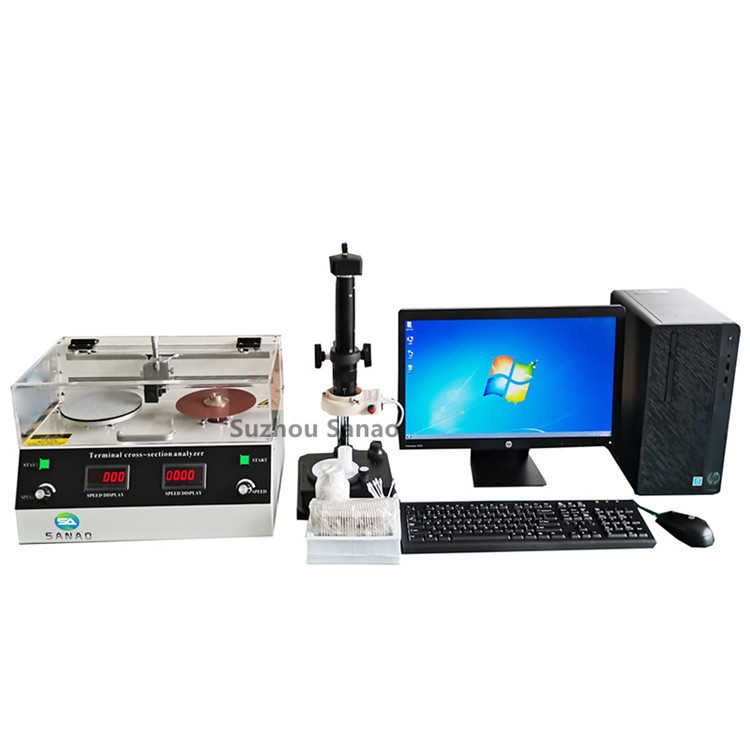

Semi-automatic Terminal Cross Section Analysis System

The terminal cross-section analyzer is designed to detect the quality of crimping terminal, it includes the following modulesterminal fixture, cutting and grindingcorrosion cleaning. cross-section image acquisition, measurement and data analysis.enerate data reports. It only takes about 5 minutes to complete the cross-

section analysis of a terminal
1.Mainly used on cross section testing after terminal crimping.
2.Core testing components is imported from Germany , with long service life.
3.Fast analysis technology of new terminal crimping;
4.The processing of cutting and grinding is in the same chamber, to ensure consistency of the direction of the cutting and grinding.
5.Efficiently saving time of operation and easy maintenance
6.The transmission technology of Japan made high precision ball screw can effectively ensure the cutting precision, and the grinding technology of Z-axis fine
adjustment ;
7.With imported ultra thin cutting disk, it overcome the defect of deformed terminal
8.High measuring precision, stable performance, strong capability of resisting disturbance.
9. Brushless motor, low consumption, dual motor independent control, stepless debugging.
10.The rotary data collecting system, which can automatically choose the related speed for the different terminals.
