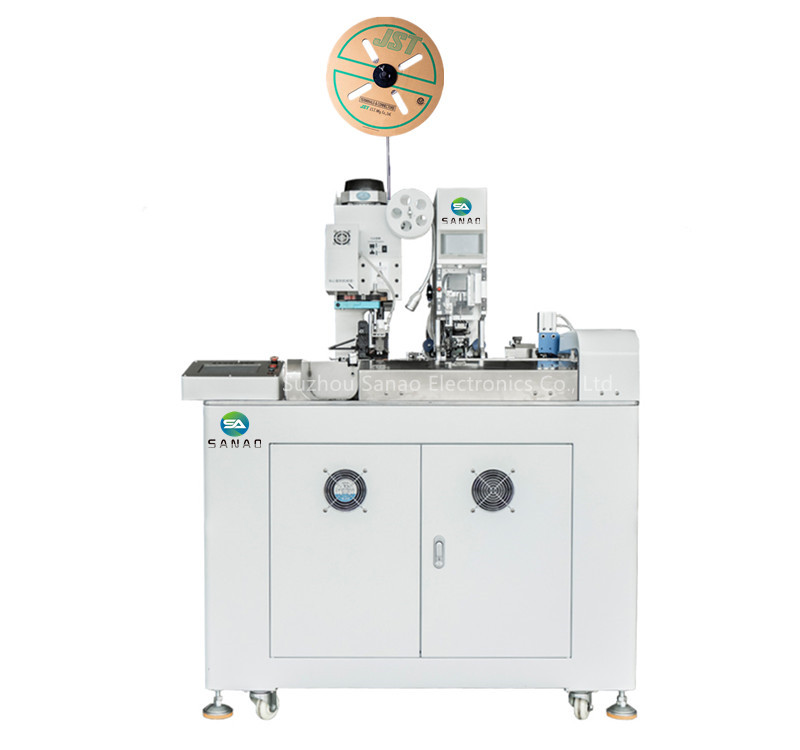

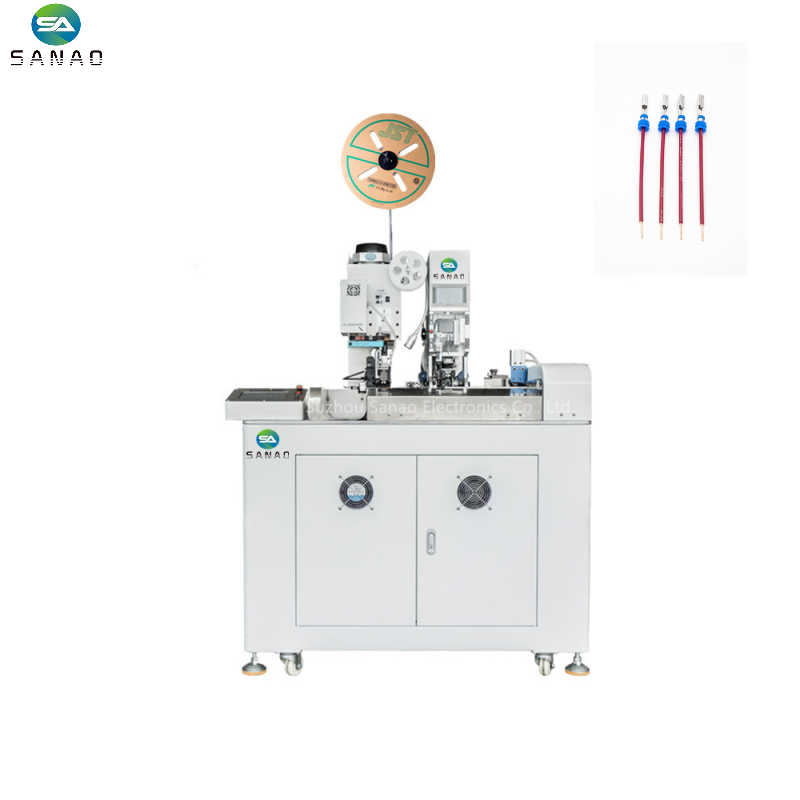

SA-FS2400 Single end crimping seal insert machine. SA-FS2400 is Design for Full Automatic Wire Seal Insertion Machine , One end seal insert and terminal crimping, Machine automatic first cutting stripping ,then seal insert terminal crimping terminal .
Model
SA-FS2400
SA-FS2400-T
SA-FS2400-TD
Power supply
AC220V/50/60HZ (110V/60Hz optional),AC 220V 2.0Kw
AC220V/50/60HZ (110V/60Hz optional),AC 220V 2.0Kw
AC220V/50/60HZ (110V/60Hz optional),AC 220V 2.0Kw
Functions

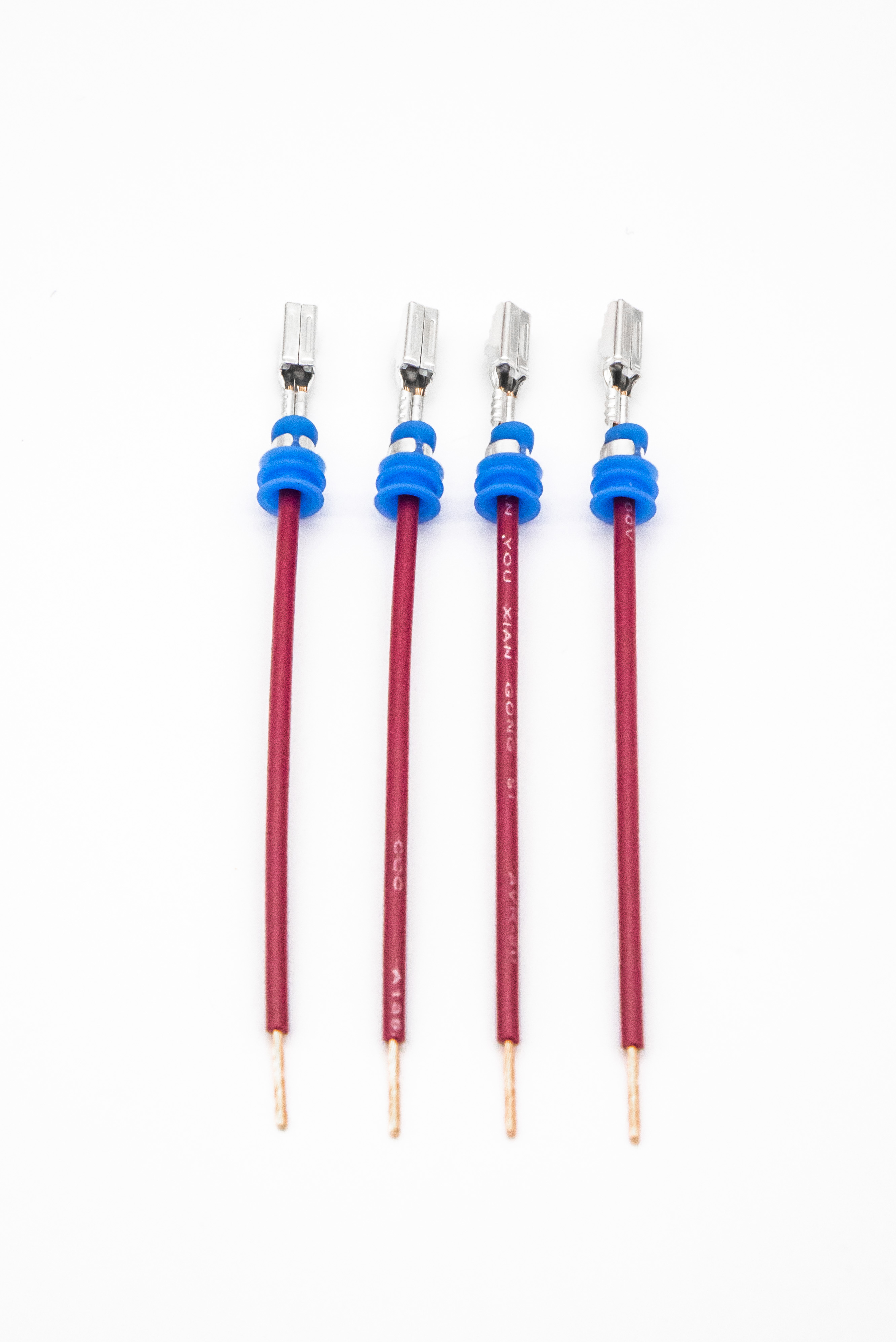

Single end crimping seal insert machine, Other end stripping
Single end crimping seal insert machine,Other end stripping twisting
Single end crimping seal insert machine,Other end stripping twisting tinning
Twisting Length
/
2-10mm
2-10mm
Ttinning Length
/
/
0-15mm
Strip length
0-25 mm
0-25mm
0-25mm
Wire size
AWG#30-AWG#16
AWG#30-AWG#16
AWG#30-AWG#16
Cut length
60-9900MM
60-9900MM
60-9900MM
Applicator
Standard is 30mm OTP Applicator ( 40mm strokes Europe applicator for optional )
Standard is 30mm OTP Applicator ( 40mm strokes Europe applicator for optional )
Standard is 30mm OTP Applicator ( 40mm strokes Europe applicator for optional )
Seal size
Diameter less than 17MM Expandable Waterproof Plugs
Diameter less than 17MM Expandable Waterproof Plugs
Diameter less than 17MM Expandable Waterproof Plugs
Cut tolerance
Range of change: within 1mm + cut lengthx0.2%
Range of change: within 1mm + cut lengthx0.2%
Range of change: within 1mm + cut lengthx0.2%
Crimp force
2.0T ( 3.0T available as an option)
2.0T ( 3.0T available as an option)
2.0T ( 3.0T available as an option)
Air pressure
Air：0.4-0.6MPa
AC 220V 2.0Kw Air：0.4-0.6MPa
AC 220V 2.0Kw Air：0.4-0.6MPa
Testing device
Whether lack of wire,whether lack of terminal crimping, wire plug seal detect,low pressure
Whether lack of wire,whether lack of terminal crimping, wire plug seal detect,low pressure
Whether lack of wire,whether lack of terminal crimping, wire plug seal detect,low pressure
Machine dimension
1200*800*1600MM
1200*800*1600MM
1200*800*1600MM
Net weight
About 330 kg
About 330 kg
About 330 kg
The standard applicator is precision OTP applicator , generally different terminals can be used in different applicator that it’s easy to replace, If you need to use for European style mould, we can also provide customized machine, and we also can provide the Europe applicator , can also be equipped with terminal pressure monitor, real-time monitoring of the pressure curve of each crimping process changes, if the pressure is abnormal, automatic alarm shutdown.
Waterproof plugs with automatic feeding device, different sizes of waterproof plugs can be replaced feeding guide and fixtures, so that a machine can achieve a variety of products processing.
Color touch screen operation interface, intuitive and easy to understand the parameter settings, different processing products can be deposited into different programs, convenient for next time use.
Advantage
1: Different terminals only need to replace the applicator, This is easy to operate,and multi-purpose machine.
2: Advanced software and English colour touch screen make it easy to operate. All parameters can be directly set on our machine
3: The machine has a programme saving function,simplifying the operation process.
4 .4 wheel feeding motor is adopted to avoid wire different length feeding and hurt.
5: The crimping position adopts mute terminal machine, with low noise and uniform force. It can be equipped with horizontal applicator, vertical applicator and flag applicator.
