Automatic stripping crimping machine

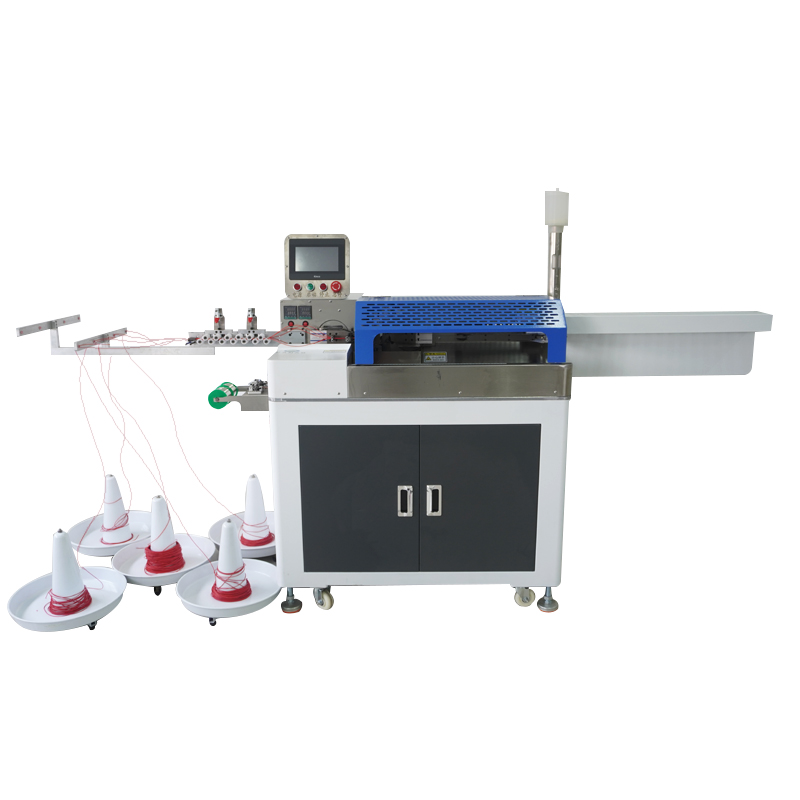

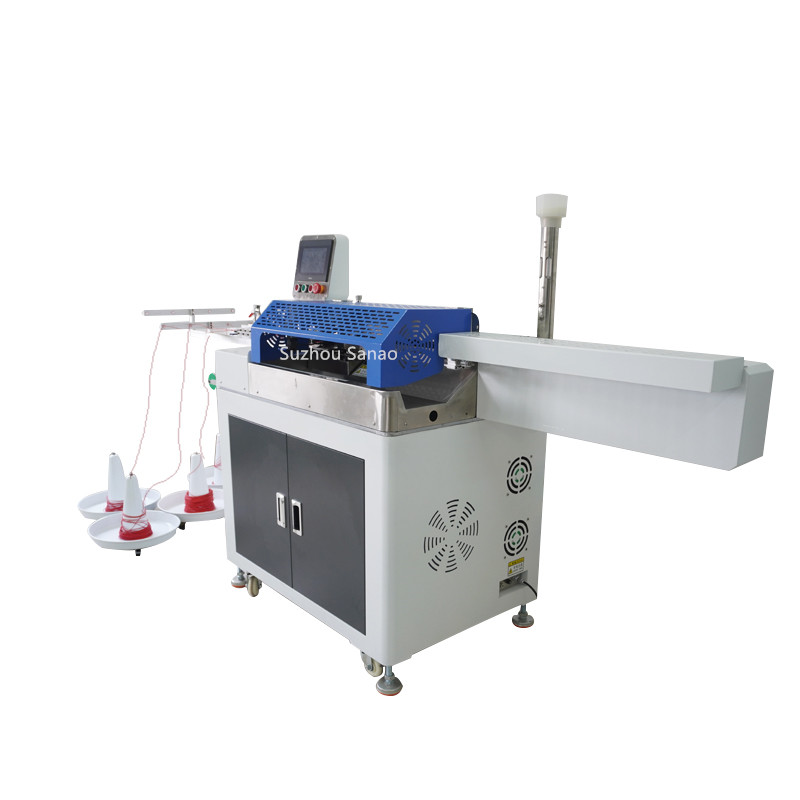

Automatic Wire Stripping Twisting and Tinning machine

Automatic Wire Stripping Twisting and Tinning machine

Model:SA-ZX1000
Description: The fully automatic wire stripping twisting and Tin Soldering machine ,our machine have stable quality, because use Japan servo motors ,Taiwang pneumatic cylinders and PLC contorl , It's able to process maximun 10 ingle wires at one time with very high speed
INQUIRY EMAIL

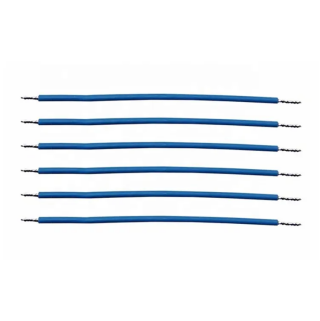

SA-ZX1000 This cable cutting, stripping, twisting and tinning machine is suitable for single wire cutting process, wire range: AWG#16-AWG#32, Cutting length is 1000-25mm (Other length can be custom made). This is an economical double sided fully automatic cutting and tinning machine, two servos and four stepper motors work together to make the machine more stable, this machine supports simultaneous processing of multiple lines with high production efficiency. The colour touch screen operation interface is easy to operate, and can store 100 kinds of processing data for convenient customer production, greatly increasing production speed and saving production cost.

1. Factory direct sales, excellent quality, computer touch screen Chinese operation menu is easy to learn and use.
2. The operation is simple, the length of wire, cutting speed, time of immersion tin and the number of times of tin dipping are completely touched by the touch screen, which realizes that some wires that are difficult to tin will be dipped in tin.
3. The lead-free tin furnace meets high environmental protection standards; has an automatic tin scraping device, which makes the cut wire bright without tin residue; the tin scraping time can be adjusted to make the tin loss reach the bottom; the tin is dipped at a 90 degree angle, and the tin mouth is even.

Model	SA-ZX1000	SA-ZX1000-15
Function	Fully automatic double-sided cutting and tinning machine	Fully automatic double-sided cutting and tinning machine
Wire range	AWG32-AWG16	AWG32-AWG16
Stripping length	1-10mm	1-15mm
Twisting length	1-10mm	1-15mm
Tinning length	1-10mm	1-15mm
Cut precision	±(0.03*L) mm	±(0.03*L) mm
Cutting length	25-1000mm （ Other length can custom made )	25-1000mm (（ Other length can custom made )
Capacity	15000-20000pcs/hour	15000-20000pcs/hour
Power	220V/110V/50/60HZ	220V/110V/50/60HZ
Display	7 inch color display , easy to operate	7 inch color display , easy to operate
Motor	Two set servos and Four stepper motors	Two set servos and Four stepper motors
Air pressure	0.5-0.7Mpa	0.5-0.7Mpa
Machine size	12107701380mm	12107701380mm
Weight	350Kg	350Kg
