Automatic tying machine

  • Handheld automatic nylon cable tie machine
  • Handheld automatic nylon cable tie machine
Handheld automatic nylon cable tie machine Handheld automatic nylon cable tie machine

Handheld automatic nylon cable tie machine

  • Model:SA-SNY300
  • Description: Nylon Cable Tie Machine Hand-held Wire Binding Machine Automatic Nylon Cable Tie Tying Machine,This nylon cable tying machine adopts vibration plate to feed the nylon cable ties to work position continuously.
  • INQUIRY   EMAIL

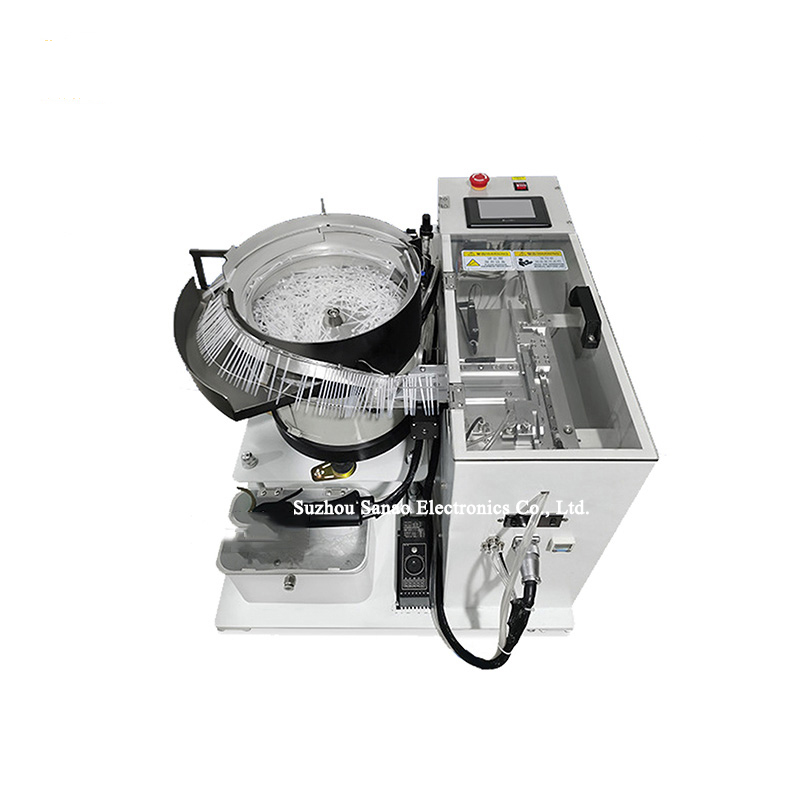

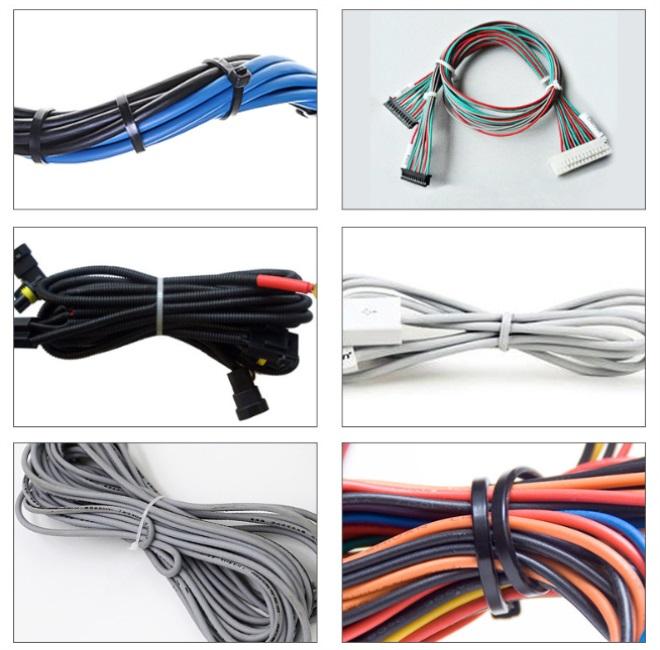

The handheld nylon cable tie tying machine adopts the vibration plate to feed the nylon cable ties to the nylon cable tie gun automatically, the hand-held nylon tie gun can work 360 degrees without blind area. The tightness can be set through program, the user only need to simply pull the trigger, then it will finish all tying steps, the automatic cable tie tying machine is widely used in automotive wiring harness, appliance wiring harness and other industries.

  • PLC control system, touch screen panel, stable performance

  • Disordered bulk nylon tie will be arranged in order through the process of vibrating, and the belt is conveyed to the gun head through a pipeline

  • Automatic wire tying and trimming of nylon ties, saving both time & labor, and greatly increasing productivity

  • Handheld gun is light in weight and exquisite in design, which is easy to hold

  • The tying tightness can be adjusted by the rotary button

Model

SA-SNY300

Name

Handheld cable tie tying machine

Available Cable Tie Length

80mm/100mm/120mm/130mm/150mm/160mm/180mm ( Other can be customized )

Production Rate

1500pcs/h

Power Supply

110/220VAC,50/60Hz

Power

100W

Dimensions

60*60*72cm

Weight

120 kg
