Automatic electric tapping wrapping equipment for long wire

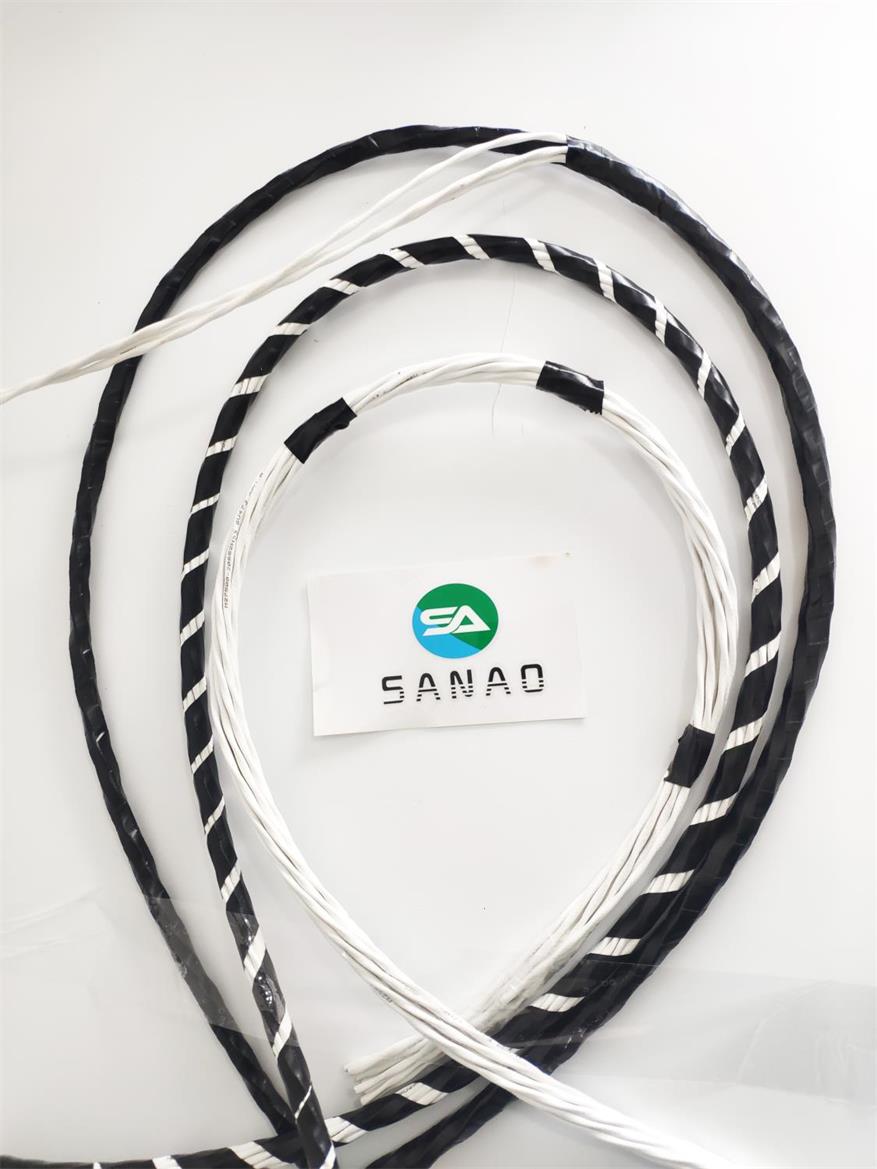

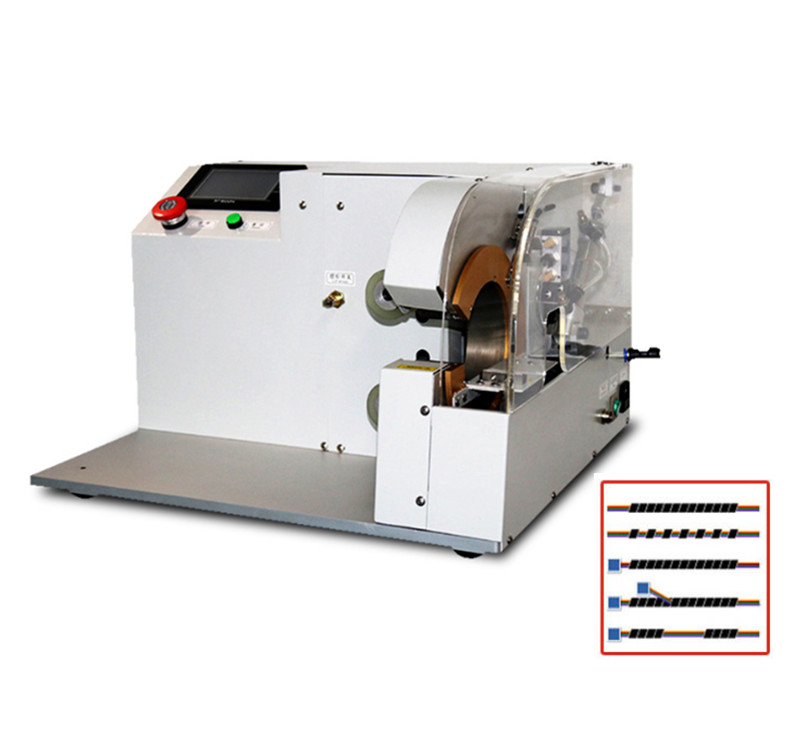

SA-CR3600 Automatic wire harness taping machine,Because this model have fixed length tape winding and automatic feeding cable function , So not need Hold the cable in your hand if you need wrapping 0.5 m ,1m ,2m ,3m ,etc .For example setting wrapping length 3m on machine, then press foot switch ,our machine will winding 3m automatically, This model is More convenient to use for wire/tube taping , working speed is adjustable, taping cycles can be set. Apply to different kinds of non-insulation tape material, such as duct tape, PVC tape, etc. Winding effect is smooth and no fold ,This machine have different taping method, for example, same position with point winding, and different positions with straight spiral winding,and Continuous tape wrapping. The machine also has a counter which can record the working quantity. It can replace manual work and improve taping.

Advantage :

1. Touch screen with English display.

2.Tape materials without release paper, such as Duct Tape, PVC tape and cloth tape, etc.

4.Flat, no wrinkles, the winding of the cloth tape is overlapped with the previous circle by 1/2

5.Switch between different winding modes: point winding at the same position, and spiral winding at different positions

6.Semi-automatic winding Available to custom lap and speed settings and has the output display ,Blades can be quickly replaced
