  • SA-TF1000

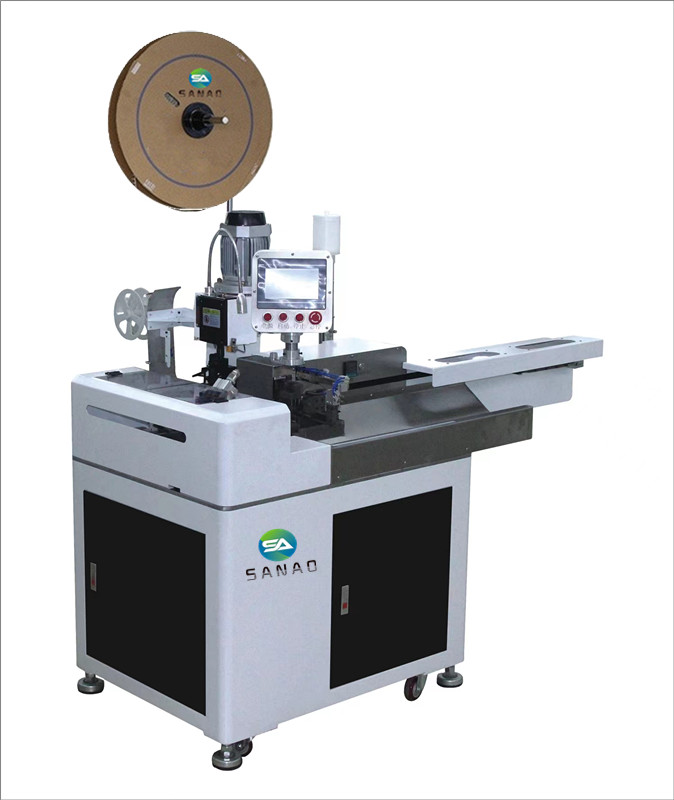

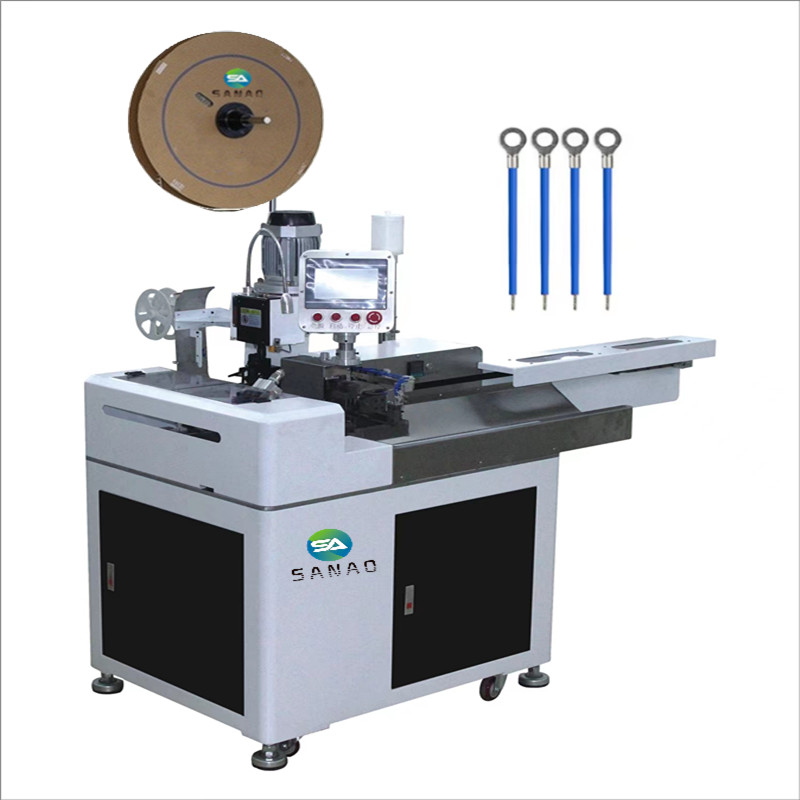

  • Description: SA-TF1000 This is a fully automatic Servo 5 wire crimping and tinning machine, The one end crimping , The other end stripping twisting and tinning machine , This machine uses a translation machine to replace the traditional rotation machine, The wire is always kept straight during the processing process, and the position of the crimping terminal can be adjusted more finely.
  • INQUIRY   EMAIL


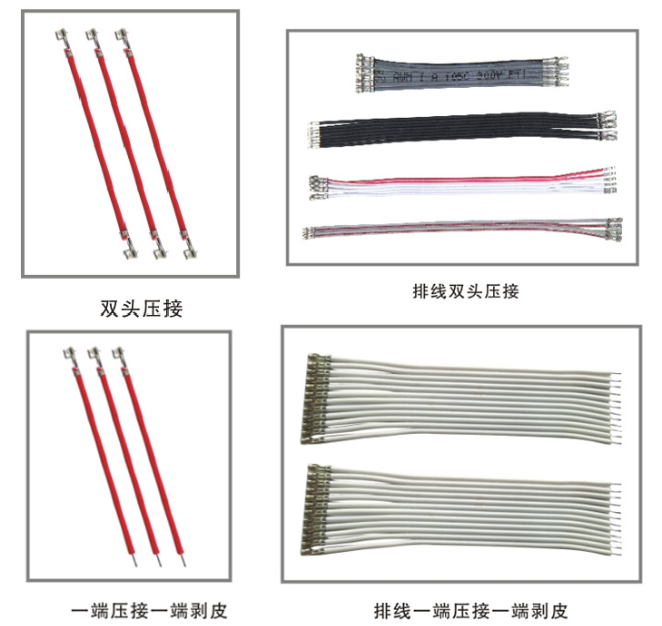

SA-TF1000 This is a fully automatic Servo 5 wire crimping and tinning machine, The one end crimping , The other end stripping twisting and tinning machine , This machine uses a translation machine to replace the traditional rotation machine, The wire is always kept straight during the processing process, and the position of the crimping terminal can be adjusted more finely.


standard machine for 16AWG-32AWG wire , standard machine with a stroke of 30mm OTP high precision applicator , compared with ordinary Applicator, high precision applicator feed and crimp more stable,  Different terminals only need to replace the applicator, This is easy to operate and multi-purpose machine.

The stroke of the machine can be custom made to 40MM, suitable for European style applicator, JST applicator, our company can also provide customers with high quality European style applicators and so on. Please contact us for more information.

The machine uses 6 sets of servo motors,which is a high quality servo terminal crimping tinning machine.The workmanship of the whole machine is precise, and the moving parts such as wire feeding, cutting, and stripping are all driven by high-precision servo motors, with strong power and precise dimensions .

Pressure detection is an optional item, real-time monitoring of each crimping process pressure curve changes, if the pressure is not normal, it will automatically alarm and stop, strict control of production line production quality. When processing long wires, you can choose a conveyor belt, and put the processed wires straight and neatly into the receiving tray.

Colour touch screen operation interface, parameter setting is intuitive and easy to understand. The machine has a programe saving function, which is convenient to use directly next time without setting the machine again, simplifying the operation process.

Advantage
1: Different terminals only need to replace the applicator, This is easy to operate,and multi-purpose machine.
2: Advanced software and English colour touch screen make it easy to operate. All parameters can be directly set on our machine
3.Cutting length, stripping length, tin dip depth, are adjustable, size precision; playing end precision, adjustable depth of wrapping glue.
4, High-quality high-speed steel blade, does not hurt the wire jacket, does not hurt the core wire;
5, twisted wire dip tin evenly, twisted wire tight, not burn the rubber skin.
6. Flux automatic titration, adjustable fast and slow, can also be added to the collection of re-use, no waste, clean and hygienic;

Model

SA-TF1000

SA-TF1000 -Flat

Motor

6 sets of servo motors ( Full servo )

6 sets of servo motors ( Full servo )

Function

The one end crimping , The other end stripping twisting and tinning machine

The one end crimping , The other end stripping twisting and tinning machine

Applicable wire range

16AWG-32AWG

2-20PIN ( Split length 27-35mm )

Stripping length

0-10mm (Other lengths can be customised )

0-10mm (Other lengths can be customised )

Tinning length

0-10mm (Other lengths can be customised )

0-10mm (Other lengths can be customised )

Twisting length

3-10mm (Other lengths can be customised )

0-10mm (Other lengths can be customised )

Cutting length

30-1000mm ( Standard cutting length Max. 1000MM , Other can custom made )

35-1000mm ( Standard cutting length Max. 1000MM , Other can custom made )

Capacity

1100X5=5500 PCS/H

10P 100mm per hour/900 pcs

Crimping force

2.0T ( 3.0T 4.0T available as an option)

2.0T ( 3.0T 4.0T available as an option)

Applicators

Standard is 30mm OTP Applicator   ( 40mm strokes Europe applicator for optional )

Standard is 30mm OTP Applicator   ( 40mm strokes Europe applicator for optional )

Air pressure

0.4-0.6Mpa

0.4-0.6Mpa

Dimension

1210mm*770mm*1370mm

1210mm*770mm*1370mm

Weight

450Kg

450Kg

Power supply

220V/110V/50HZ/60HZ,2000W

220V/110V/50HZ/60HZ,2000W
