Hot and cold cutting machine

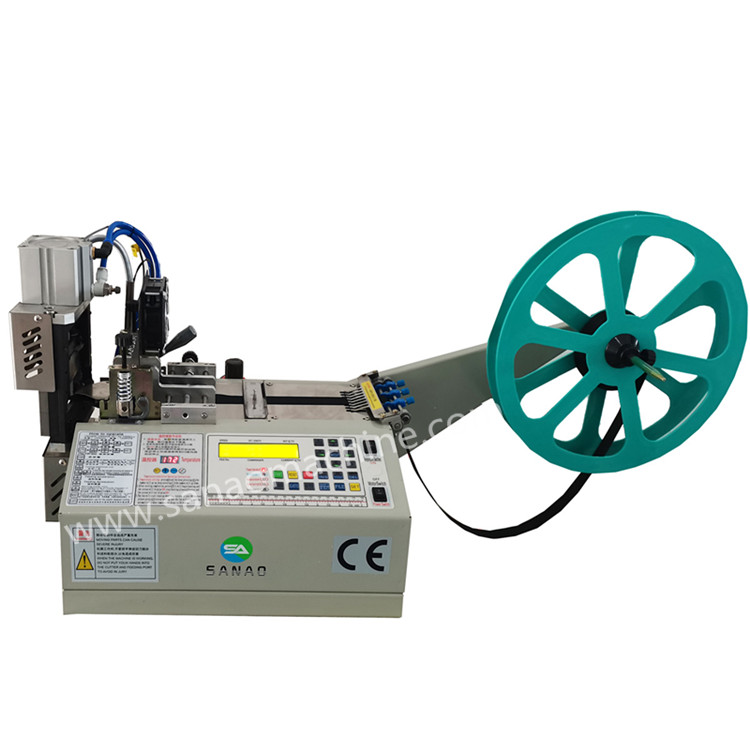

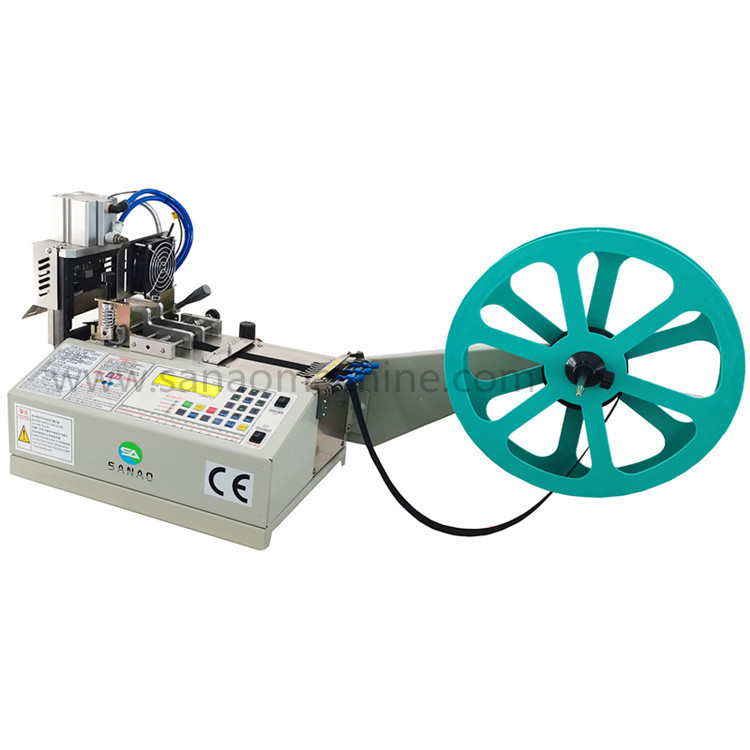

Automatic Angle Tape Cutting Machine

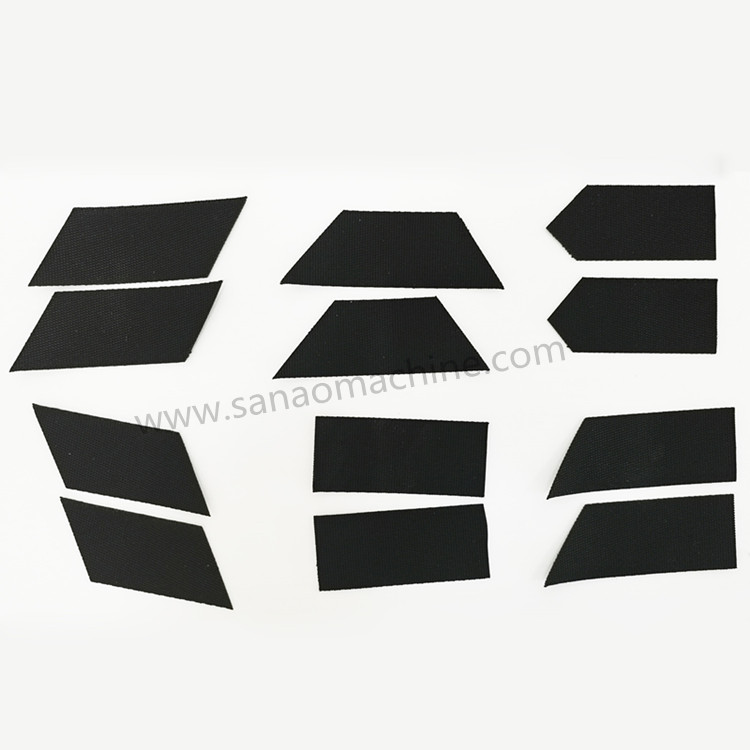

Description: The webbing tape cutting machine can cut 5 shapes , the width of the cutting is 1-45 mm,you can directly choose cutting shape and cutting angle on machine , The angle setting is very accurate, for example, you need to cut 41, Directly setting 41, very easy to operate.
INQUIRY EMAIL

The webbing tape cutting machine can cut 5 shapes , the width of the cutting is 1-50 mm,you can directly choose cutting shape and cutting angle on machine , The angle setting is very accurate, for example, you need to cut 41°C, Directly setting 41°C, very easy to operate.

This digital tape cutting machine can set any cutting length to max 99999m according to your needs, it is very precise and the error is just 0.1mm; and the automatic nylon blet machine can cut several belts at the same time, it will greatly improve work efficiency and save labor costs and time.

Features:

1: Length, quantity, speed arbitrary adjustment.

2: No material automatic shutdown.

3: Automatic power save data.

4:English touch display. very easy to operate

5: The domestic brand stepper motor feeding, stable performance, precise length.

6: Before and after manual key feeding.

7: Precision calibration function.

8: Arbitrary angle adjustment of 45 degree-135 degree.

9: With a pause not cutting, send a set length cut.

10: Length compensation function.

11: Cutting point dynamic function.

12: The installation of independent research and development of intelligent temperature controller, with digital display function always grasp the quality of materials.

Model	SA-120CX
Cutting length	1-99999mm
Max. cutting width	Angle cutting Max.45MM . Straighter cutting 50MM .
Cutting speed	100-120 pcs/min
Power Supply	110/220VAC,50/60Hz
cutting type	cold and cold cutting Cutting Machine
Application	labels, webbings, ribbons, elastic bands, narrow woven fabrics, belts, straps and much more
