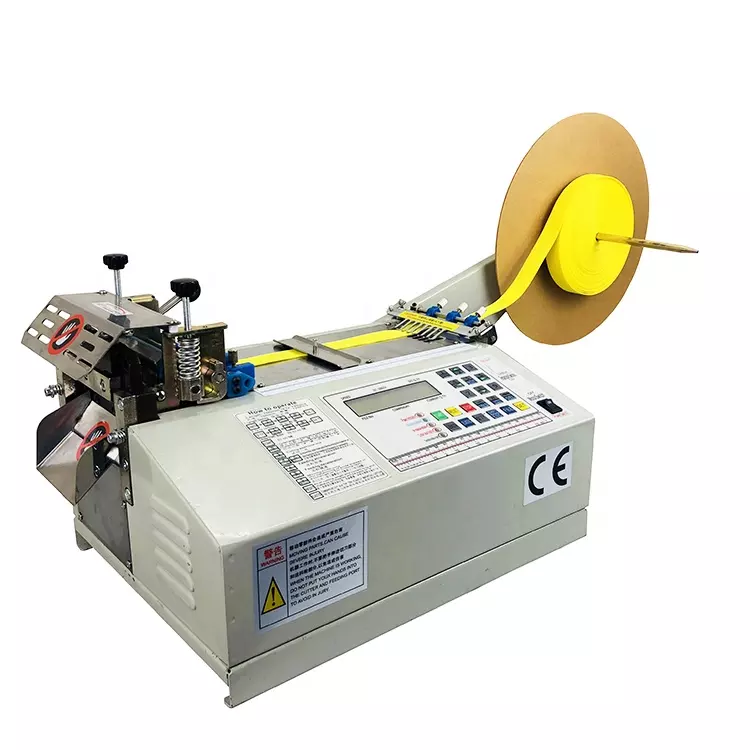

SA-7175 is Computer hot and cold cutting machine ,Max. Cutting width is 165mm . Just setting the cutting length and production account ,So the operate is very sample ,Machine with stable quality and one year warranty . Welcome to inquire.
widely used for cutting non-woven fabrics, plastic, adhesive tape, paper, leather, copper foil, chemical rope, magic adhesive whiplash, leather, electrical wire, knitting tape, bucking strip, safety belt, sash and rubber,etc
Features:
1. Easy Operation,It can cut automatically once set up the cutting length and quantity.
2.Self protection Function,It will stop automatically if the materials run out during the operation.
3.High speed,it can cut 100-120pcs per minute(50mm length for example)
4.High Accuracy,the cutting length is accurate cwing to a stepping motor and imported driver.
5.Length Compensation,when the cutting length is different from the setting length,it can be used to increase or decrease the compensation to the setting length.
6.Reset Function,clear the cut numbers and restart counting
Model |
SA-7105 |
SA-7145 |
SA-7175 |
Cutting length |
0.1-99999.9mm |
0.1-99999.9mm |
0.1-99999.9mm |
Max. cutting width |
1-97MM |
1-130MM |
1-165MM |
Cutting speed |
100-120 pcs/min |
100-120 pcs/min |
100-120 pcs/min |
Power |
400W |
600W |
800W |
Power Supply |
110/220VAC,50/60Hz |
110/220VAC,50/60Hz |
110/220VAC,50/60Hz |
cutting type |
cold Cutting Machine |
cold Cutting Machine |
cold Cutting Machine |
