Automatic Testing machine

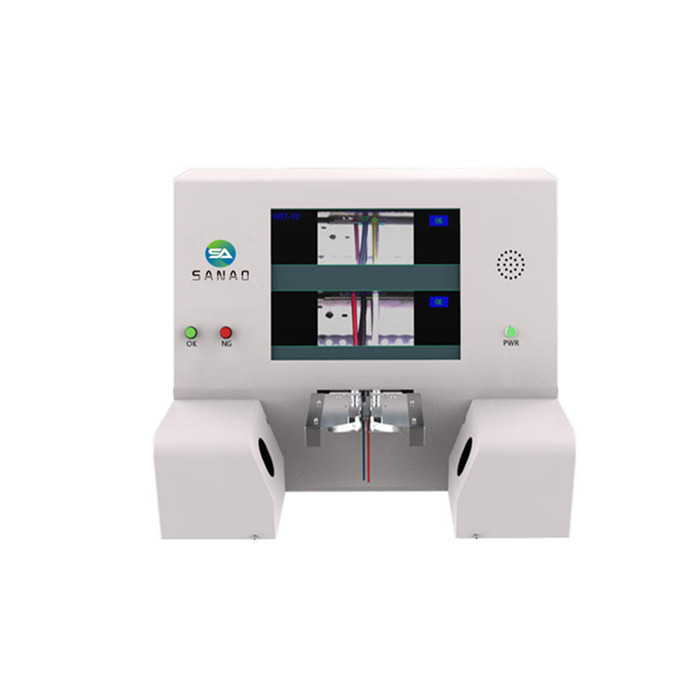

Automatic Double row Color Sequence Detector

Automatic Double row Color Sequence Detector

Model :SA-SC1030
Description: SA-SC1030 The wiring harness in the terminal connector usually needs to be arranged according to a certain color sequence, manual inspection often causes misdiagnosis or missed inspection due to eye fatigue. The wire sequence inspecting device adopts vision technology to determine compliance with preset standards, automatically identify the color of the harness and mark the output, so as to make s
INQUIRY EMAIL

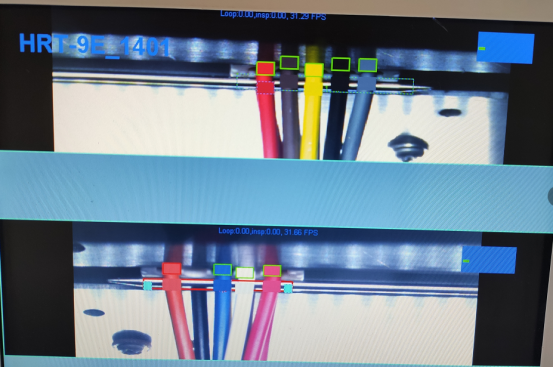

SA-SC1030 The wiring harness in the terminal connector usually needs to be arranged according to a certain color sequence, manual inspection often causes misdiagnosis or missed inspection due to eye fatigue. The wire sequence inspecting device adopts vision technology to determine compliance with preset standards, automatically identify the color of the harness and mark the output, so as to make sure the wiring sequence is 100% correct.

Model	SA-SC1030
Camera parameters	1280*1024;60fps;COMS
Lens parameters	Megapixel;75mm F1.4
Viewable range	1-58mm
Detection time	Within 0.2S
Power	35W
otherboard	embedded
The main MTBT	>50000 hours
Keyboard and mouse	standard mouse, built-in screen keyboard, external interface USB
