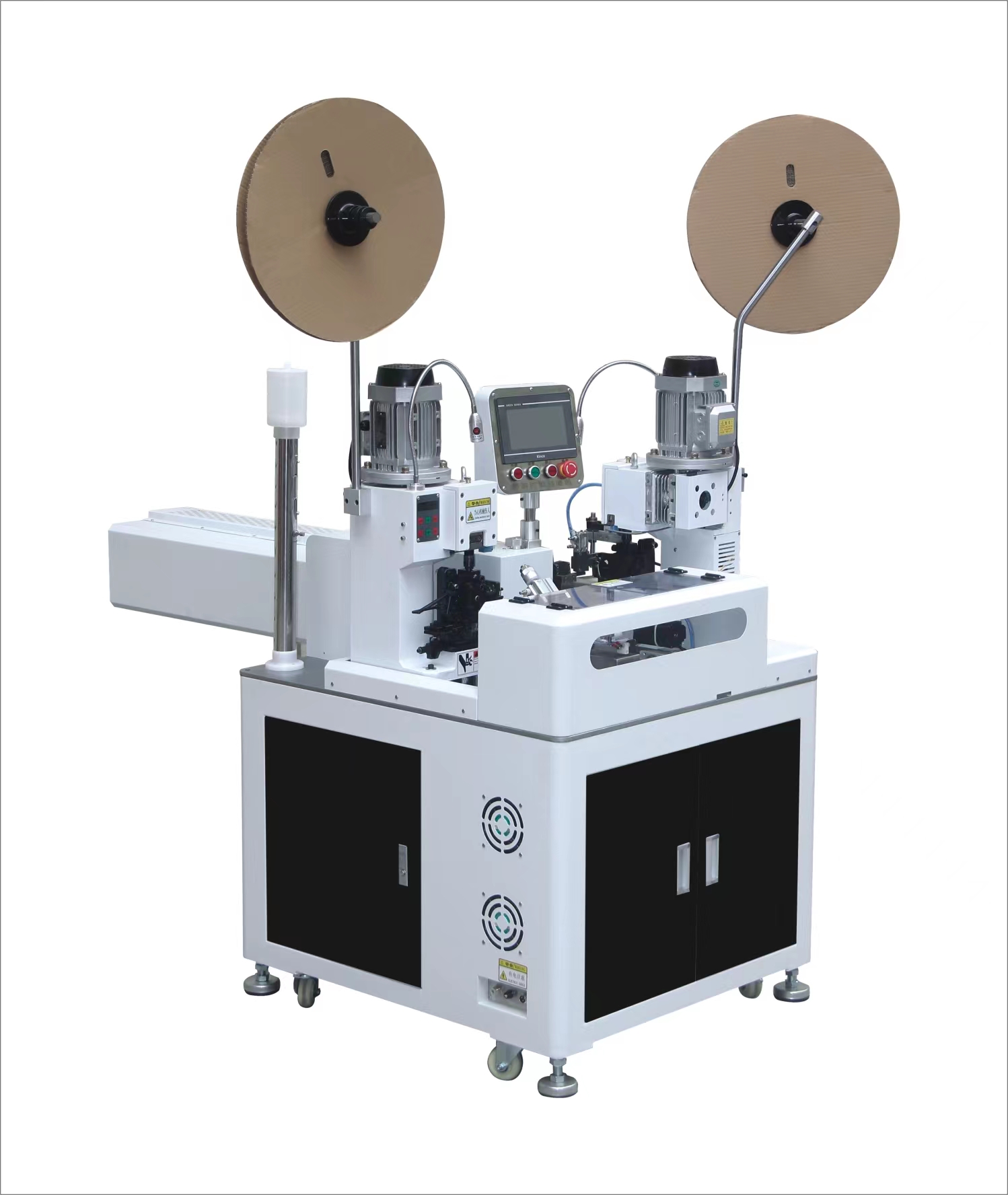

SA-TFT2000 This is a fully automatic Servo 5 wire crimping terminal machine, This is a multifunctional machine that can be used to crimping terminals with two heads, or one head to crimping terminals and the one head for tinning. Suitable for Electronic wire, Flat cable, sheathed wire etc.This is two end crimping machine, This machine uses a translation machine to replace the traditional rotation machine, The wire is always kept straight during the processing process, and the position of the crimping terminal can be adjusted more finely.
standard machine for 16AWG-32AWG wire , standard machine with a stroke of 30mm OTP high precision applicator , compared with ordinary Applicator, high precision applicator feed and crimp more stable, Different terminals only need to replace the applicator, This is easy to operate and multi-purpose machine.
The stroke of the machine can be custom made to 40MM, suitable for European style applicator, JST applicator, our company can also provide customers with high quality European style applicators and so on. Please contact us for more information.
The machine uses 6 sets of servo motors,TBI screws and HIWIN guide rails,which is a high quality servo terminal crimping tinning machine.The workmanship of the whole machine is precise, and the moving parts such as wire feeding, cutting, and stripping are all driven by high-precision servo motors, with strong power and precise dimensions .
Pressure detection is an optional item, real-time monitoring of each crimping process pressure curve changes, if the pressure is not normal, it will automatically alarm and stop, strict control of production line production quality. When processing long wires, you can choose a conveyor belt, and put the processed wires straight and neatly into the receiving tray.
Color touch screen operation interface, parameter setting is intuitive and easy to understand. The machine has a program saving function, which is convenient to use directly next time without setting the machine again, simplifying the operation process.
Advantage
1: Different terminals only need to replace the applicator, This is easy to operate,and multi-purpose machine.
2: Advanced software and English colour touch screen make it easy to operate. All parameters can be directly set on our machine
3.Cutting length, stripping length, tin dip depth, are adjustable, size precision; playing end precision, adjustable depth of wrapping glue.
4, High-quality high-speed steel blade, does not hurt the wire jacket, does not hurt the core wire;
5, twisted wire dip tin evenly, twisted wire tight, not burn the rubber skin.
6. Flux automatic titration, adjustable fast and slow, can also be added to the collection of re-use, no waste, clean and hygienic;
|
Model |
SA-TFT2000 |
SA-TFT2000 -Flat |
SA-TF2000 |
SA-TF2000 -Flat |
|
Motor |
6 sets of servo motors |
6 sets of servo motors |
6 sets of servo motors |
6 sets of servo motors |
|
Function |
This is a multifunctional machine that can be used to crimping terminals with two heads, or one head to crimping terminals and the one head for tinning |
This is a multifunctional machine that can be used to crimping terminals with two heads, or one head to crimping terminals and the one head for tinning |
Two end crimping machine |
Two end crimping machine |
|
Applicable wire range |
16AWG-32AWG |
2-20PIN ( Split length 27-35mm ) |
16AWG-32AWG |
2-20PIN ( Split length 27-35mm ) |
|
Stripping length |
0-10mm (Other lengths can be customised ) |
0-10mm (Other lengths can be customised ) |
0-10mm (Other lengths can be customised ) |
0-10mm (Other lengths can be customised ) |
|
Tinning length |
0-10mm (Other lengths can be customised ) |
0-10mm (Other lengths can be customised ) |
0-10mm (Other lengths can be customised ) |
0-10mm (Other lengths can be customised ) |
|
Twisting length |
3-10mm (Other lengths can be customised ) |
0-10mm (Other lengths can be customised ) |
3-10mm (Other lengths can be customised ) |
0-10mm (Other lengths can be customised ) |
|
Cutting length |
30-1000mm ( Standard cutting length Max. 1000MM , Other can custom made ) |
60-1000mm ( Standard cutting length Max. 1000MM , Other can custom made ) |
30-1000mm ( Standard cutting length Max. 1000MM , Other can custom made ) |
60-1000mm ( Standard cutting length Max. 1000MM , Other can custom made ) |
|
Capacity |
1100X5=5500 PCS/H |
10P 100mm per hour/900 pcs |
1100X5=5500 PCS/H |
10P 100mm per hour/900 pcs |
|
Crimping force |
2.0T ( 3.0T 4.0T available as an option) |
2.0T ( 3.0T 4.0T available as an option) |
2.0T ( 3.0T 4.0T available as an option) |
2.0T ( 3.0T 4.0T available as an option) |
|
Applicators |
Standard is 30mm OTP Applicator ( 40mm strokes Europe applicator for optional ) |
Standard is 30mm OTP Applicator ( 40mm strokes Europe applicator for optional ) |
Standard is 30mm OTP Applicator ( 40mm strokes Europe applicator for optional ) |
Standard is 30mm OTP Applicator ( 40mm strokes Europe applicator for optional ) |
|
Air pressure |
0.4-0.6Mpa |
0.4-0.6Mpa |
0.4-0.6Mpa |
0.4-0.6Mpa |
|
Dimension |
1900mm*900mm*1500mm |
1900mm*900mm*1500mm |
1900mm*900mm*1500mm |
1900mm*900mm*1500mm |
|
Weight |
550Kg |
550Kg |
550Kg |
550Kg |
|
Power supply |
220V/110V/50HZ/60HZ,2000W |
220V/110V/50HZ/60HZ,2000W |
220V/110V/50HZ/60HZ,2000W |
220V/110V/50HZ/60HZ,2000W |
