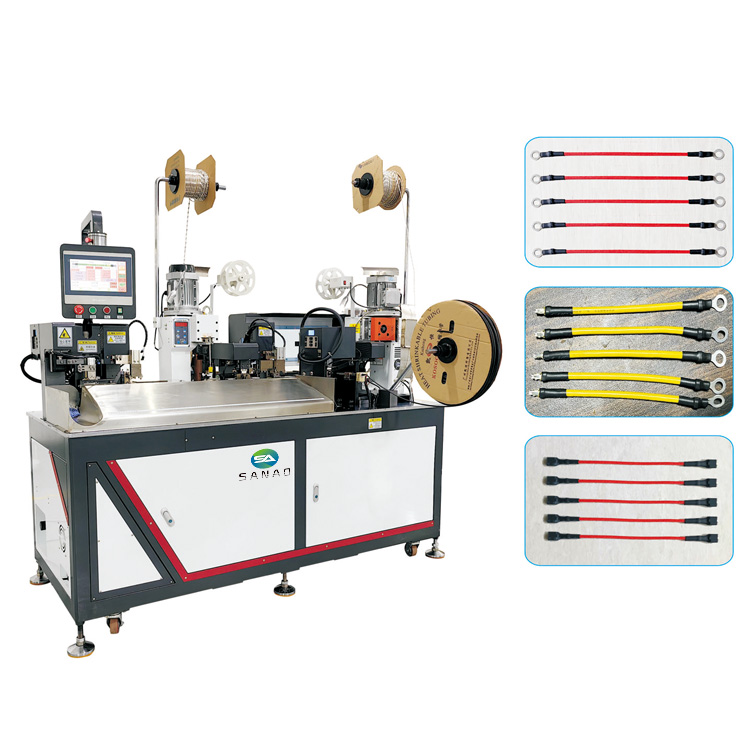

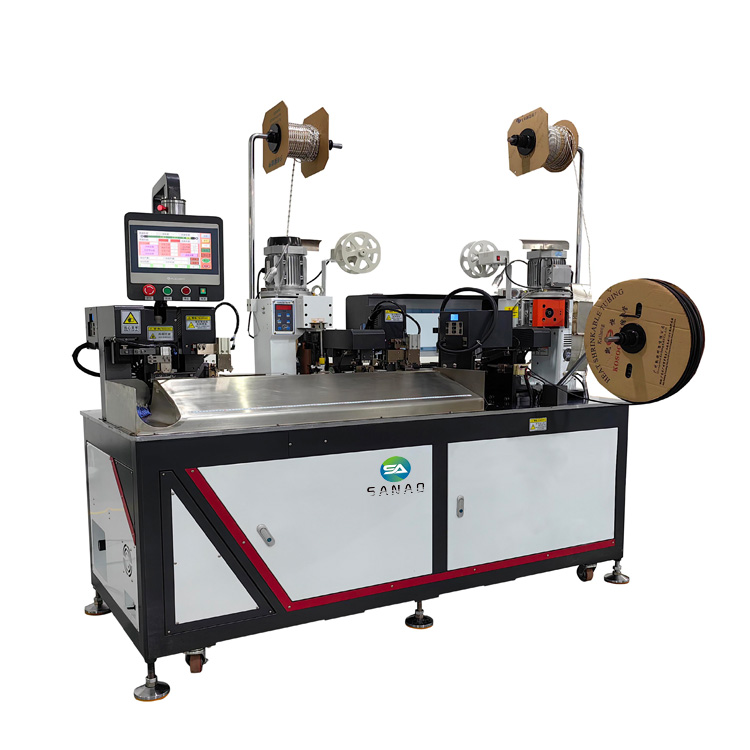

Automatic Wire Crimping Heat-Shrink Tubing Inserting Machine

SA-8050-B This is Servo Automatic Wire Crimping and Shrink Tube nserting Machine,the machine is automatic wire cutting stripping ,double end crimping and shrink tube inserting all in one machine

Machine Main parts brand Taiwan HIWIN screw, Taiwan AirTAC cylinder, South Korea YSC solenoid valve, leadshine servo motor ( China brand ) , Taiwan HIWIN slide rail, Japanese imported bearings.This is a high quality machine.

The terminal crimping machine is integrally formed of ductile iron. The whole machine has strong rigidity and stable crimping height,standard machine with a stroke of 30mm OTP high precision applicator , compared with ordinary dies, high precision applicator feed crimp more stable, crimp better results! . Different terminals only need to replace the applicator, This is easy to operate,and multi-purpose machine.The stroke of the machine can be custom made to 40MM, suitable for European style applicator, JST applicator, our company can also provide customers with high quality European style applicators and so on. Please contact us for more information.

Pressure detection is an optional item, real-time monitoring of each crimping process pressure curve changes, if the pressure is not normal, it will automatically alarm and stop, strict control of production line production quality.CCD visual inspection is also available as an option to inspect the products finished picture ensure product quality, The standard terminal crimping machine is driven by a variable freguency motor, and aservo terminal crimping machine can also be selected.

Colour touch screen operation interface, parameter setting is intuitive and easy to understand. The machine has a programme saving function, which is convenient to use directly next time without setting the machine again, simplifying the operation process.
Advantage
1: Different terminals only need to replace the applicator, This is easy to operate,and multi-purpose machine.
2: Advanced software and English colour LCD touch screen make it easy to operate. All parameters can be directly set on our machine
3: The machine has a programme saving function,simplifying the operation process.
4 .Adopting 7 sets of servo motors, the machine quality is more stable and reliable.
5: Machines can be customised according to customer requirements, welcome to inquire!
