Automatic single end crimping machine

  • SA-DT100

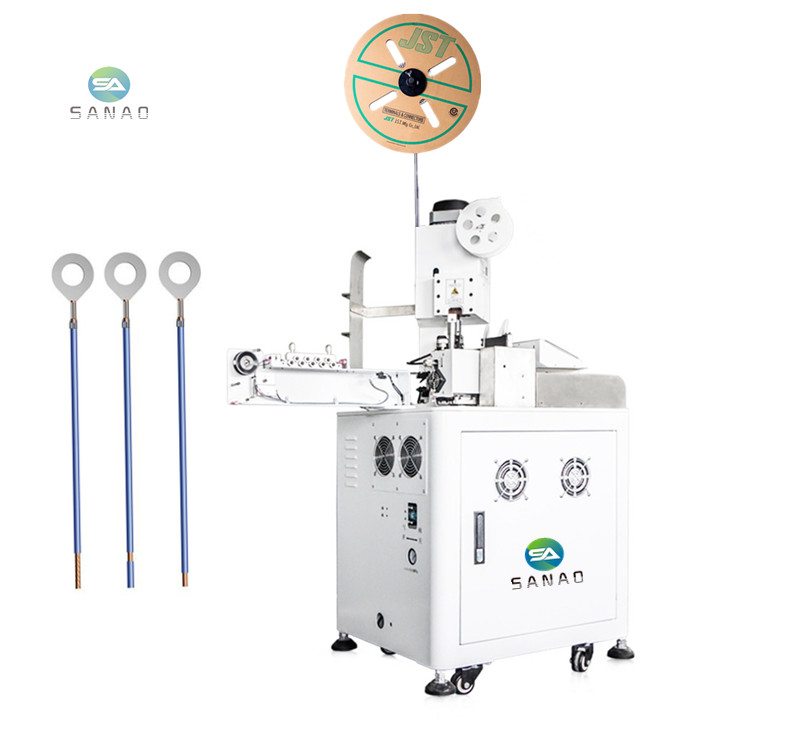

  • Description: SA-DT100 This is a fully automatic single end crimping, one end to crimping the terminal, the other end is stripping, standard machine for AWG26-AWG12 wire , standard machine with a stroke of 30mm OTP high precision applicator compared with ordinary Applicator
  • INQUIRY   EMAIL

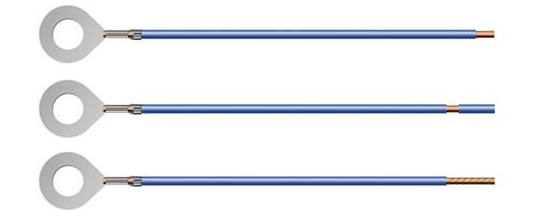

SA-DT100 This is a fully automatic single end crimping, one end to crimping the terminal, the other end is stripping, standard machine for AWG26-AWG12 wire , standard machine with a stroke of 30mm OTP high precision applicator compared with ordinary Applicator, high precision applicator feed and crimp more stable,  Different terminals only need to replace the applicator, This is easy to operate,and multi-purpose machine.

The stroke of the machine can be custom made to 40MM, suitable for European style applicator, JST applicator, our company can also provide customers with high quality European style applicators and so on. Please contact us for more information.

Pressure detection is an optional item, real-time monitoring of each crimping process pressure curve changes, if the pressure is not normal, it will automatically alarm and stop, strict control of production line production quality.

Colour touch screen operation interface, parameter setting is intuitive and easy to understand. The machine has a programme saving function, which is convenient to use directly next time without setting the machine again, simplifying the operation process.

Advantage
1: Different terminals only need to replace the applicator, This is easy to operate,and multi-purpose machine.
2: Advanced software and English colour LCD touch screen make it easy to operate. All parameters can be directly set on our machine
3: The machine has a programme saving function,simplifying the operation process.
4 .74 wheel feeding motor is adopted to avoid wire different length feeding and hurt.
5: The crimping position adopts mute terminal machine, with low noise and uniform force. It can be equipped with horizontal applicator, vertical applicator and flag applicator.

Model

SA-DT100

Function

One send crimping , The other end stripping

Applicable wire range

AWG26-AWG12 ( ( Other can custom made )

Stripping length

0-35mm(More than 10mm need to be half stripping )

Cut precision

±(0.5+0.002*L) mm, L=cut length

Cutting length

45-9999mm

Capacity

Within 300MM, 3500PCS/H

Crimping force

2.0T ( 3.0T 4.0T available as an option)

Applicators

Standard is 30mm OTP Applicator   ( 40mm strokes Europe applicator for optional )

Air pressure

0.4-0.6Mpa

Detection Device

Lack wire detection, Lack terminal detection, Crimp detection, Pressure detection

Dimension

650*700*1650mm

Weight

300Kg

Power supply

220V/110V/50HZ/60HZ
