Automatic stripping crimping machine

  • Two-sided Automatic Terminal Crimping Machine
  • Two-sided Automatic Terminal Crimping Machine
  • Two-sided Automatic Terminal Crimping Machine
Two-sided Automatic Terminal Crimping MachineTwo-sided Automatic Terminal Crimping MachineTwo-sided Automatic Terminal Crimping Machine

Two-sided Automatic Terminal Crimping Machine

  • SA-ST100
  • Description: SA-ST100 Suitable for 18AWG~30AWG wire ,is Fully automatic 2 end terminal crimping machine ,18AWG~30AWG wire use 2- wheel feeding , 14AWG~24AWG wire use 4-Wheel feeding,Cutting length is 40mm~9900mm (Customized ) , Machine with English color screen is very easy operate.Crimping double end at one time , it’s Improved wire process speed and save labor cost.
  • INQUIRY   EMAIL

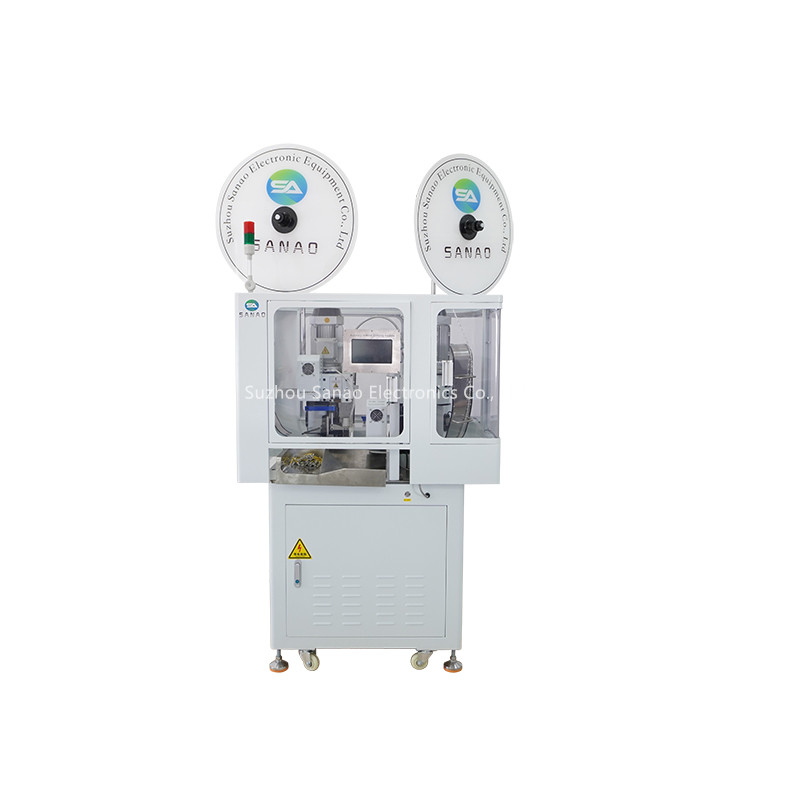

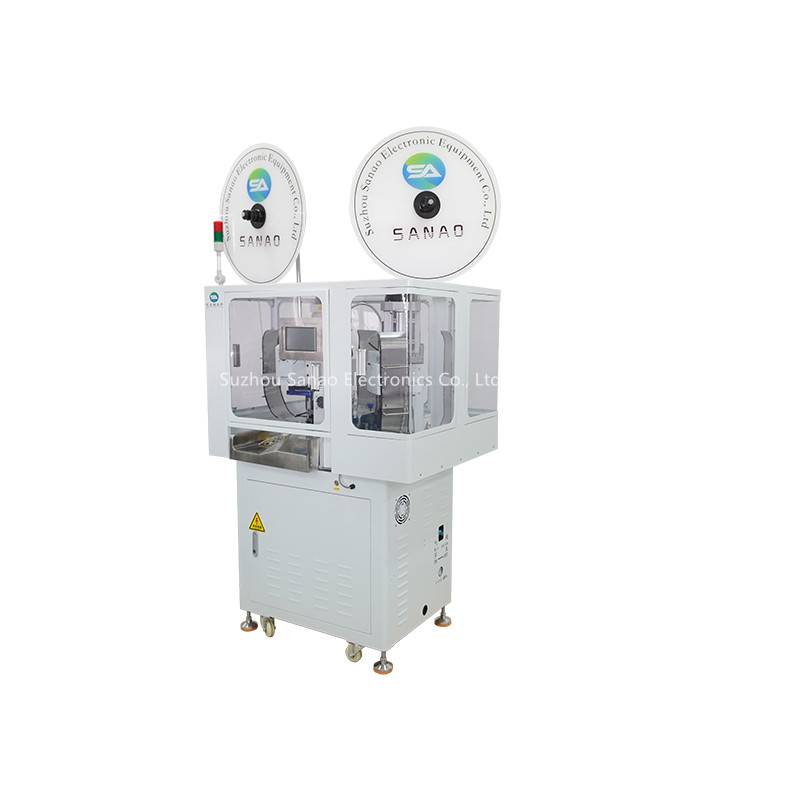

SA-ST100 This is a fully automatic double end crimping machine, standard machine for AWG26-AWG12 wire , standard machine with a stroke of 30mm OTP high precision applicator , compared with ordinary Applicator, high precision applicator feed and crimp more stable,  Different terminals only need to replace the applicator, This is easy to operate,and multi-purpose machine.

The stroke of the machine can be custom made to 40MM, suitable for European style applicator, JST applicator, our company can also provide customers with high quality European style applicators and so on. Please contact us for more information.

Pressure detection is an optional item, real-time monitoring of each crimping process pressure curve changes, if the pressure is not normal, it will automatically alarm and stop, strict control of production line production quality.

Colour touch screen operation interface, parameter setting is intuitive and easy to understand. The machine has a programme saving function, which is convenient to use directly next time without setting the machine again, simplifying the operation process.

Advantage
1: Different terminals only need to replace the applicator, This is easy to operate,and multi-purpose machine.
2: Advanced software and English colour LCD touch screen make it easy to operate. All parameters can be directly set on our machine
3: The machine has a programme saving function,simplifying the operation process.
4 .74 wheel feeding motor is adopted to avoid wire different length feeding and hurt.
5: The crimping position adopts mute terminal machine, with low noise and uniform force. It can be equipped with horizontal applicator, vertical applicator and flag applicator.

Model

SA-ST100

Name

Automatic double wire cutting stripping terminal crimping machine

Display

Color LCD touch screen

Blade adjustment method

Motorized adjusting

Wire cutting length

45mm-9999mm

Cutting tolerance

0.20%

Wire crimping length

1.5-10mm

Suitable wires

AWG18—28#( Other can customized )

cutting speed

1500-4000PCS/hour

Crirmp force

standard 2.0T(customized available)

Power

AC 220V

Rated power

2.5KW

Weight

320kgs

Size

1600L*800W*600H

Our Company

SUZHOU SANAO ELECTRONICS CO., LTD is a professional wire processing machine manufacturer, based on sales innovation and service. As a professional company, we have a large number of professional and technical personnel, strong after-sales services and first-class precision machining technology. Our products are widely used in electronic industry, auto industry, cabinet industry, power industry and aerospace industry.Our company provides you with products and services of good quality, high efficiency and integrity.Our commitment: with the best price and the most dedicated service and tireless efforts to make customers improve productivity and meet customers' needs.

Our mission: for the interests of customers, we strive to innovate and create the world's most innovative products.Our philosophy: honest, customers-centric, market-oriented, technology-based, quality assurance.Our service: 24-hour hotline services.You are welcome to call us. The company has passed ISO9001 quality management system certification , and has been recognized as municipal enterprise engineering technology center , municipal science and technology enterprise , and national high-tech enterprise .

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.

Q4: How can I install my machine when it arrives?

A4: All machine will be install and debug well before delivery . English Manual and operate video will be together send with machine . you can directly use when you got our machine . 24 hours online if you have any questions

Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
