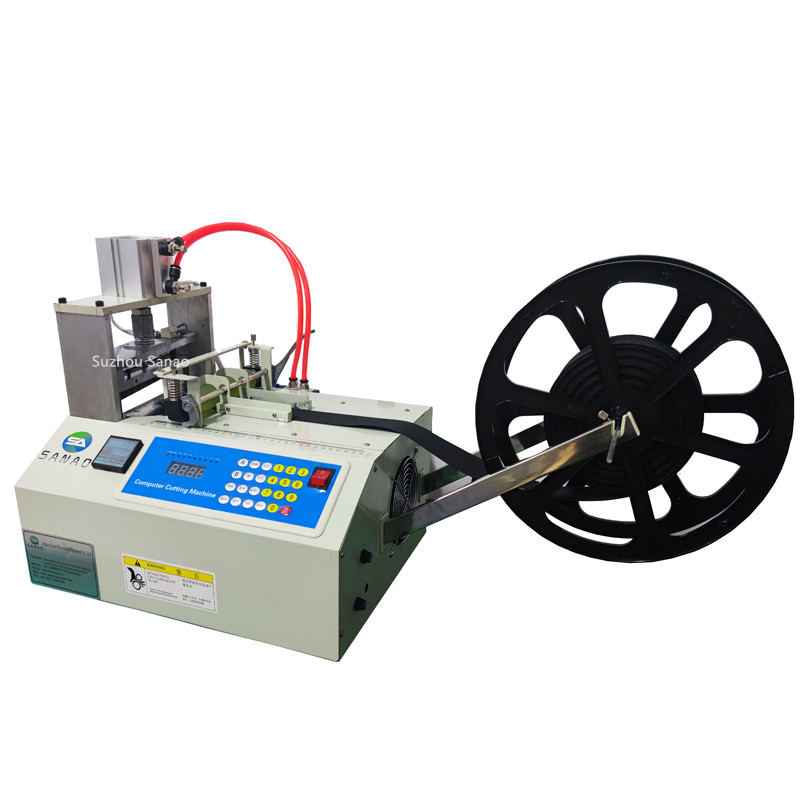

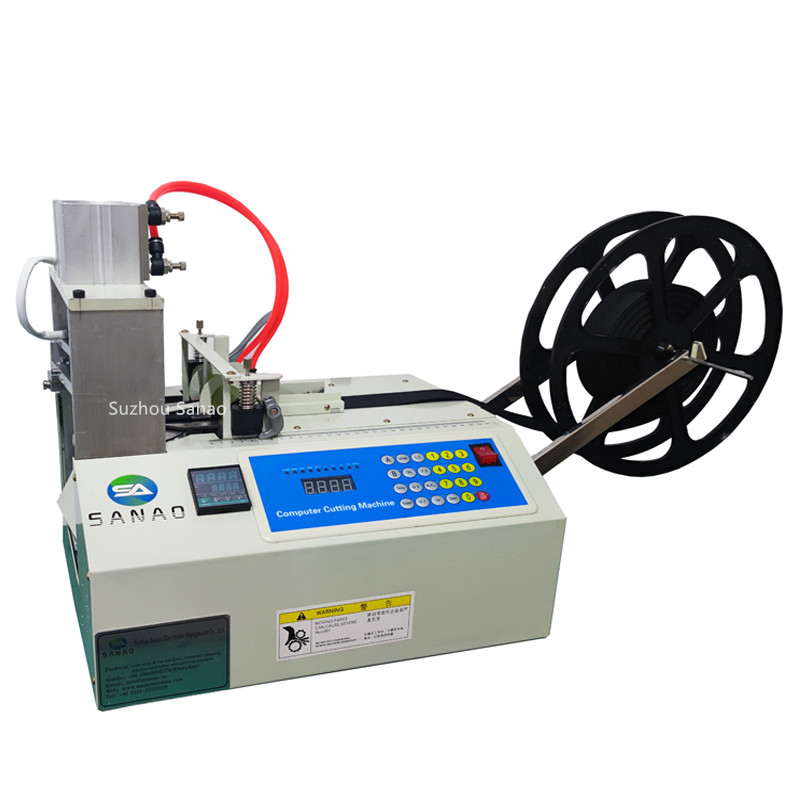

SA-R160XZ This is webbing tape cutting machine for 5 shapes ,Blades width is 160mm , Angle cutting Max.110MM . Straighter cutting 155MM.
Press Button A to choose cutting shape. Total 5 shapes , like straighter cutting shape， diamond shape , trapezia shape , parallelogram shape and soon on
Press Button B to setting cutting angle . For example 45 °， 50° ， 90° , Automatic setting is very convenient .
Features:
1. High speed: it can cut 100 to 120 pieces per minute (50mm length as an example)
2. High precision: Each cut is monitored by a stepper motor to ensure high accuracy for each operation
3. The cut surface is flat: The hot knife can heat the cut surface of colored ribbons and light textile tapes at high temperature
and the seals are smooth and free from burrs
4. The blade is made of imported high quality steel and has a long service life.
5. Automatic operation: just set the cut length and quantity you need, and the rest of the work is done automatically.
|
Model |
SA-R120XZ |
SA-R160XZ |
|
Cutting length |
1-9999mm |
1-9999mm |
|
Max. cutting width |
Blades width is 120mm , Straight cutting Max. 115MM . Angle cutting 45 °Max. 75MM |
Blades width is 160mm , Straight cutting Max. 155MM . Angle cutting 45 °Max. 115MM |
|
Cutting speed |
100-120 pcs/min |
100-120 pcs/min |
|
Power Supply |
110/220VAC,50/60Hz |
110/220VAC,50/60Hz |
|
cutting type |
Cold and hot cutting |
Cold and hot cutting |
|
Application |
webbings, ribbons, elastic bands, narrow woven fabrics, belts, straps and much more |
webbings, ribbons, elastic bands, narrow woven fabrics, belts, straps and much more |
