Hot and cold cutting machine

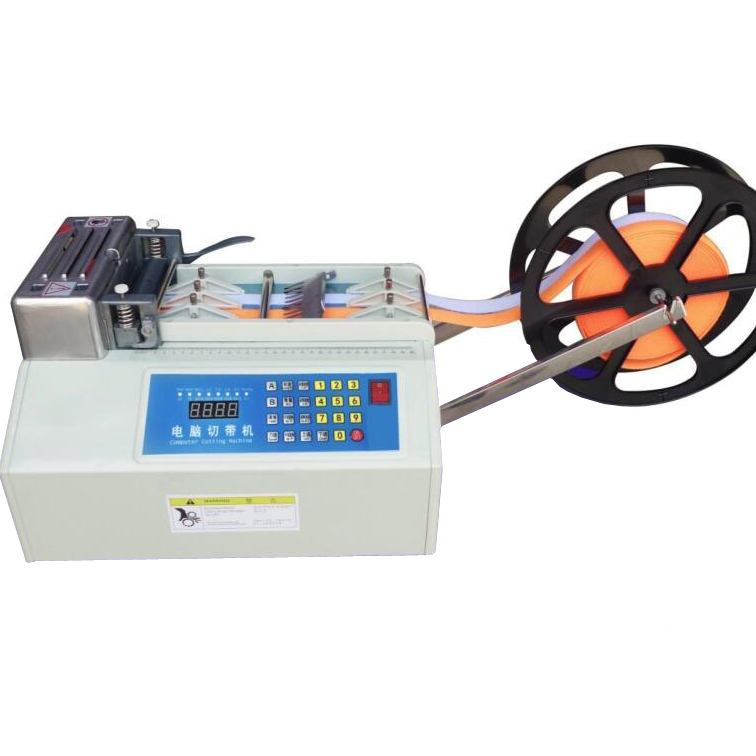

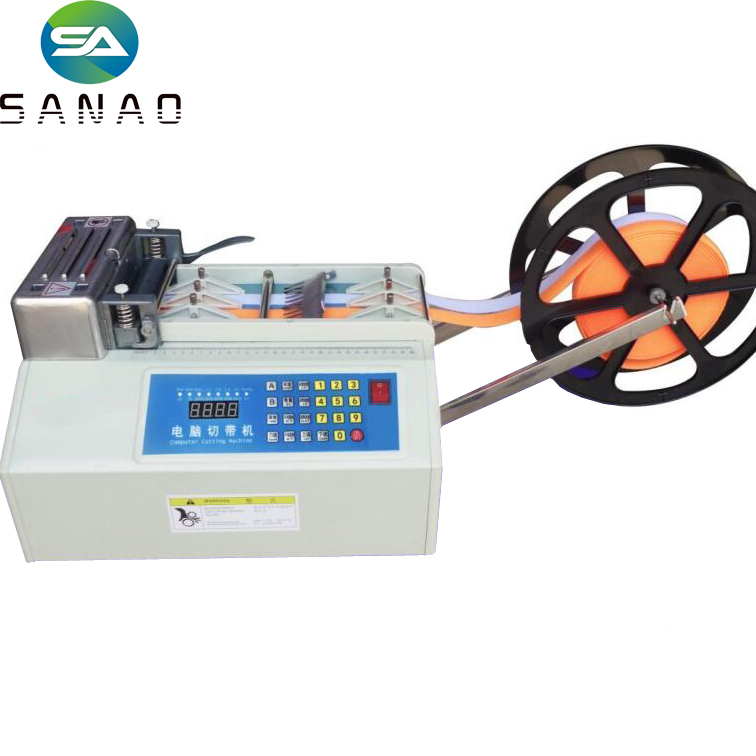

hook and loop circle shape tape cutting machine

hook and loop circle shape tape cutting machine

SA-W120

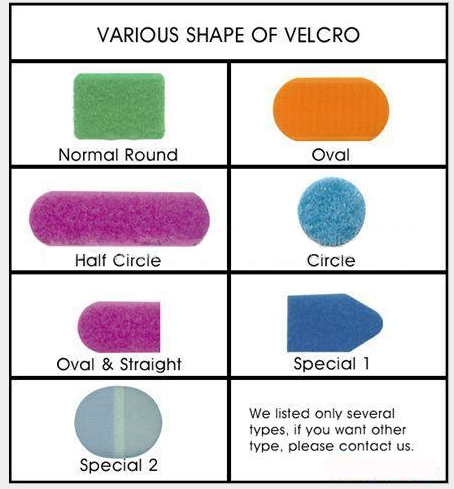

Description: SA-W120 This New cutting Machine is capable of Cutting Velcro ( Hook & Loop Tape ) up to 115 wide and to 10m in length . It's designed to cut the Hook Loop Tape with a Flat Edge , Round Edge , Oblique Edge / Angle etc, The blades is custom made via cutting shape . It's can cutting multi strip at one time .
INQUIRY EMAIL

SA-W120 This New cutting Machine is capable of Cutting Velcro ( Hook & Loop Tape ) up to 115 wide and to 10m in length . It's designed to cut the Hook Loop Tape with a Flat Edge , Round Edge , Oblique Edge / Angle etc, The blades is custom made via cutting shape . It's can cutting multi strip at one time .

Features:
1.Easy operation,it can cut automatically once set up the cutting length and quantity.
2.Self protection function,it will stop automatically if the materials run out during the operation.
3.High speed,120 pcs per minute(50mm length for example)
4.High accuracy,the cutting length is accurate according to a stepping motor.

5.it can work for two Velcro tapes and cut different shapes at the same time.

Model	SA-W120	SA-W120H
Available width	1-115mm	1-115mm
Cutting length	1-9999mm	1-9999mm
Power	200W	200W
cutting Knife	Cold cutting	Cold and hot cutting
Cutting speed	120pcs/min	120pcs/min
Cutting precision	0.1mm	0.1mm
Electrical connection	AC 220/110V/50/60HZ	AC 220/110V/50/60HZ
