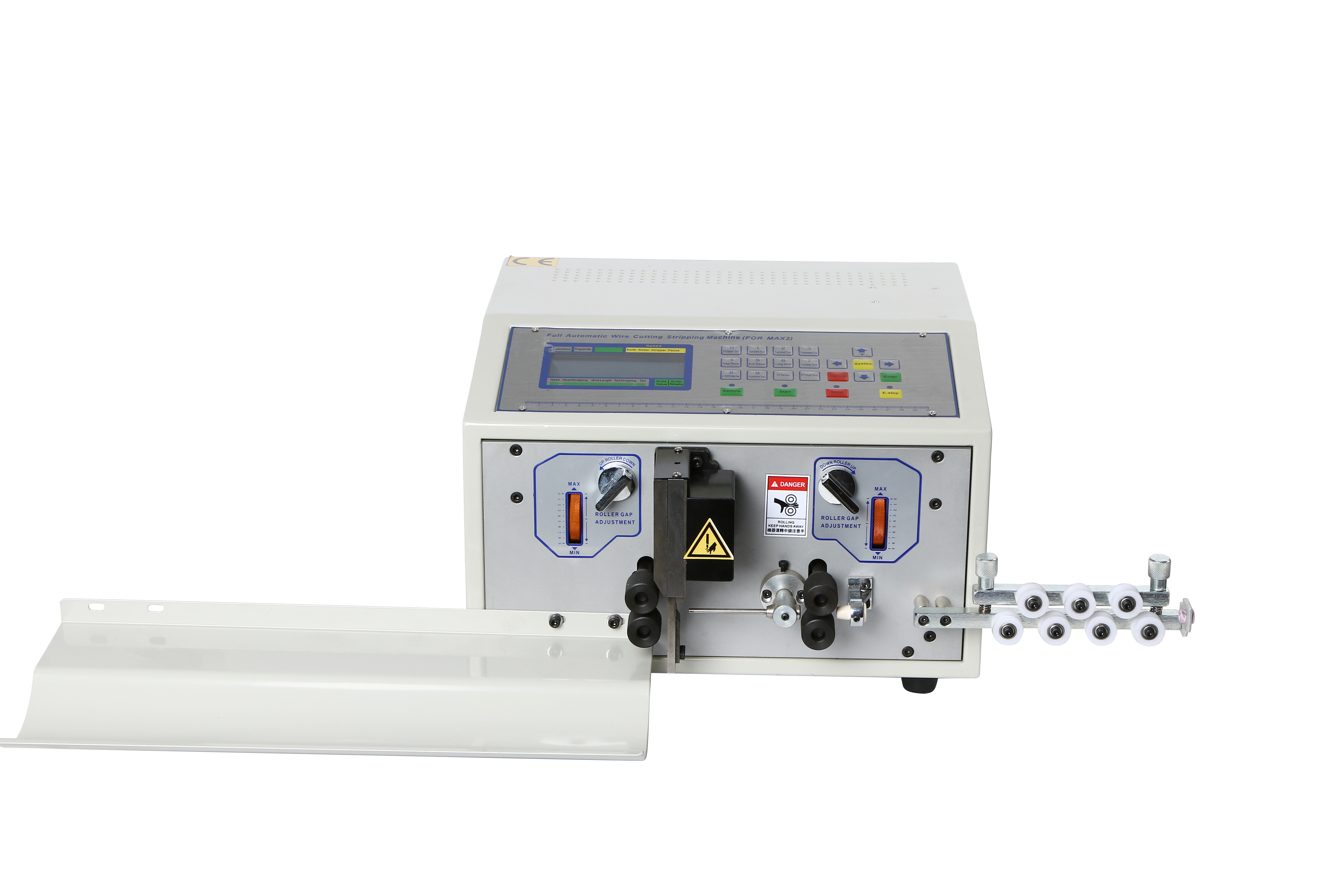

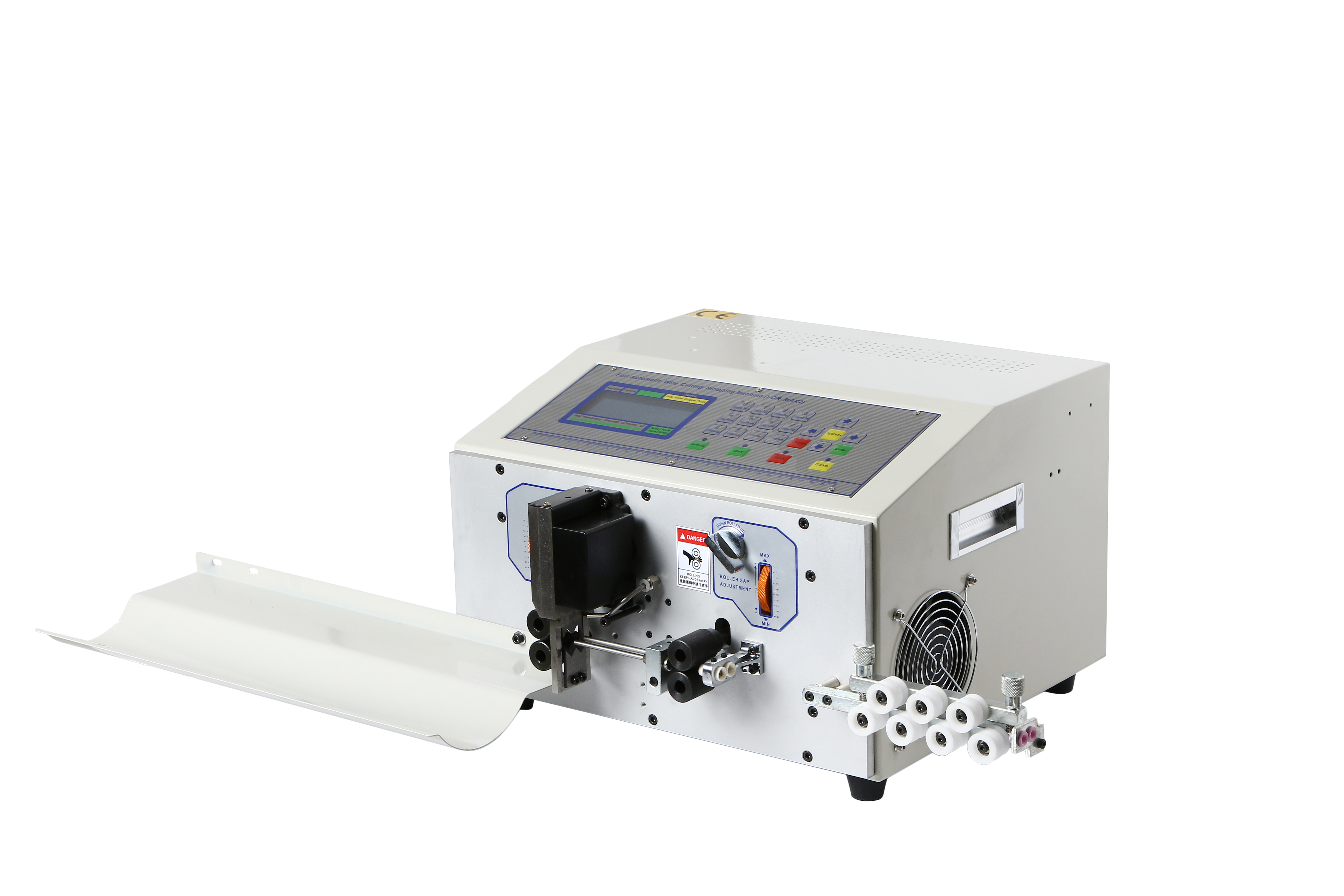

cable cutting and stripping machine for small cable
Stripping wire range: 0.1-4.5mm²,Full automatic cut length and stripping both end,Widely used in wire harness processing industry for automotive electrical appliances, instrumentation,lamps, household appliances, It’s Greatly Improved stripping speed and save labour cost
Introduction:
1. It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.

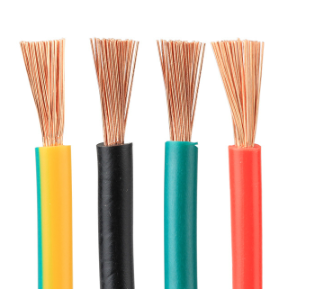

2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc
3.Easy to operate program with English display , stable quality with 1 year warranty and low maintenance,
4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.
5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.
Model
SA-208DB
SA-208DB2
SA-208E
Conductor
Cross-Section
0.1-4.5mm²
(process 1 wire) 0.1-2.5mm² (process 2 wire)
0.1-4.5mm²
(process 1 wire) 0.1-2.5mm² (process 2 wire)
0.1-4.5mm2
Stripping Length
Head stripping
length :0-35mm Tail stripping length
:0-15mm
Head stripping
length :0-50mm Tail
stripping length :0-30mm
Head stripping
length :0-100mm Tail
stripping length :0-50mm
Cutting Length
1-9999mm
1-9999mm
1-100,000mm
Cutting Length
Tolerances
≤ (0.002*L)mm
≤ (0.002*L)mm
≤ (0.002*L)mm
Intermediate
Stripping
Max 11 sections
Max 11 sections
Max 11 sections
Conduit Diameter
Φ6mm
Φ6mm
Φ6mm
Display Screen
Chinese /
English LCD Screen
Production Rate
5000-10000pcs/h
5000-10000pcs/h
10000-20000pcs/h
Drive Method
4 wheels drive
4 wheels drive
6-wheel
drive
Power
160W
200W
500W
Power Supply
110/220VAC,
50/60Hz
