High Precision Terminal Crimping Machine

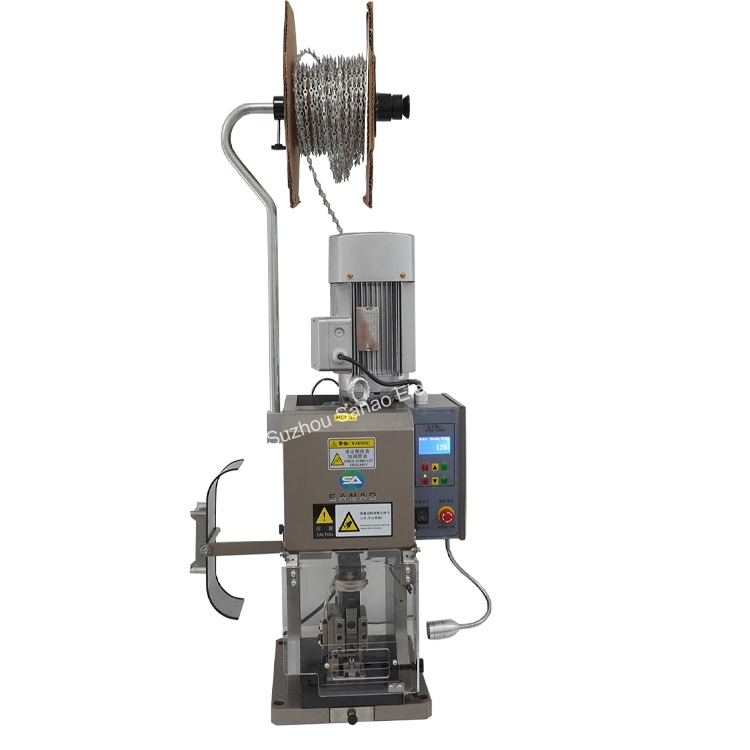

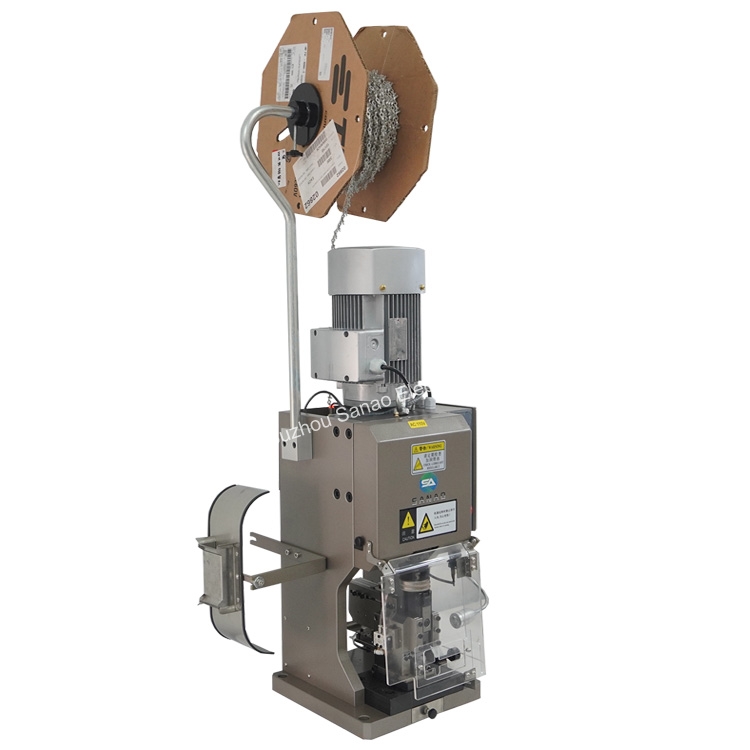

This machine is High-precision mute terminal machine, The body of the machine is made of steel and the machine itself is heavy, the precision of press-fit can be up to 0.03mm, optional terminal pressure monitor, pressure abnormalities can be automatically alarmed!

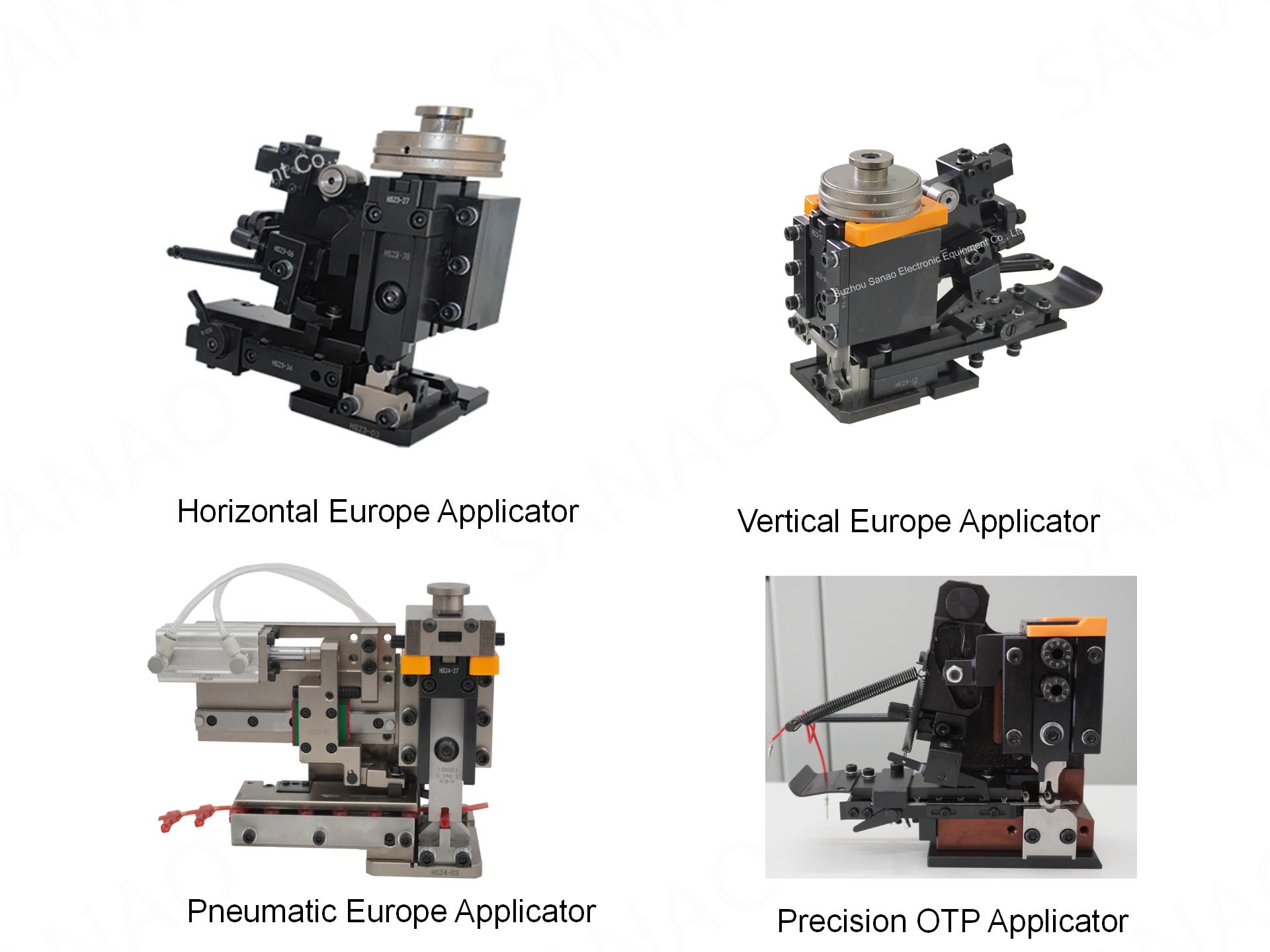

2.The standard machine is matched with 30mm stroke OTP bayonet mould, which supports quick mould replacement. Other 40 stroke European mould, JST and KM mould can be customized, when playing different terminals, only need to replace the Applicator or blades ( Horizontal Applicator can be replaced with blades, but need to adjust the machine applicator, requiring employees to have basic experience in adjusting terminal pressure monitor). requiring employees to have basic experience in adjusting applicator).
3.Adopting inverter motor drive, the motor only starts to work when crimping, the noise is smaller than the traditional terminal machine, power saving, the control panel has a counter, crimping speed and crimping force can also be set. The top of the slider is equipped with a knob to adjust the stroke, which is convenient to adjust the crimping stroke.
4.The machine is equipped with a safety cover, open the cover the machine stops running, a good guarantee of staff safety.
