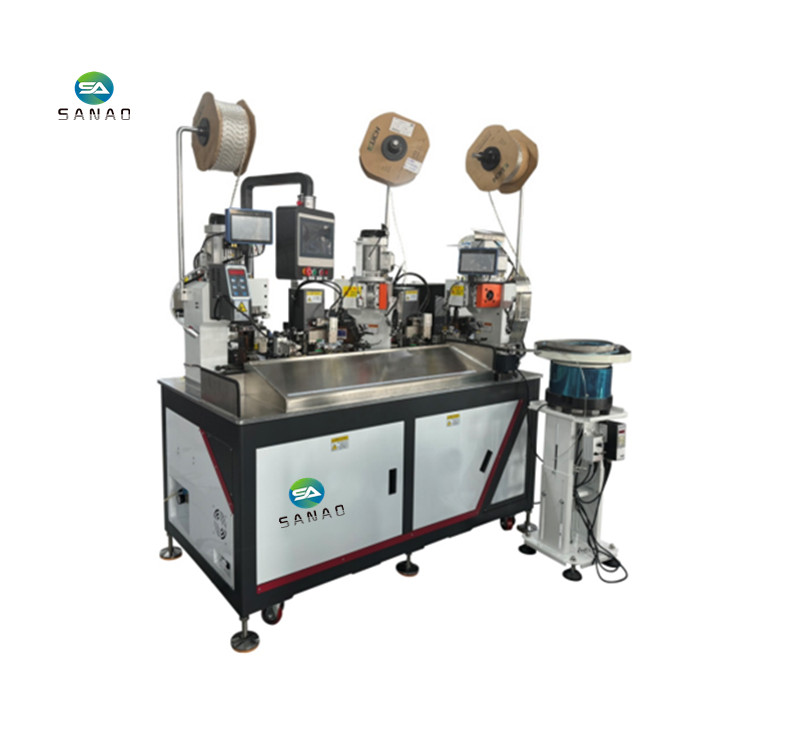

Automatic Wire Crimping and Insulated Sleeve Insertion Machine

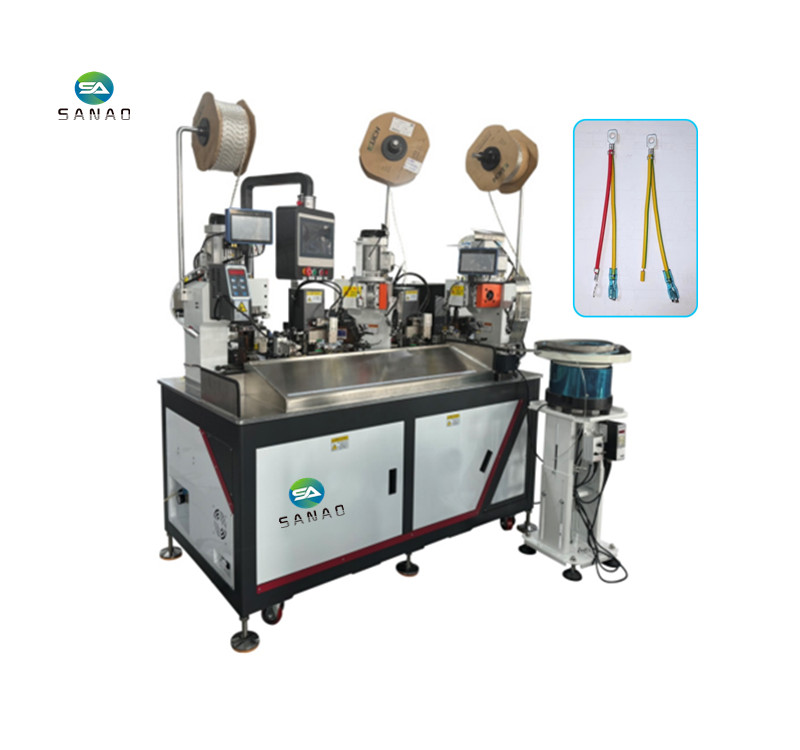

SA-1690-3T This is Automatic Wire Crimping and Insulated Sleeve Insertion Machine,Insulated Sleeve Automatic feeding by vibratory discs,There are 2 sets of feeding wire parts and 3 crimping terminal stations on the machine,Therefore, it supports the combination of two wires with different wire diameters to crimp three different terminals. After cutting and stripping the wires, one end of the two wires can be combined and crimped into one terminal, and the other two ends of the wires can also be crimping to different terminals, The machine has a built-in rotation mechanism, and the two wires can be rotated 90 degrees after they are combined, so they can be crimped side by side, or stacked up and down.

The whole machine adopts the concept of modular flexible design, one machine can easily process many different products, and each functional module can be opened or closed freely in the program,Machine Main parts brand Taiwan HIWIN screw, Taiwan AirTAC cylinder, South Korea YSC solenoid valve, leadshine servo motor ( China brand ) , Taiwan HIWIN slide rail, Japanese imported bearings.This is a high quality machine.

The terminal crimping machine is integrally formed of ductile iron. The whole machine has strong rigidity and stable crimping height,standard machine with a stroke of 30mm OTP high precision applicator , compared with ordinary dies, high precision applicator feed crimp more stable, crimp better results! . Different terminals only need to replace the applicator, This is easy to operate,and multi-purpose machine.The stroke of the machine can be custom made to 40MM, suitable for European style applicator, JST applicator, our company can also provide customers with high quality European style applicators and so on. Please contact us for more information.

Colour touch screen operation interface, parameter setting is intuitive and easy to understand. The machine has a programmes saving function, which is convenient to use directly next time without setting the machine again, simplifying the operation process.
Advantage
1: Different terminals only need to replace the applicator, This is easy to operate,and multi-purpose machine.
2: Advanced software and English colour LCD touch screen make it easy to operate. All parameters can be directly set on our machine
3: The machine has a programmes saving function,simplifying the operation process.
4 .Adopting 7 sets of servo motors, the machine quality is more stable and reliable.
5: Machines can be customised according to customer requirements, welcome to inquire!
