Coaxial Cable stripping machine

  • Max.45mm High Voltage Cable Coaxial Wire Stripping Machine
  • Max.45mm High Voltage Cable Coaxial Wire Stripping Machine
  • Max.45mm High Voltage Cable Coaxial Wire Stripping Machine
Max.45mm High Voltage Cable Coaxial Wire Stripping MachineMax.45mm High Voltage Cable Coaxial Wire Stripping MachineMax.45mm High Voltage Cable Coaxial Wire Stripping Machine

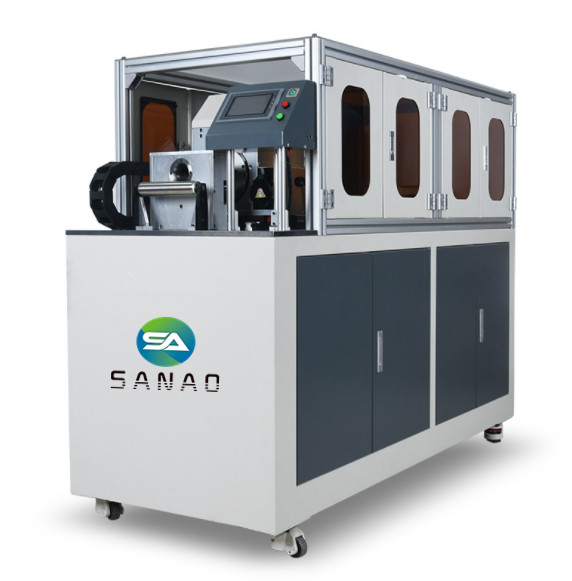

Max.45mm High Voltage Cable Coaxial Wire Stripping Machine

  • SA-5010
  • Description: Processing wire range: Max 45mm ,.SA-5010 High Voltage Cable Coaxial Wire Stripping Machine ,Max. stripping outer jacket 1000mm, Maximum wire diameter 45MM
  • INQUIRY   EMAIL


New Energy Charging Cables Stripping machine High Voltage Cable Coaxial Wire Stripping Machine

Processing wire range: Max 45mm ,.SA-5010 High Voltage Cable Coaxial Wire Stripping Machine ,Max. stripping outer jacket 1000mm, Maximum machining diameter 45MM
Introduction:
1.SA-5010 Max. stripping outer jacket 1000mm, Maximum machining diameter:45MM

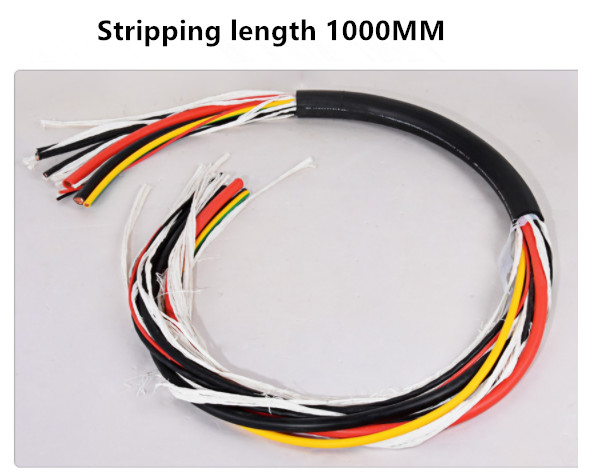

2.This machine is designed for extra thick and high quality cables such as new energy charging guns, and can be stripped up 1m ( Other length can customized ).

3. the cable strips processed by this model are neat and not hurt. And the inner layer the appearance is more perfect.

4.The cable is stripped neatly and does not damage the inner layer. Touch screen operation, convenient to set parameters.

Model

SA-5010

Product name

Charge gun cable stripping machine

Maximum machining diameter

45mm

Cutting depth unit

0.01mm

Maximum stripping length

1000mm

Power supply

AC110/220V 50hz/60Hz

pressure

0.5Mpa

Power supply

2000w

Blades Materials

4 pieces of imported high speed steel

Weight

380KG

Dimension

1680mm*680mm*1300mm
