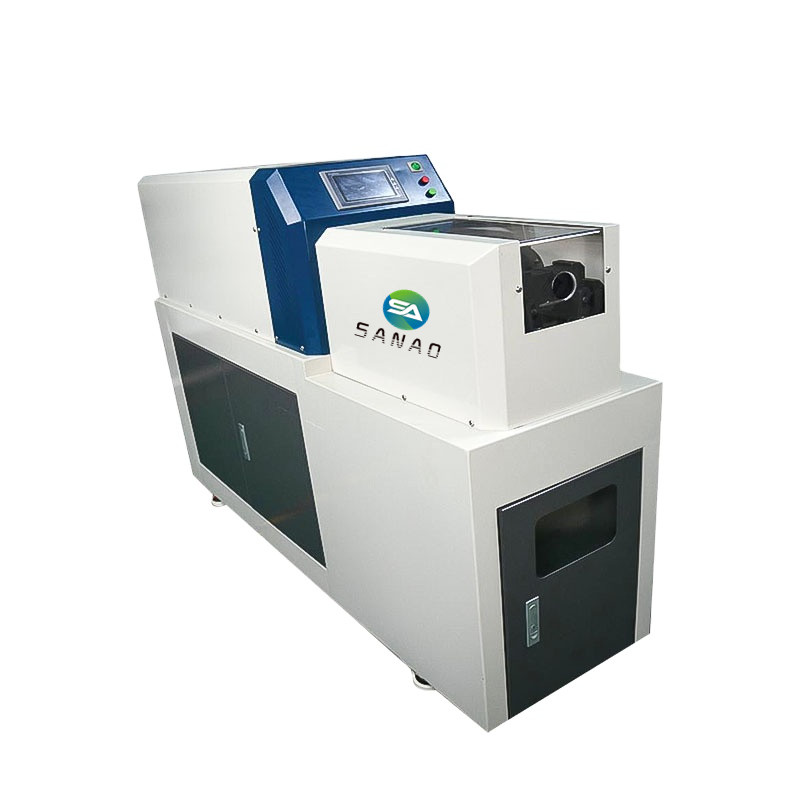

New Energy Charging Cables Stripping machine High Voltage Cable Coaxial Wire Stripping Machine
Processing wire range: Max 35mm ,SA-3530 High Voltage Cable Coaxial Wire Stripping Machine ,Max. stripping outer jacket 300mm, Maximum machining diameter 35MM
Introduction:
1.SA-3530 Max. stripping outer jacket 300mm, Maximum machining diameter 35MM
2.This machine is designed for extra thick and high quality cables such as new energy charging guns, and can be stripped up 1m ( Other length can customized ).
3. the cable strips processed by this model are neat and not hurt. And the inner layer the appearance is more perfect.
4.The cable is stripped neatly and does not damage the inner layer. Touch screen operation, convenient to set parameters.
Model |
SA-3530 |
Product name |
Charge gun cable stripping machine |
Maximum machining diameter |
8-35mm |
Cutting depth unit |
0.01mm |
Maximum stripping length |
300mm |
Power supply |
AC110/220V 50hz/60Hz |
pressure |
0.5Mpa |
Power supply |
500w |
Blades Materials |
4 pieces of imported high speed steel |
