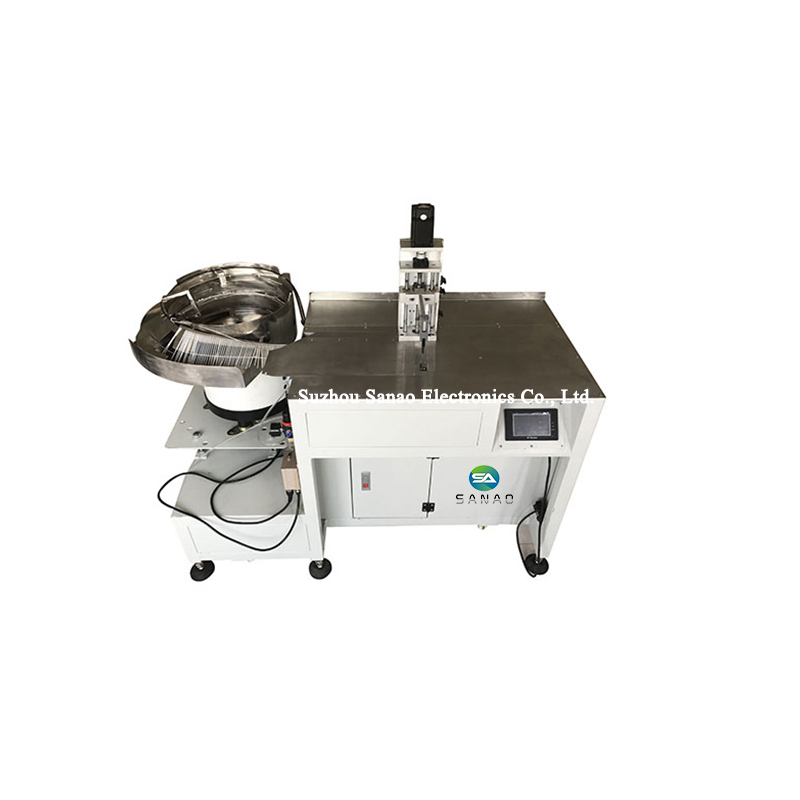

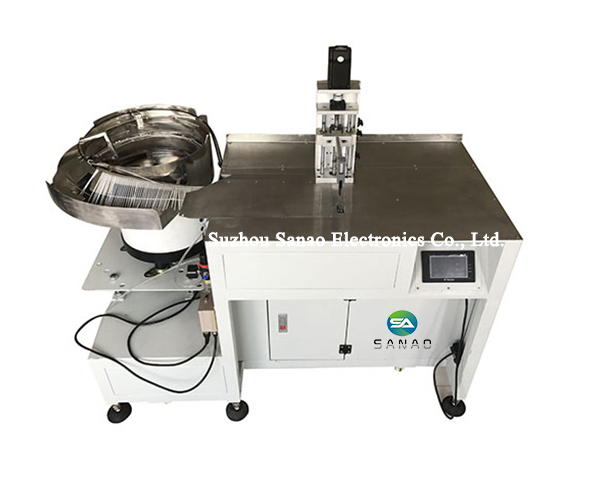

This nylon cable tying machine adopts vibration plate to feed the nylon cable ties to work position continuously. The operator only need to put the wire harness to correct position and then press down the foot switch, then the machine will finish all tying steps automatically Widely used in electronics factories, bundled TVs, computers and other internal electrical connections, lighting fixtures, motors, electronic toys and other products in fixed circuits, mechanical equipment oil pipelines fixed, ship cables fixed. The car is packed or bundled with other objects, and can also be used for strapping items such as wire, air-conditioning capillaries, toys, daily necessities, agriculture, gardening, and handicrafts.
1 .This nylon cable tying machine adopts vibration plate to feed the nylon cable ties to work position continuously. The operator only need to put the wire harness to correct position and then press down the foot switch, then the machine will finish all tying steps automatically.
2.The automatic cable tie tying machine is widely used in automotive wire harness, appliance wire harness and other industries.
3.PLC touch screen control, clear and intuitive, easy to operate.
4.High degree of automation, good consistency, fast speed.
5.The tightness and tying length can be set through program, and the operator only needs to put the wire harness around the binding mouth, and the machine automatically senses and ties wires.
|
Model |
SA-LN200 |
|
Name |
cable tie tying machine |
|
Available Cable Tie Length |
80mm/100mm/120mm/130mm/150mm/160mm/180mm ( Other can be customized ) |
|
1500pcs/h |
|
|
Power Supply |
110/220VAC,50/60Hz |
|
Power |
100W |
|
60*60*72cm |
|
|
Weight |
120 kg |
