  • SA-LU100

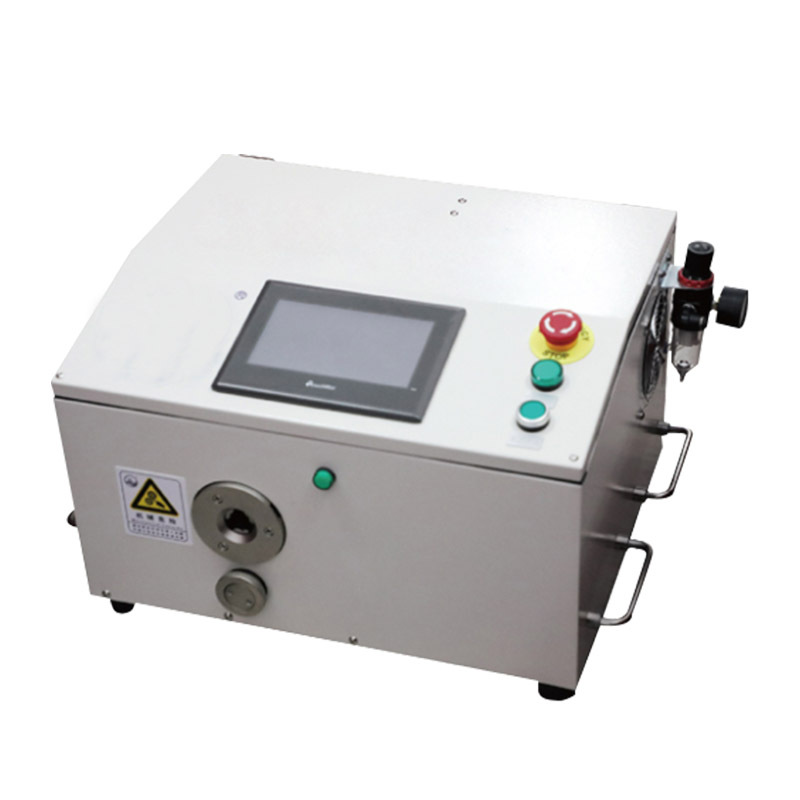

  • Description: SA-LU100 semi automatic Solar Conector screwing machine electric nut tightening machine.
  • INQUIRY   EMAIL


1.The machine uses servo motor, the torque of the connector can be set directly through the touch screen menu or the position of the connector can be directly adjusted to complete the required distance.

2.It can tighten the nuts on the female and male connectors.It is fast in tightening speed and simple operation with stable performance in order to save the labor cost.

3.The machine uses imported sensors for more accurate positioning,At the same time, an alarm device can also be installed. If the light is on, it means that the insertion position is correct. If the light is not on, it means that it is not placed in the correct position.

4.The main parts of the machine are imported original parts, so the machine operates accurately and quickly, is simple to operate, and has stable performance, which can reduce labor costs.

5.The display screen of the machine is an English touch screen, and data can be entered on the display screen, which simplifies the use of the machine.

Model SA-LU100
Capacity 20~40pcs/min
Function Tightening nuts of connector
Air pressure 5-6kg clean and dry air
Voltage 220V/110V/50HZ/60HZ
Power 400W
Dimension 500*400*280mm
Weight 50kg
