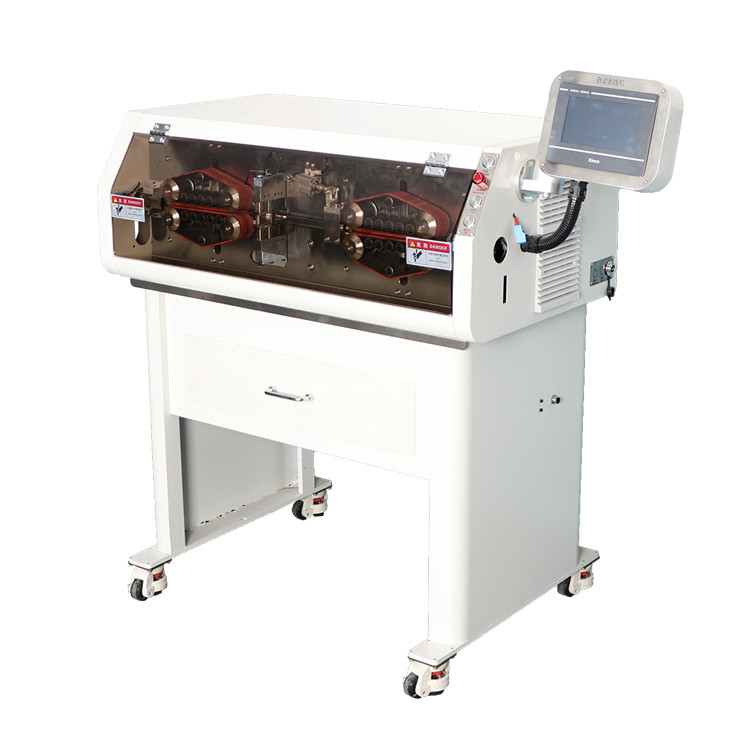

Big Cable Cutting Stripping equipment
Processing wire range: 1-70mm²,Full automatic large wire stripping and cutting machine, or stripping outer jacketed of sheathed cable (Max. 19 core) ,It’s Greatly Improved stripping speed and save labour cost.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy
Introduction：
1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.

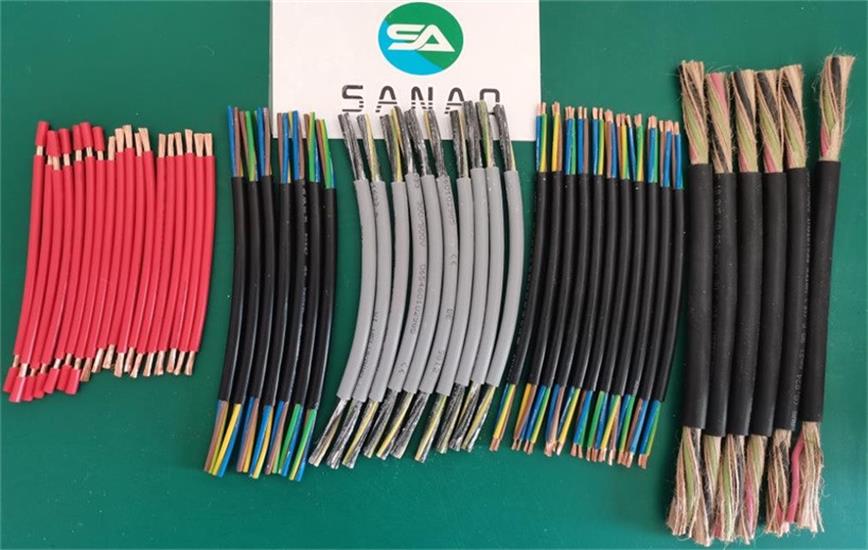

2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc
3.Easy to operate program with English display , stable quality with 1 year warranty and low maintenance,
4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.
5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.
Model
SA-H03-S
SA-H07-S
Conductor
Cross-Section
4-30mm²
10-70mm²
Cutting Length
1-99999mm
1-99999mm
Cutting Length
Tolerances
≤(0.002*L) mm
≤(0.002*L) mm
Jacket Stripping
Length
Head 1-200mm; Tail 1-120mm
Head 1-800mm; Tail 1-260mm
Inner Core Stripping
Length
/
/
Conduit Diameter
Φ16mm
Φ25mm
Production Rate
Single wire
:2300pcs/h
single wire :
2800pcs/h
Display Screen
7 inch touch screen
7 inch touch screen
Drive Method
16 wheels drive
32 wheels drive
Wire Feed Method
Belt feeding wire, no
indentation on cable
Belt feeding wire, no
indentation on cable
Sheath wire :800pcs/h (base on wire and
cutting length)
Sheath wire 800pcs/h (base on wire and
cutting length)
