Automatic Testing machine

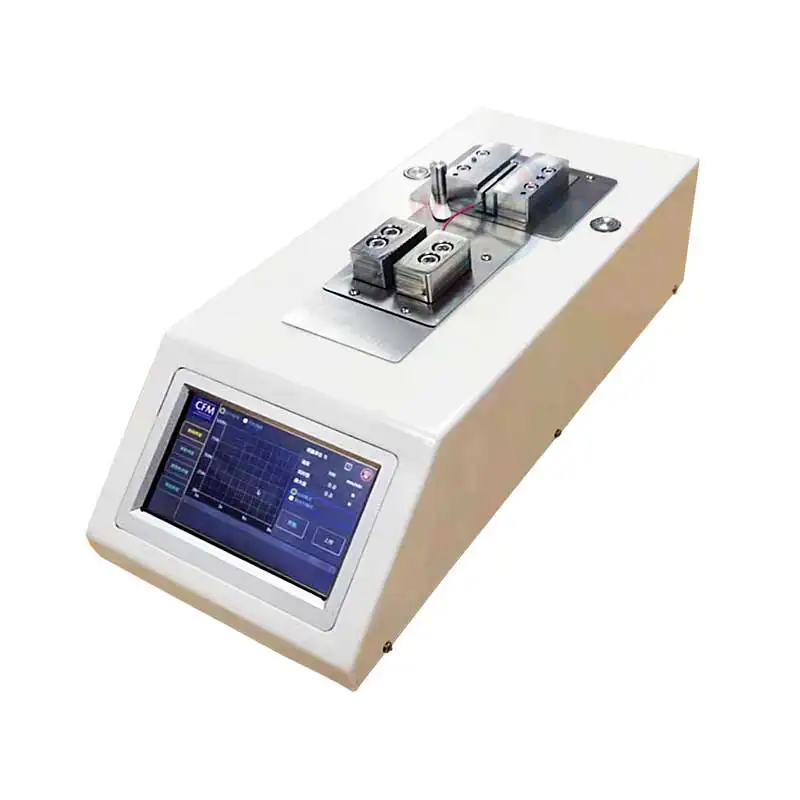

1000N Terminal Crimping Force Testing Machine

Model :TE-100
Description: Wire Terminal Tester accurately measures the pull-off force off crimped-on wire terminals. When the test force value exceeds the set upper and lower limits, it will automatically determine NG. Quick conversion between Kg, N and LB units,real-time tension and peak tension can be displayed at the same time.
INQUIRY EMAIL

Wire Terminal Tester accurately measures the pull-off force off crimped-on wire terminals. The pull tester is an easy to use all-in-one, single-range solution for a wide range terminal testing applications,It is designed to detect the pull-out force of various wire harness terminals

Feature
1.Automatic reset: reset automatically after pulling off the terminal
2.System setting: It is convenient to set system parameters such as test upper and lower limits, calibration, and pull-off
conditions.
3.Force limit: When the test force value exceeds the set upper and lower limits, it will automatically determine NG.
4. Quick conversion between Kg, N and LB units
5. Data display: real-time tension and peak tension can be displayed at the same time.

Model	T E-100
Function	Terminal wire tensile tester
Dimensions	(L×W×H) 430×180×210mm
Weight	10kg
Power supply	AC220V 50/60HZ
Power	100W
Testing range	1000N or 100KG
Testing accuracy	0.04N
Warranty	1 Year
