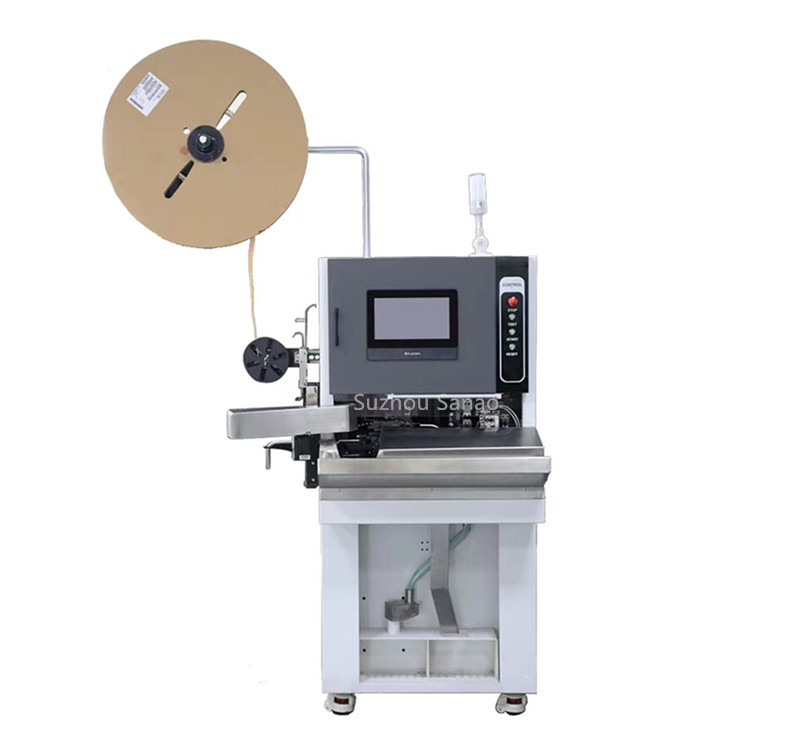

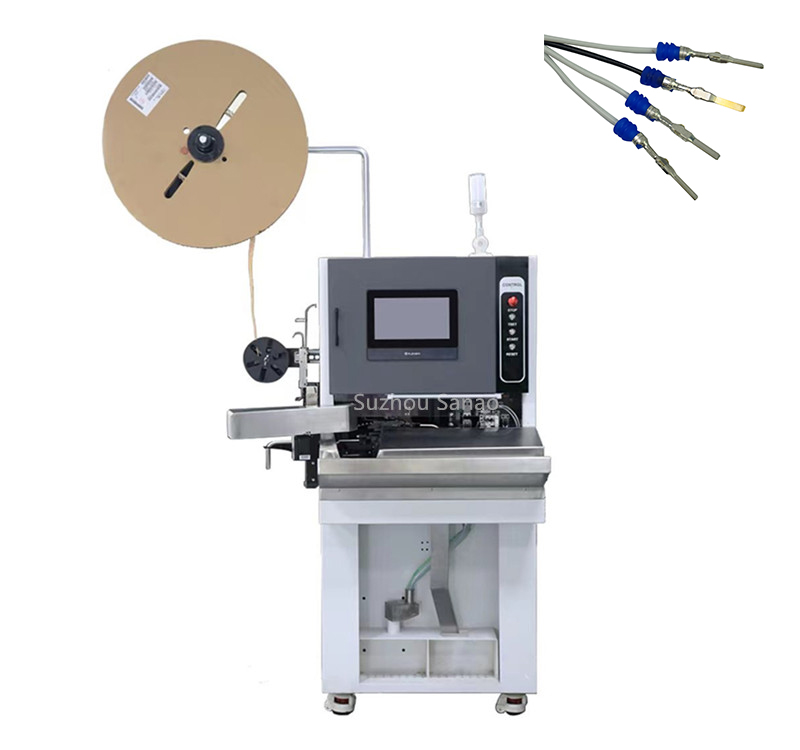

  • Model:SA-FA300-2
  • Description: SA-FA300-2 is a collection of stripping waterproof bolt insertion crimping terminal as one of the high-efficiency wire harness processing machine, multi-station in one for processing, greatly improving the production speed.
  • INQUIRY   EMAIL

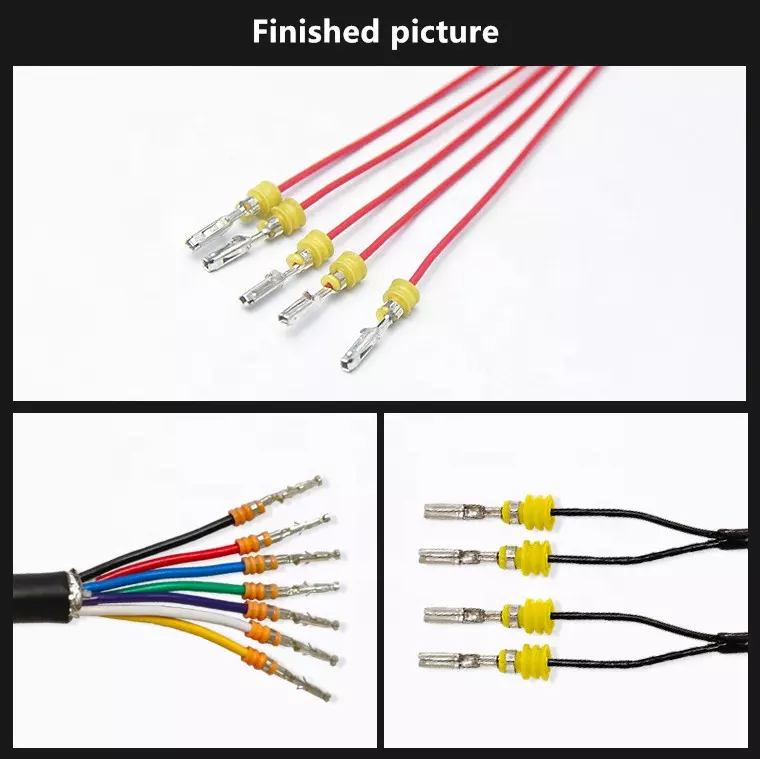

SA-FA300-2 is a collection of stripping waterproof bolt insertion crimping terminal as one of the high-efficiency wire harness processing machine, multi-station in one for processing, greatly improving the production speed, frugal production production costs. it realizes the three processes of wire seal loading, wire stripping and terminal crimping at the same time.


1.Terminal machine adopts high efficiency servo motor drive, the applicator adopts the high precision applicator, make the crimping stable, fast and reliable, also can do high silence, different terminals, only need to replace the applicator, easy to operate.
2.Stripping slide with servo motor drive, screw drive, to ensure accurate stripping length, cutter with servo motor drive, screw drive, non-traditional cylinder stripping, only need to set the value of the knife on the screen with the stripping length can be.
3.Waterproof plug feeding structure, the use of vibrators discharge, compressed air feeding, non-traditional
Pin feeding method, so there is no risk of waterproof plug breakage, and no wear parts, different size of the waterproof plug, just replace the waterproof plug feeding guide. The machine is really multi-purpose, saving production investment costs.
4.Color touch screen operation interface, peeling length, waterproof plug penetration depth, playing terminal position and other functions can be set through the program. Program memory function can save the processing parameters of different products into the database, when switching products can be a key to call out the corresponding parameters.


Model

SA-FA300-2

Function:

Stripping & Crimping & Sealing

Waterproof plug size

Less than 10*10mm

Applicable wire range

0.2-2.5mm2

Stripping length

0.1-10mm

Cut precision

0.05mm-0.1m

Stroke

40mm

Crimp capacity

2.0T( Can custom made )

Power

1500W

Power

220V/110V/50/60HZ

Display language

Chinese/English

Compressed air

0.5-0.7MPA

Machine size

850mm*880mm*1300mm (length, width and height)

Weight

280KG

CFM

Optional
