Ultrasonic wire splicing machine

Model : SA-S2030-Z
Description: Ultrasonic wire harness welding machine. The Square of welding range is 0.35-25mm². The welding wire harness configuration can be selected according to the welding wire harness size
INQUIRY EMAIL

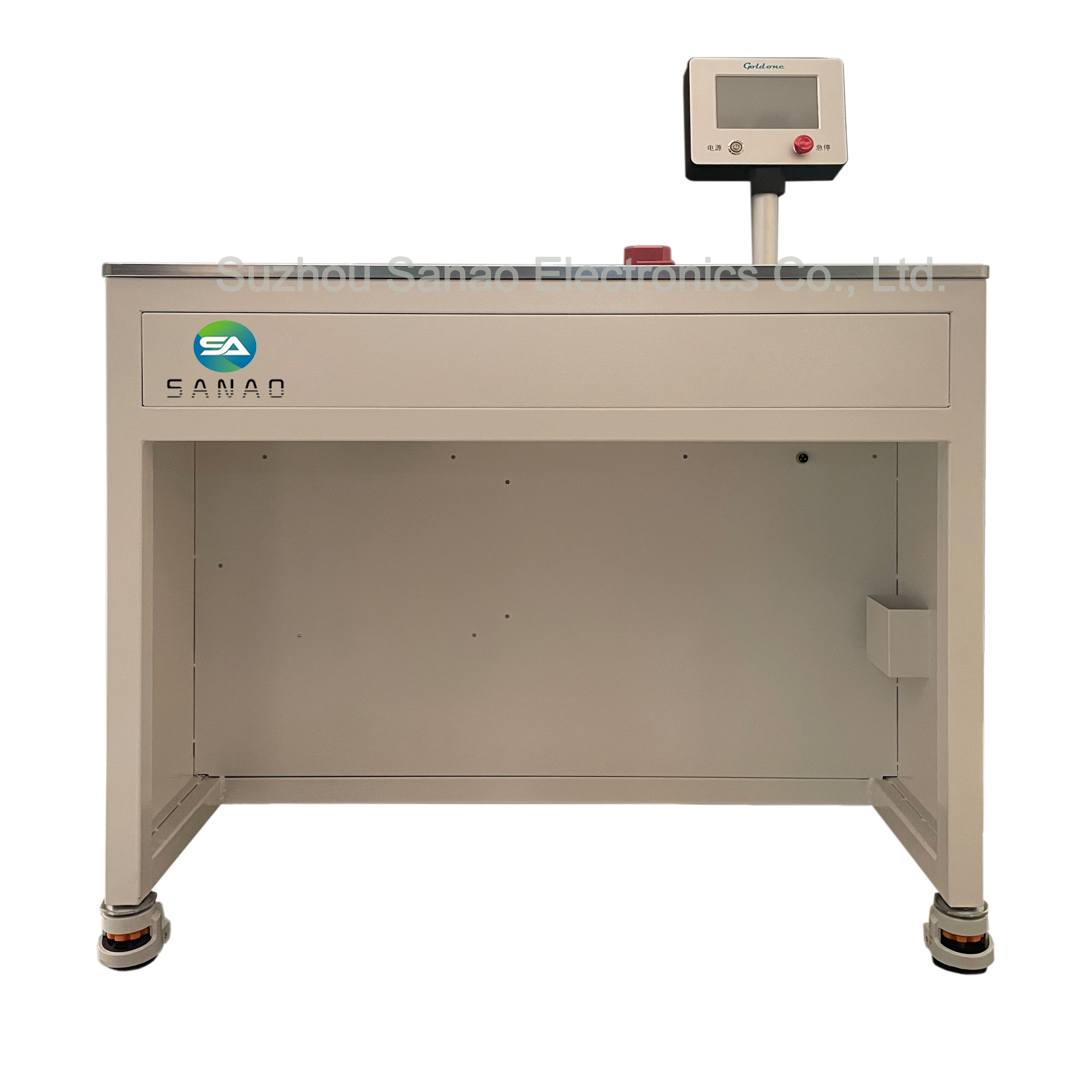

This is a Floor-standing Ultrasonic wire harness welding machine. The Square of welding range is 0.35-25mm². The welding wire harness configuration can be selected according to the welding wire harness size, which can ensure better welding results and higher welding accuracy.

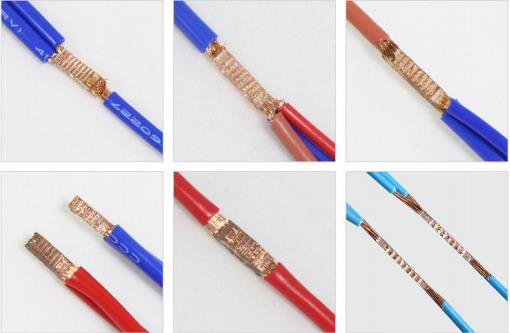

Ultrasonic welding energy is evenly distributed and has high welding strength, the welded joints are extremely resistant.

Feature

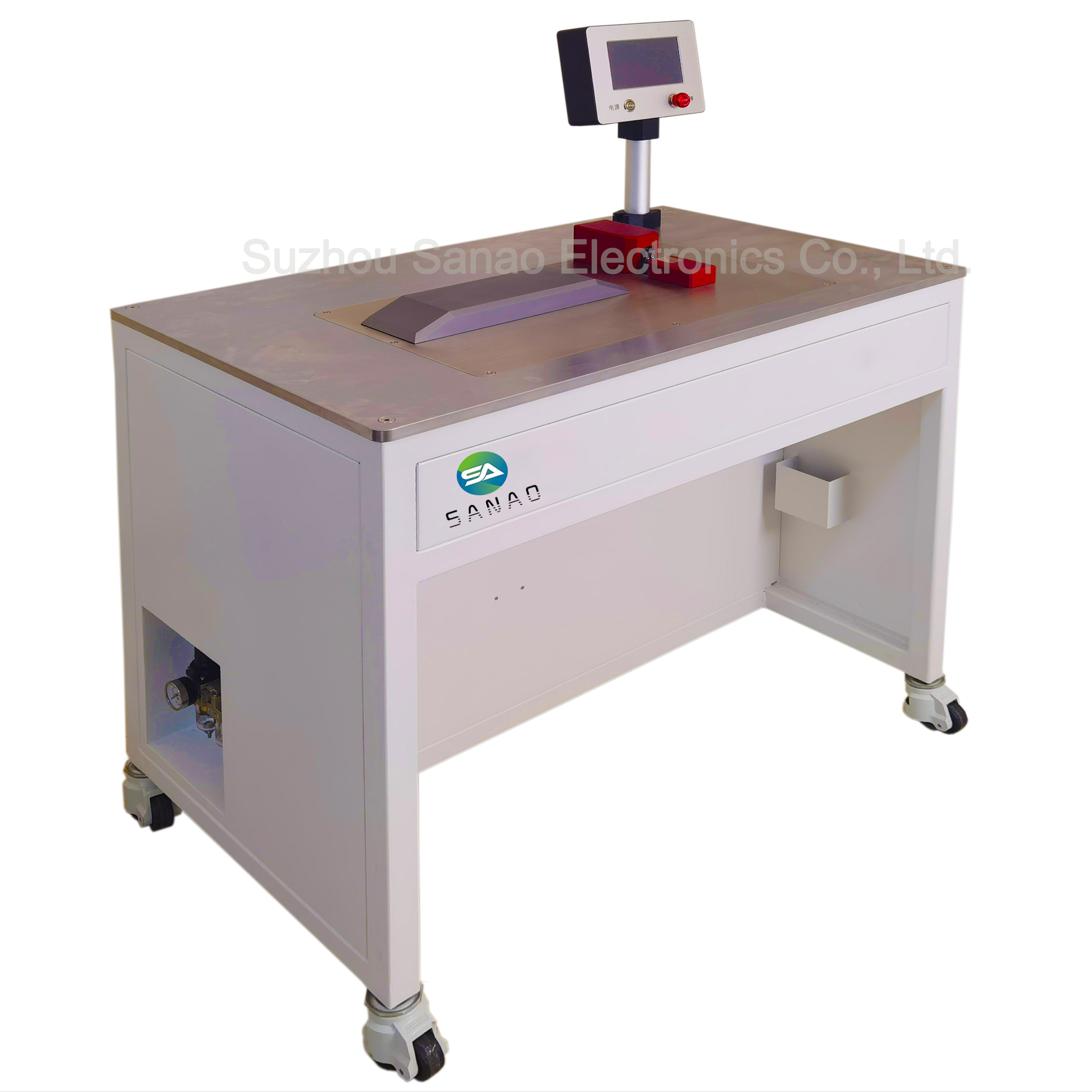

1. Upgrade the desktop operating table and install rollers on the corners of the table to facilitate the movement of the equipment.
2. Independently develop generators, welding heads, etc., using a motion system of cylinder + stepper motor + proportional valve.
3. Simple operation, easy to use, intelligent full touch screen control.
4. Real-time welding data monitoring can effectively ensure the welding yield rate.
5. All components undergo aging tests, and the service life of the fuselage is as high as 15 years or more.

Model	SA-S2030-Z	SA-S2040-Z	SA-S2060-Z
Voltage	220V；50/60Hz	220V；50/60Hz	220V；50/60Hz
Ultrasonic frequency	20KHZ	20KHZ	20KHZ
Power	3000W	4000W	6000W
Wire size range	0.35-25mm²	1-35mm²	5-50mm²
Welding efficiency	0.6s	0.6s	0.6s
Dimension	99×60×126cm	99×60×126cm	99×60×126cm
Weight	118KG	118KG	118KG
