Ultrasonic wire splicing machine

Ultrasonic terminal Welding machine

Model : SA-S2040-F

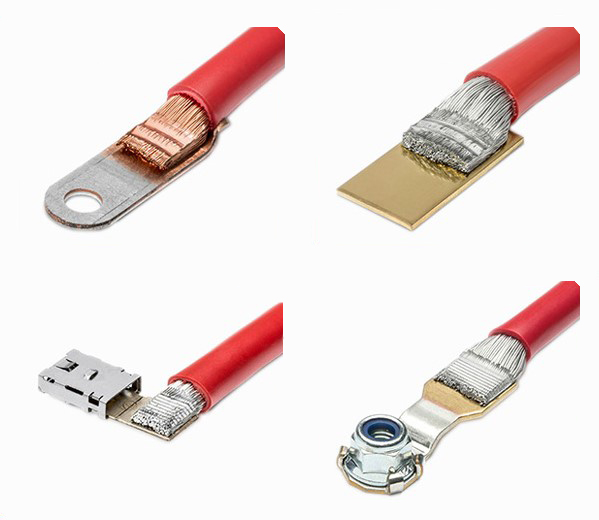

Description: ultrasonic welding machine. The welding size range is 1-50mm².The machine has high precision and high rigidity welding performance, it can solder wire harnesses and terminals or metal foil
INQUIRY EMAIL

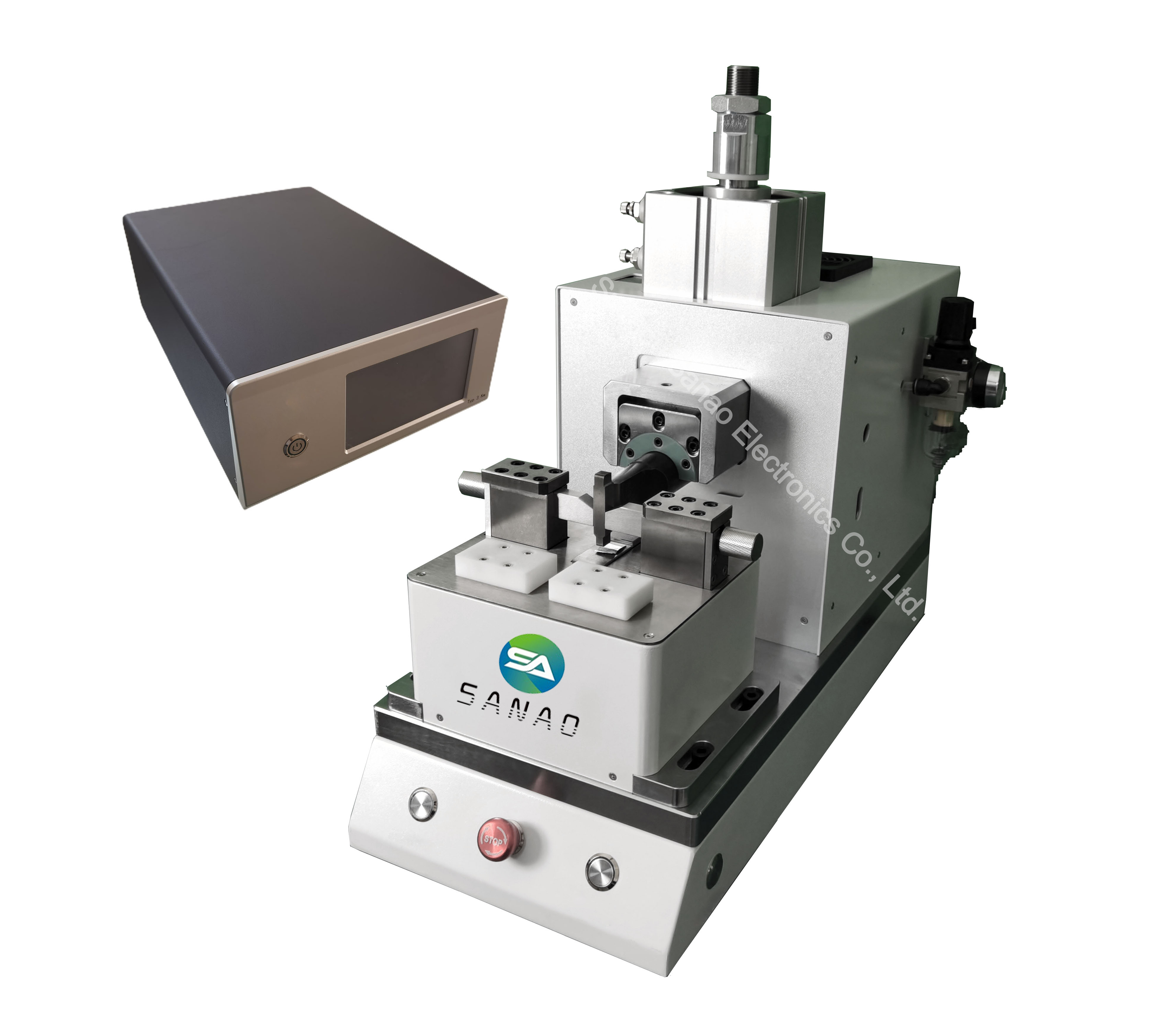

This is a desktop ultrasonic welding machine. The welding size range is 1-50mm².The machine has high precision and high rigidity welding performance, it can solder wire harnesses and terminals or metal foil.

Ultrasonic welding energy is evenly distributed and has high welding strength, the welded joints are extremely resistant.It has exquisite appearance and exquisite structure.Suitable for automobile manufacturing and new energy welding fields.

Feature
1. Upgrade the desktop operating table and install rollers on the corners of the table to facilitate the movement of the equipment.
2. Independently develop generators, welding heads, etc., using a motion system of cylinder + stepper motor + proportional valve.
3. Simple operation, easy to use, intelligent full touch screen control.
4. Real-time welding data monitoring can effectively ensure the welding yield rate.
5. All components undergo aging tests, and the service life of the fuselage is as high as 15 years or more.

Model	SA-S2040-F	SA-S2060-Z
Voltage	220V;50/60Hz	220V;50/60Hz
Ultrasonic frequency	20KHz	20KHz
Power	4000W	6000W
Welding size range	1-50mm²	30-100mm²
Welding efficiency	0.6s/times	0.6s/times
Dimension	615269461mm	10007551353mm
Weight	82kg	132kg
Type	Desktop	Floor-standing
