Automatic Tape wrapping machine

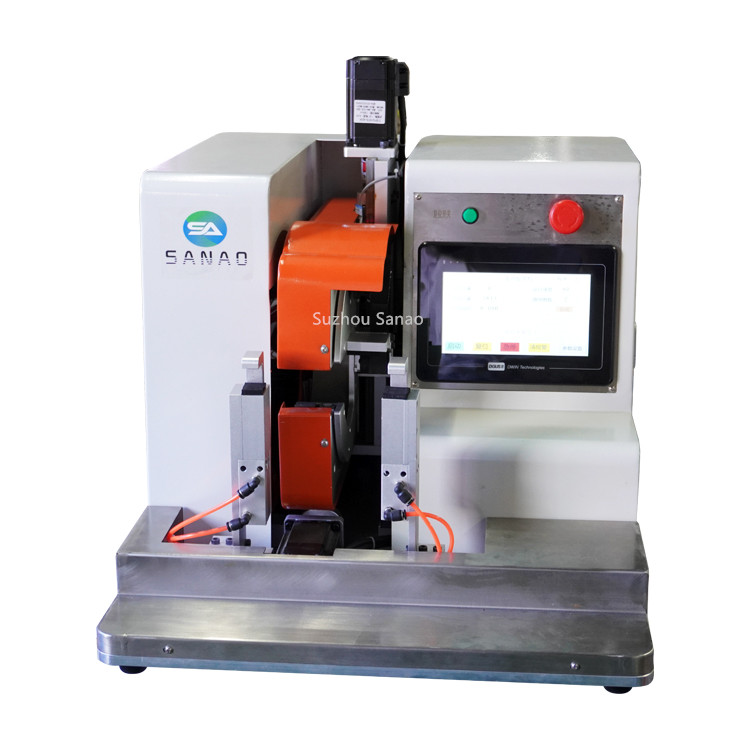

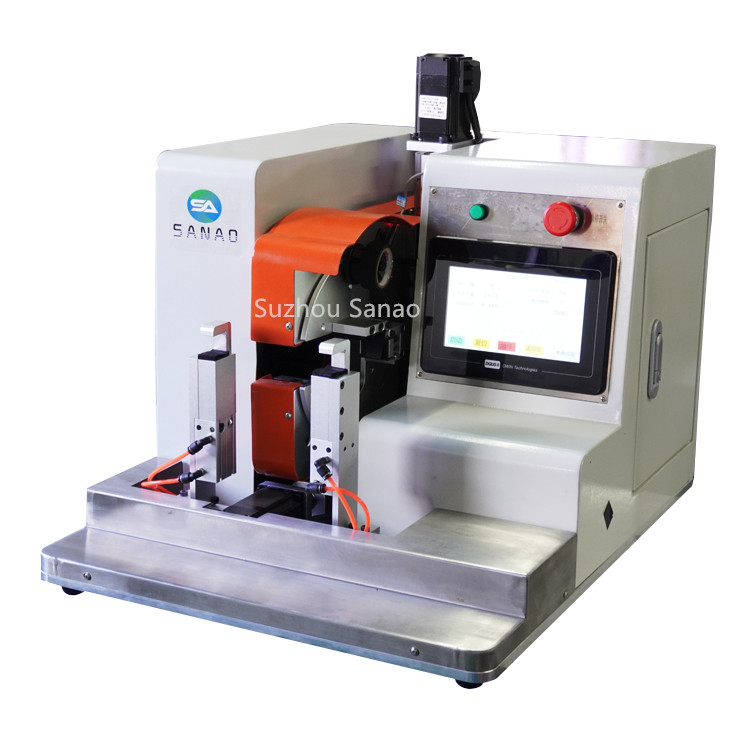

Wire Harness Spot Taping Machine

SA-CR4900
Description: SA-MR4900 is a low-maintenance, as well as reliable machine ,The number of tape wraps circles can be set, e.g. 2, 5, 10 wraps.Suitable for wire spot wrapping .Machine with English display that is easy operate , wrapping circles and speed can directly setting on machine.Automatic wire clamping allows for easy wire changes ,Suitable for different wire sizes.
INQUIRY EMAIL

SA-MR4900 is a low maintenance as well as reliable machine, The number of tape wrapping circles can be set, e.g. 2, 5, 10 wraps.Suitable for wire spot wrapping.Machine with English display, which is easy to operate, Wrapping circles and speed can be set directly on the machine.Automatic wire clamping allows easy wire change, Suitable for different wire sizes.The machine automatically clamps and the tape head automatically wraps tape, making the working environment safer.

Advantage

1. The whole processing range is intelligently designed with simple structure, the whole machine adopts closed-loop stepping drive to make the machine more stable and precise.
2. In the YZ direction, the machine is equipped with high-precision Taiwan TBI/HIWIN imported ball screws and wire rails;
3. Pneumatic components are adopted Taiwan Yadei cylinder, the overall transmission gap of the equipment is small, sensitive action, high precision and stable performance.

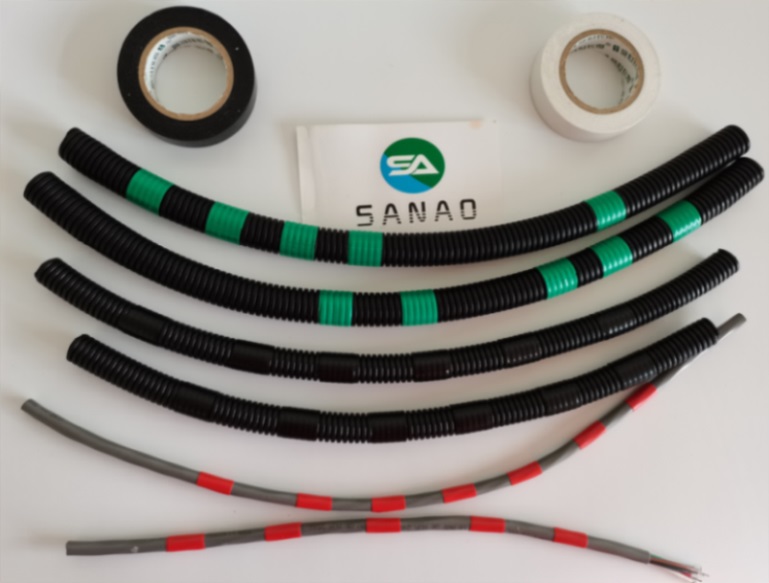

4. It is suitable for the tape winding processing of flat and round products with high precision requirements.

Model	SA-CR4900
Available Wire Dia	Square: 10*20mm (max) Round: 20mm diameter (max) Others can be customised
Tape Width	15-25mm(other can customized )
Tape Reclosing accuracy	Deviation :0.5mm
Control Mode	Fully Digital Control
Power Supply	110/220VAC, 50/60Hz
Dimensions	L500mm X W650mm X H520mm
Weight	40kg
