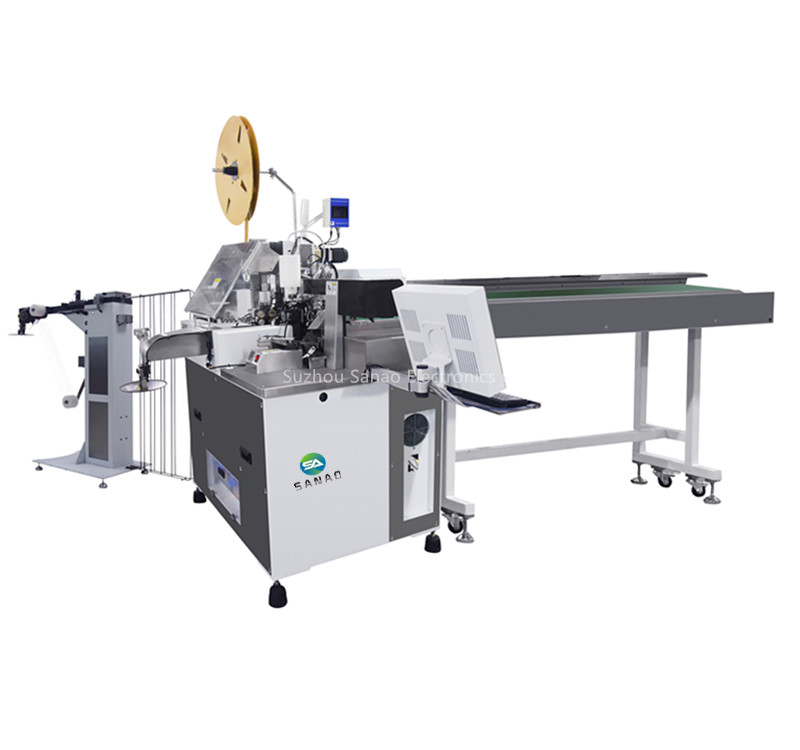

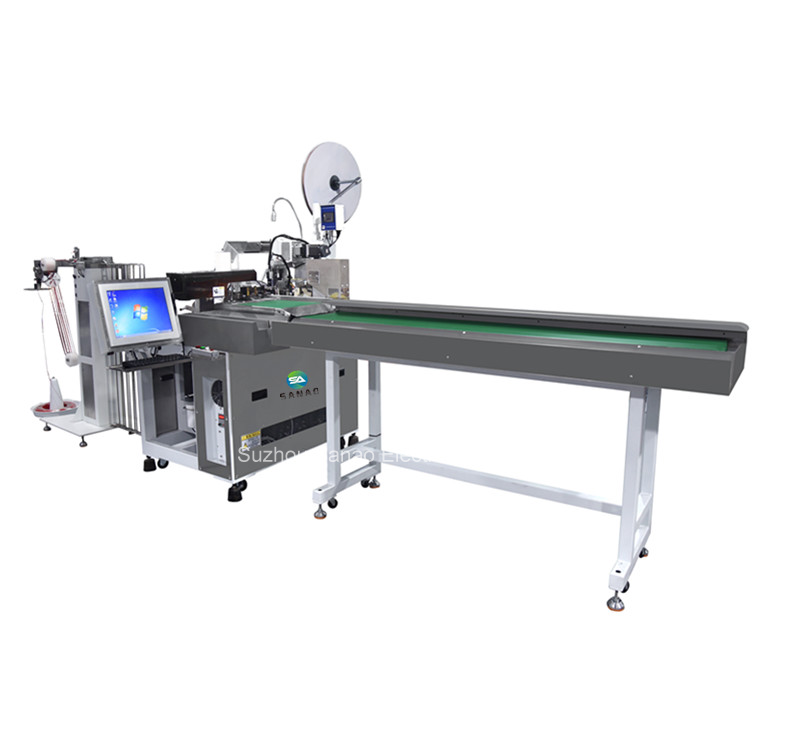

SA-FSZ332 is Fully automatic Wire Crimping Machine With Waterproof Sealing Station,two head stripping seal inserting crimping machine ,It adopts Mitsubishi servo that one machine total have 9 servo motors,so stripping, rubber seals inserting and crimping very accurate,Machine with English color screen is very easy operate,and the speed can reach 2000 pieces/hour.it’s Improved wire process speed and save labor cost.
Advantage :
1. Adopts Mitsubishi servo,Machine is stable and accurate
2. Adopt Japanese-made vibrator feeding system.
3. Equipped with a gravity-free synchronous pay-off rack.
4. Can be equipped with pressure monitoring system.
5. Can be equipped with D CCD imaging system.
6. Can be equipped with upper software operating system.
7. Equipped with a safety cover to avoid accidents when the machine is running.
|
Model Number |
SA-FSZ331 |
|
Usage |

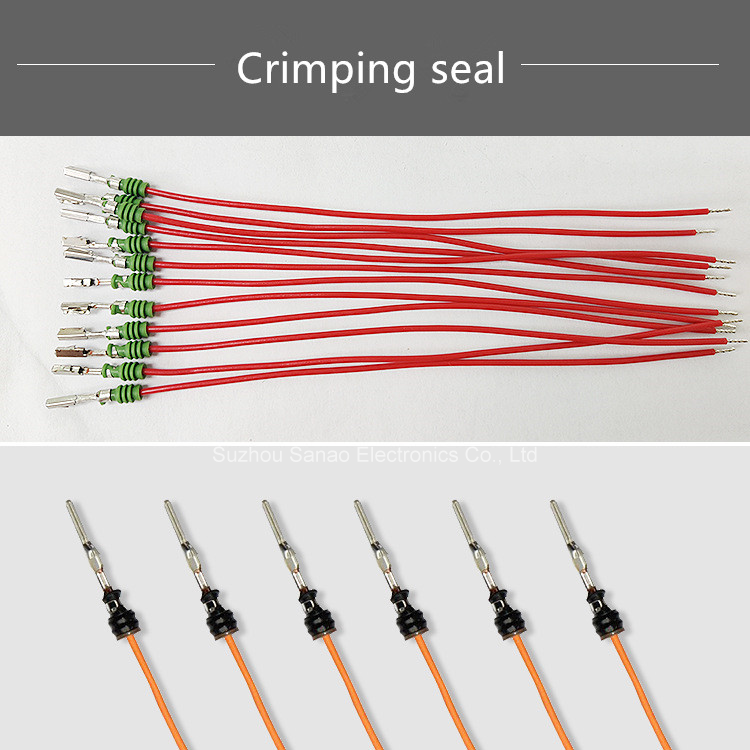

waterproof lug terminal inserting crimping |
|
Function |
Wire cutting striping crimping, wire seal plug insert |
|
Capability |
2000pcs/hour |
|
Wire size |
AWG28~16(0.08-1.25mm ²) |
|
Cut length |
30 ~9999mm |
|
Cut precision |
±0.1(0.1+0.005*L)mm |
|
Stripping length |
0~15mm |
|
Crimp capacity |
Inverter drive, AC motor |
|
Control method |
Inverter drive, AC motor |
|
Compressed air |
0.5Mpa |
|
Weight |
450kg |
