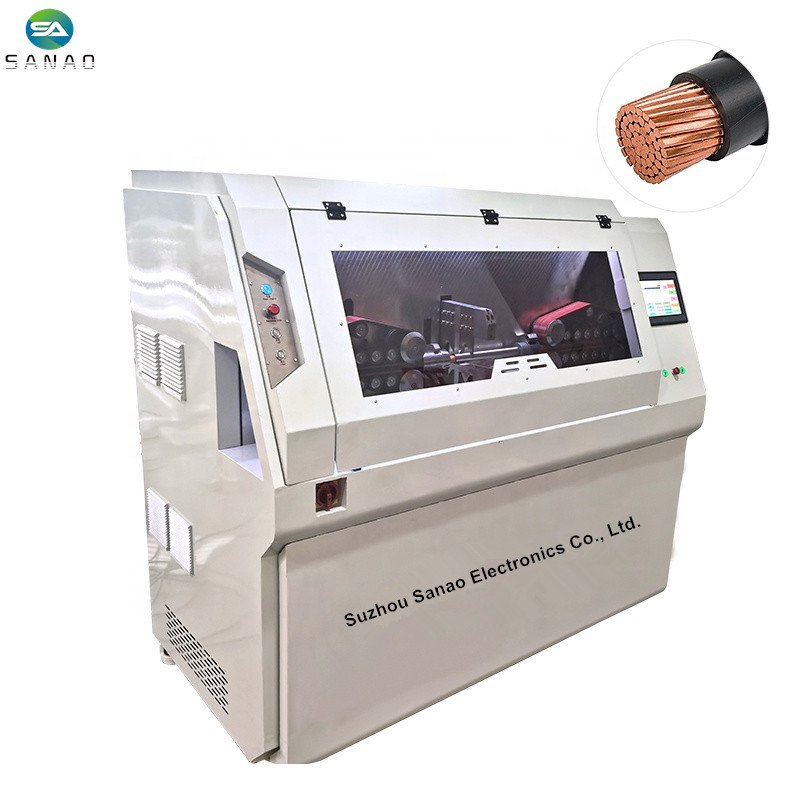

Max.300mm2 Automatic battery cable and heavy wire cut and strip machine
The series machines are designed for full-automatic cut and strip big size cable, like the automotive industry power cable, electric control cabinet, battery box cable, new energy vehicle wiring harness, high power supply shielding cable, charging pile harness. It's good for Silicone wire, high-temperature wire and signal wire, etc.
Introduction：
1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.
2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc
3.Easy to operate program with English display , stable quality with 1 year warranty and low maintenance,
4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.
5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.
Model
SA-HS300
Display mode
10-inch touch screen
Front stripping
Insulation: 1-1000mm
Back stripping
Insulation: 1-300mm
Conductor type
Cable PVC, guard cable. Etc.
Stripping range
30-300mm2
Cutting length
10mm-99999.99mm
Cutting tolerance
±0.002(L = cutting length)
Maximum diameter of conduit
Φ15-50mm
cutter material
High quality imported high speed steel
Productivity (per hour)
500-1000PCS/ hour
Driving mode
32-wheel drive (Each group of indepedent servo driver)
Feeding mode
Belt driving
Remarks
Special cable can be customized to send sample line test
