Automatic Pre-insulated Terminal Crimping Machine

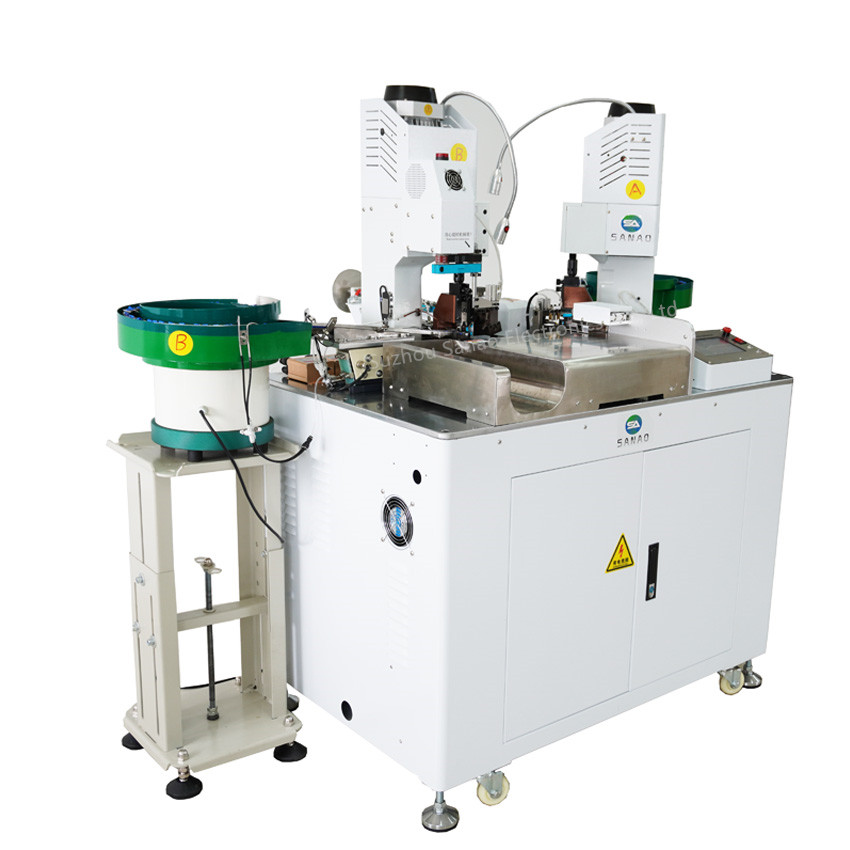

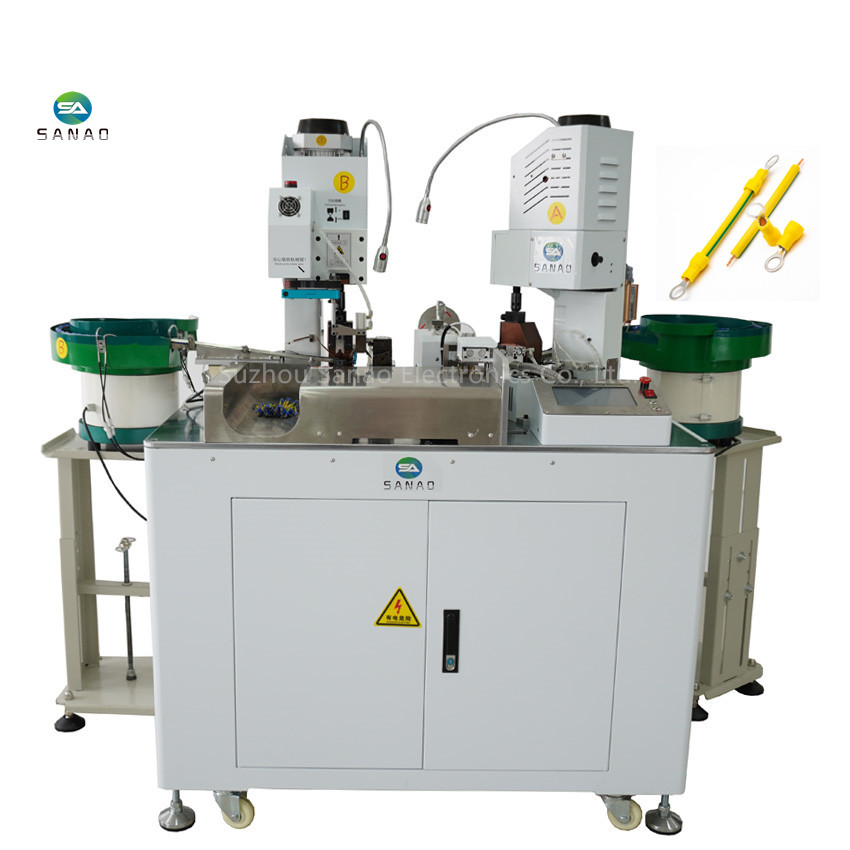

SA-ST100-PRE Automatic Pre-insulated Terminal Crimping Machine ,This series have two model one is one end crimping ,The other is two end crimping machine ,Automatic crimping machine for bulk insulated terminals.the machine is adopt vibration plate feeding,The terminals are automatically fed by the vibration plate,Effectively solved the problem of slow processing of loose terminals,This machine have twisting function which effectively prevent the reverse wire phenomenon.

Color touch screen operation interface , parameter setting is intuitive and easy to understand , parameters such as cutting length , stripping length , twisting force , and crimping position can be directly setting one display . Machine can save program for different products, Next time ,directly choose the program directly to produce.

Pressure detection is an optional item, real-time monitoring of each crimping process pressure curve changes, if the pressure is not normal, it will automatically alarm and stop, strict control of production line production quality. When processing long wires, you can choose a conveyor belt, and put the processed wires straight and neatly into the receiving tray.

Advantage
1: Different terminals only need to replace the applicator, This is easy to operate,and multi-purpose machine.
2: Advanced software and English colour touch screen make it easy to operate. All parameters can be directly set on our machine
3: The machine has a programme saving function,simplifying the operation process.
4 .4 wheel feeding motor is adopted to avoid wire different length feeding and hurt.
5: The crimping position adopts mute terminal machine, with low noise and uniform force. It can be equipped with horizontal applicator, vertical applicator and flag applicator.
