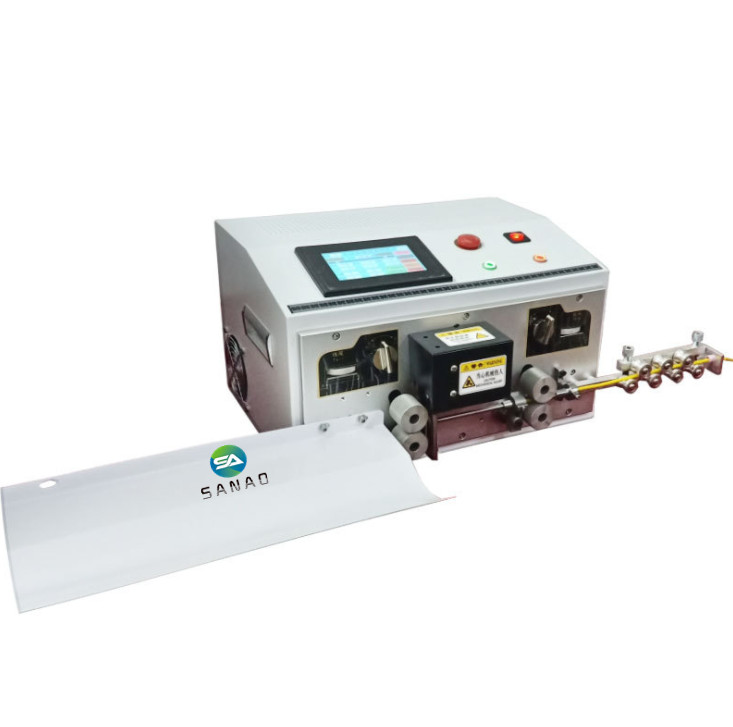

Processing wire range:10 mm sheathed wire cutting and stripping machine for outer jacket,Full automatic stripping and cutting double end at one time ,It’s Greatly Improved stripping speed and save labour cost.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy.
Introduction:
1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.

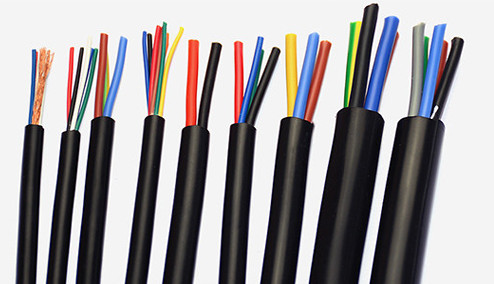

2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc
3.Easy to operate program with English display , stable quality with 1 year warranty and low maintenance,
4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.
5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.
Model
SA-H510
SA-H516
Conductor Cross-Section
Sheathed wire : 10mm , BRV 0.1-10mm²
Sheathed wire : 12mm , BRV 0.1-16mm²
Cutting Length
1-9999MM
1-9999MM
Cutting Length Tolerances
± (0.0001xL )mm
± (0.0001xL )mm
Stripping Length
Head length :0-150mm
Tail length :0-100mm
Head length :0-150mm
Tail length :0-100mm
Intermediate Stripping
Max 15 sections
Max 15sections
Conduit Diameter
4 6 8 9 10MM
4 6 8 9 10MM
Production Rate
L=100mm,
L=100mm,
Drive Method
4 wheels drive
4 wheels drive
3000-4000pcs/h
2000-3000pcs/h
