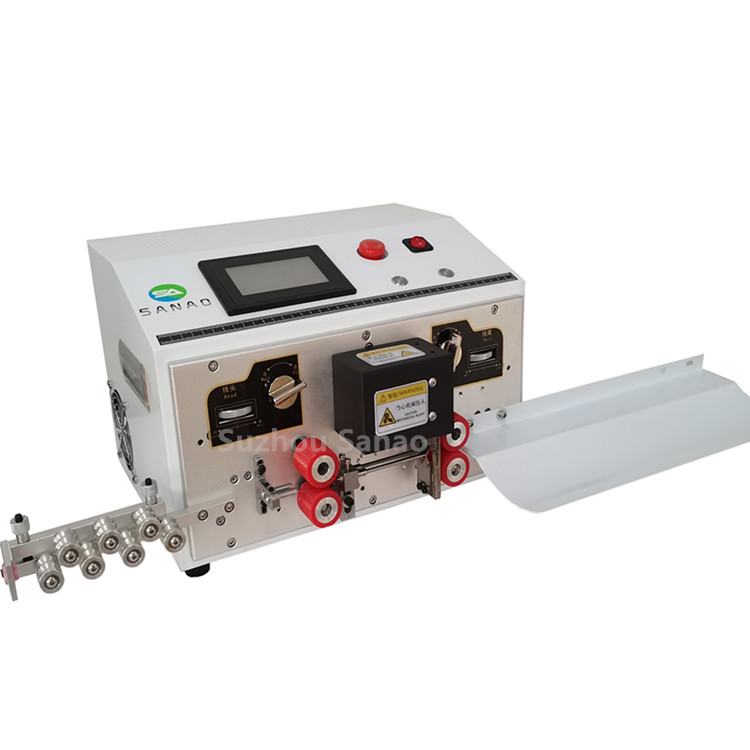

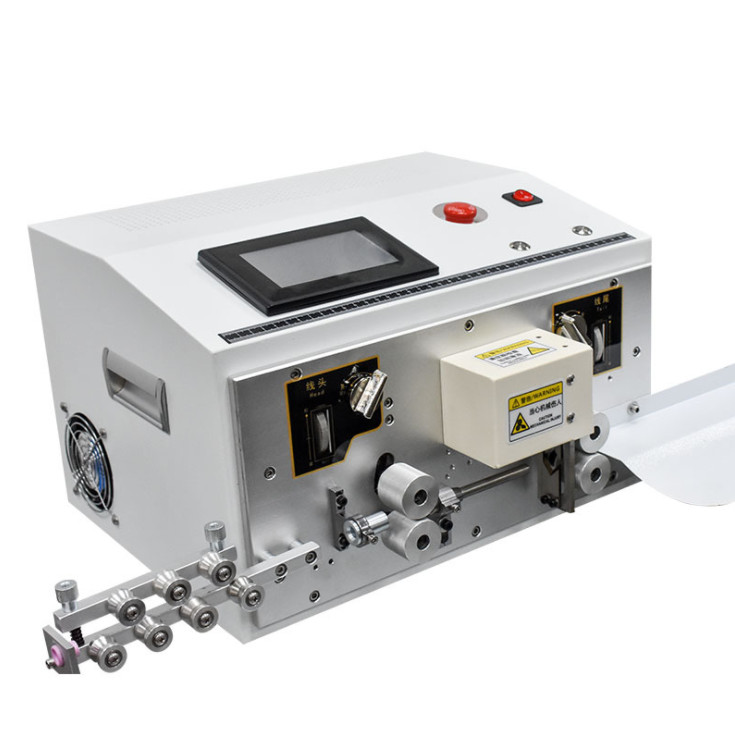

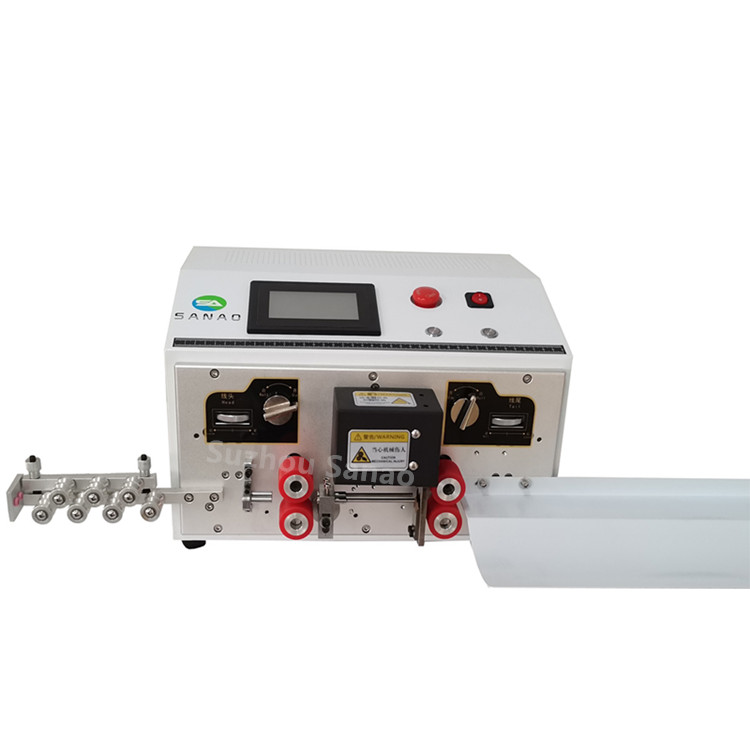

Full automatic Large single cable stripping cutting machine.
Processing wire range: 0.1-16mm² full automatic stripping and cutting machine for large cable, or stripping outer jacketed of sheathed cable(Max. 7 core) ,It’s Greatly Improved stripping speed and save labour cost.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy.
Introduction:
1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.
2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc
3.Easy to operate program with English display , stable quality with 1 year warranty and low maintenance,
4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.
5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.
Model
SA-F410
SA-F416
SA-F425
Conductor Cross-Section
0.1-10mm²
0.1-16mm²
0.1-25mm²
Cutting Length
1-9999MM
1-9999MM
1-9999MM
Cutting Length Tolerances
(0.0001*L)mm
± (0.0001xL )mm
± (0.0001xL )mm
Stripping Length
Head length :25 mm
Tail length :25 mm
Head length :0-25mm
Tail length :0-25mm
Head length :0-25mm
Tail length :0-25mm
Intermediate Stripping
Max 15 sections
Max 15 sections
Max 15sections
Conduit Diameter
4 6 8 9 10MM
4 6 8 9 10MM
4 6 8 9 10MM
Production Rate
L=100mm,
L=100mm,
L=100mm,
Drive Method
4 wheels drive
4 wheels drive
4 wheels drive
4000-5000pcs/h
3000-4000pcs/h
2000-3000pcs/h
