Automatic tube cut machine

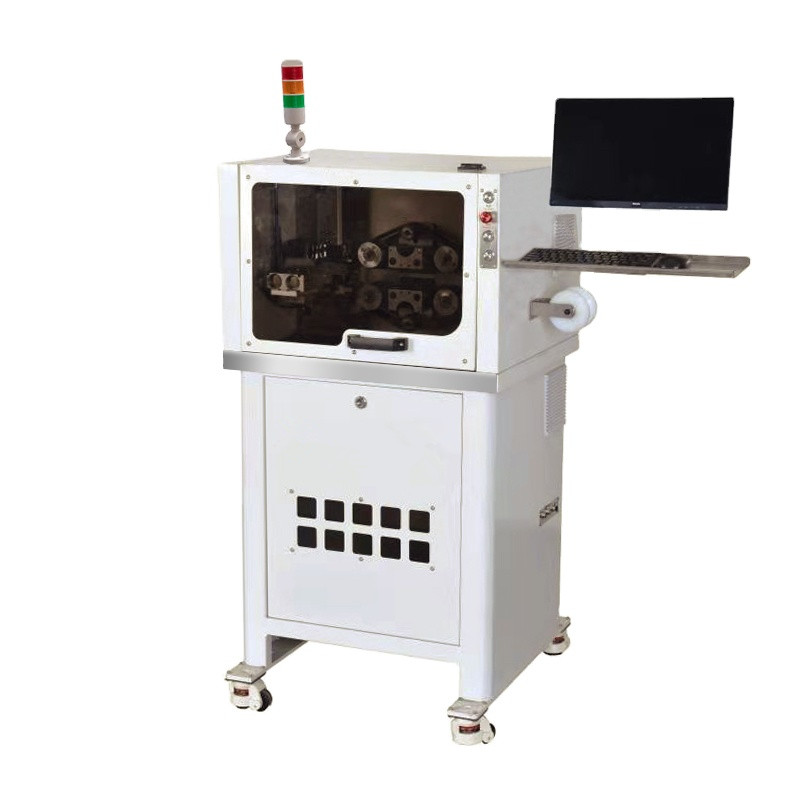

Highly-precise visual positioning Medical Corrugated Tube cutting machine

Highly-precise visual positioning Medical Corrugated Tube cutting machine

Model : SA-1050S
Description: SA-1050S Highly-precise visual positioning Medical Corrugated Tube cutting machine ,adopt special visual camera positioning cutting type ,let irregular pipe cutting become easy with high accurate,It is widely used for Medical Corrugated Tube.
INQUIRY EMAIL

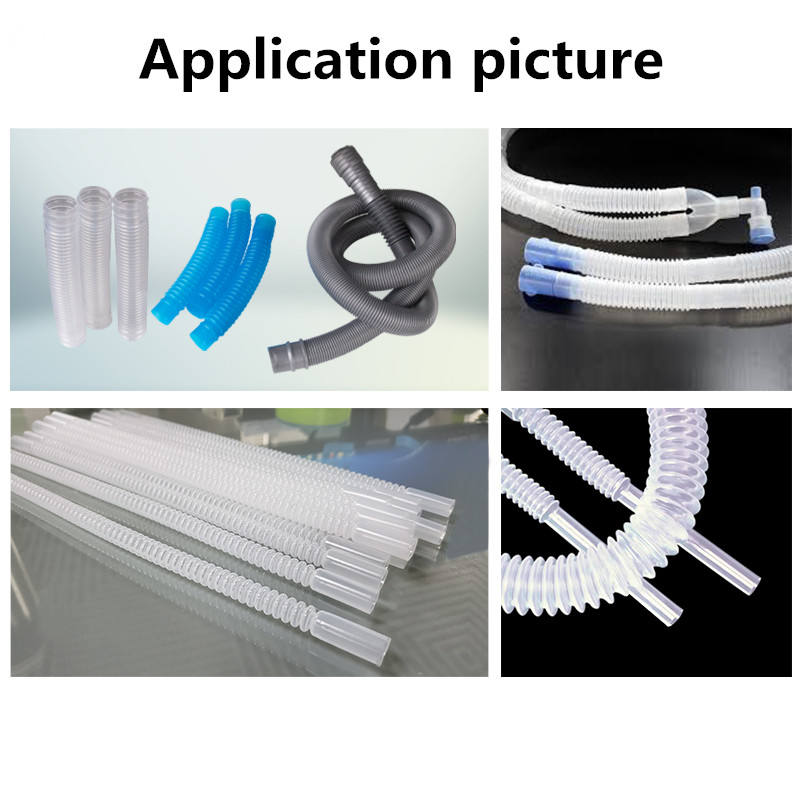

High precision corrugated tubing cutting machine that is design for irregular pipe cutting machine ,adopt special visual camera positioning cutting type ,let irregular pipe cutting because easy with high accurate, so It’s popular with customer because of perfect cutting effect(cutting clean without burrs) ,It is widely used for cutting shield hose, steel hose, metal hose, corrugated hose , plastic hose，PA PP PE Flexible Corrugated Pipe

Features:
1.Specially designed for the pvc pipe processing of the automotive wire harness industry, high-precision PLC control, easy to understand.
2.Can be used for round plastic round tube, bellows cutting, high processing efficiency, stable and reliable.
3.Feeding with stepper motor, it has the characteristics of stable feeding and accurate length. The circuit uses integrated circuits for stable control and simple maintenance.

4.It's widely used in Highways,Bridges,Railways, Lightrail,Car, Transportation,Electrical,Monitoring equipment,Underground cable protection,Connect machine controls,All area of protection for insulated electrical cables and wires,ect.

Model	SA-1050S
Applicable material	Medical tube and various industrial tubes
Material outer diameter	5 - 50 mm
Cutting length	1 - 99,999.9 mm
Cutting position tolerance	< 0.2 mm
Feeding mode	By belts
Control mode	PLC
Productivity	600 - 1000 pcs./h (depending on cutting length)
Compressed air connection	0.5 - 0.7 MPa
