Processing wire range: 0.1-8 mm²,Full automatic cut length and stripping both end,Widely used in wire harness processing industry for automotive electrical appliances, instrumentation,lamps, household appliances etc,It’s Greatly Improved stripping speed and save labour cost
Introduction:

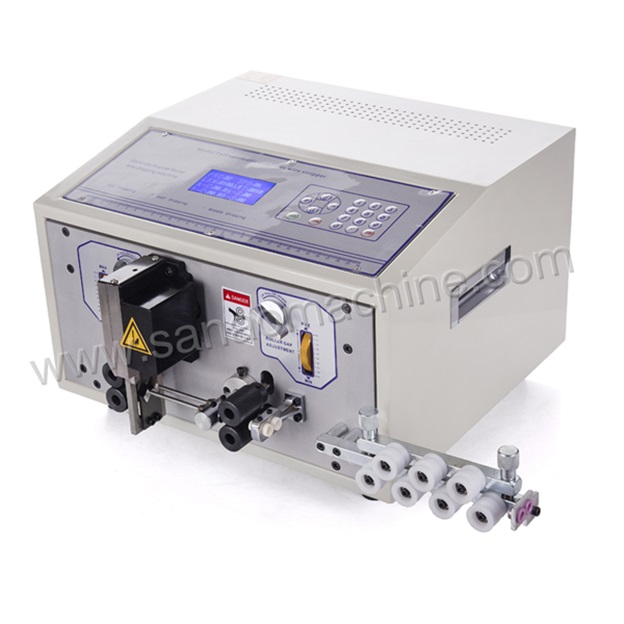

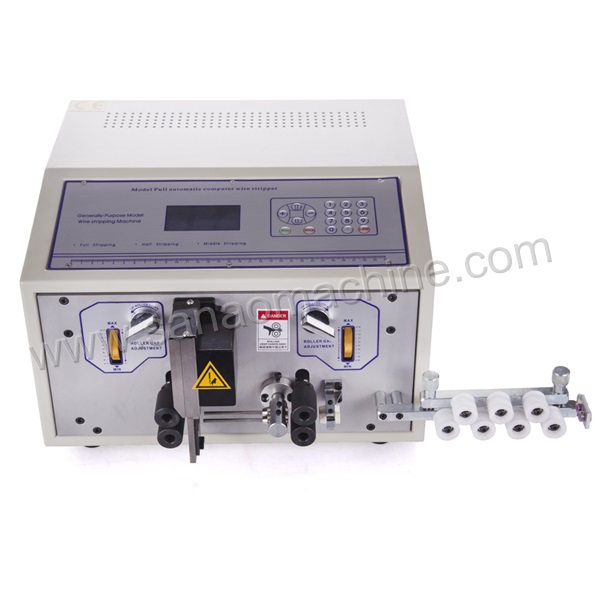

1. It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.

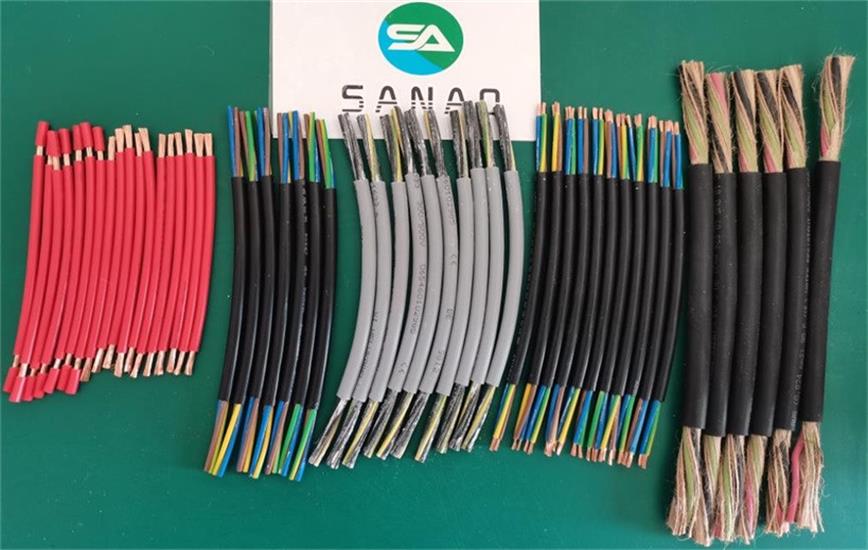

2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc
3.Easy to operate program with English display , stable quality with 1 year warranty and low maintenance,
4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.
5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.
|
Model |
SA-208C |
SA-208SD |
SA-208E |
|
Conductor Cross-Section |
0.1-2.5mm² |
0.1-4.5mm² |
0.1-8mm² |
|
Stripping Length |
Head stripping length :0-35mm Tail stripping length :0-15mm |
Head stripping length :0-35mm Tail stripping length :0-15mm |
Head stripping length :0-35mm Tail stripping length :0-15mm |
|
Cutting Length |
1-9999mm |
1-9999mm |
1-9999mm |
|
Cutting Length Tolerances |
≤ (0.002*L)mm |
≤ (0.002*L)mm |
≤ (0.002*L)mm |
|
Intermediate Stripping |
Max 11 sections |
Max 11 sections |
Max 11 sections |
|
Conduit Diameter |
Φ6mm |
Φ6mm |
Φ10 mm |
|
Display Screen |
Chinese / English LCD Screen |
||
|
Production Rate |
3000-8000pcs/h |
3000-8000pcs/h |
3000-5000pcs/h |
|
Drive Method |
2 wheels drive |
4 wheels drive |
4 wheels drive |
|
Power |
160W |
200W |
200W |
|
Power Supply |
110/220VAC, 50/60Hz |
||
