Automatic tube cut machine

45° angle tube cutting machine custom made blades

45° angle tube cutting machine custom made blades

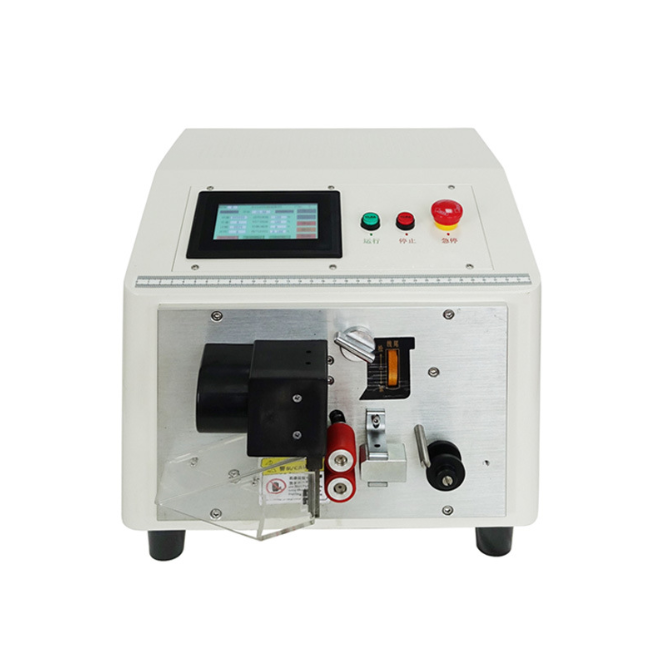

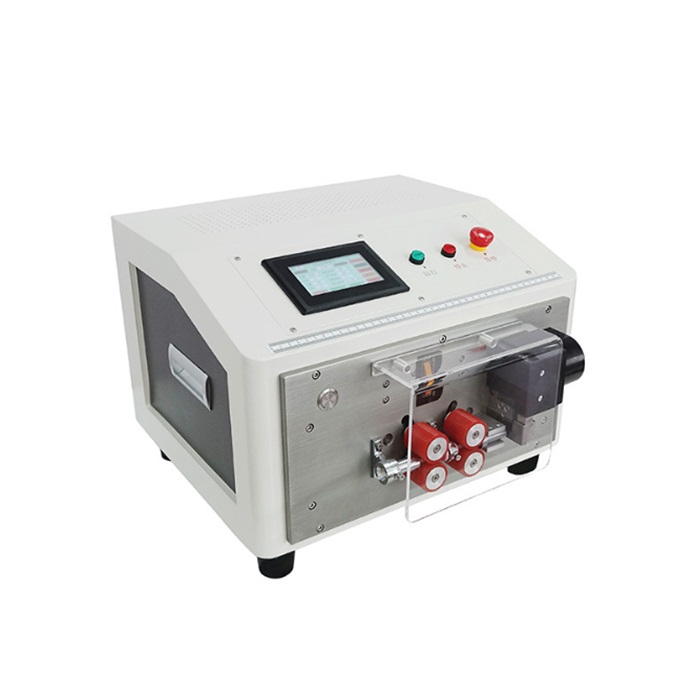

Model:SA-3120
Description: A versatile and reliable cutting machine for cutting to length of heat shrink tubes, fiberglass tubes,tubes, silicone tubes,yellow wax tubes, PVC tubes, PE tubes, plastic tubes, rubber hoses, wire ropes etc
INQUIRY EMAIL

A versatile and reliable cutting machine for cutting to length of heat shrink tubes, fiberglass tubes,tubes, silicone tubes,yellow wax tubes, PVC tubes, PE tubes, plastic tubes, rubber hoses, wire ropes etc

1.Cutting corrugated tubes, rubber tubes and other tubes;

2.Featuring splitting ability; 3.Efficient, stable and durable;

4.Easy to understand PLC touch screen control;

5.Stepper motor control with stable feed and precise length.

Model	SA-3020	SA-3120
Feature	Precise cut	Precise cut
Available Diameter	1-6mm	1-12mm
Cutting Length	0.1-9999mm	0.1-9999mm
Cutting Length Increment	0.1mm	0.1mm
Cutting Length Tolerance	0.002 x L	0.002 x L
Production Rate	10000-30000pcs/h	10000-30000pcs/h
Display	Color touch screen, bilingual	Color touch screen, bilingual
Memory Capacity	100 programs	100 programs
Rated Power	220W	220W
Power Supply	AC 220V/110v, 50/60Hz	AC 220V/110v, 50/60Hz
